D-Link DES-105 kovový 5-port 10/100 Desktop Switch

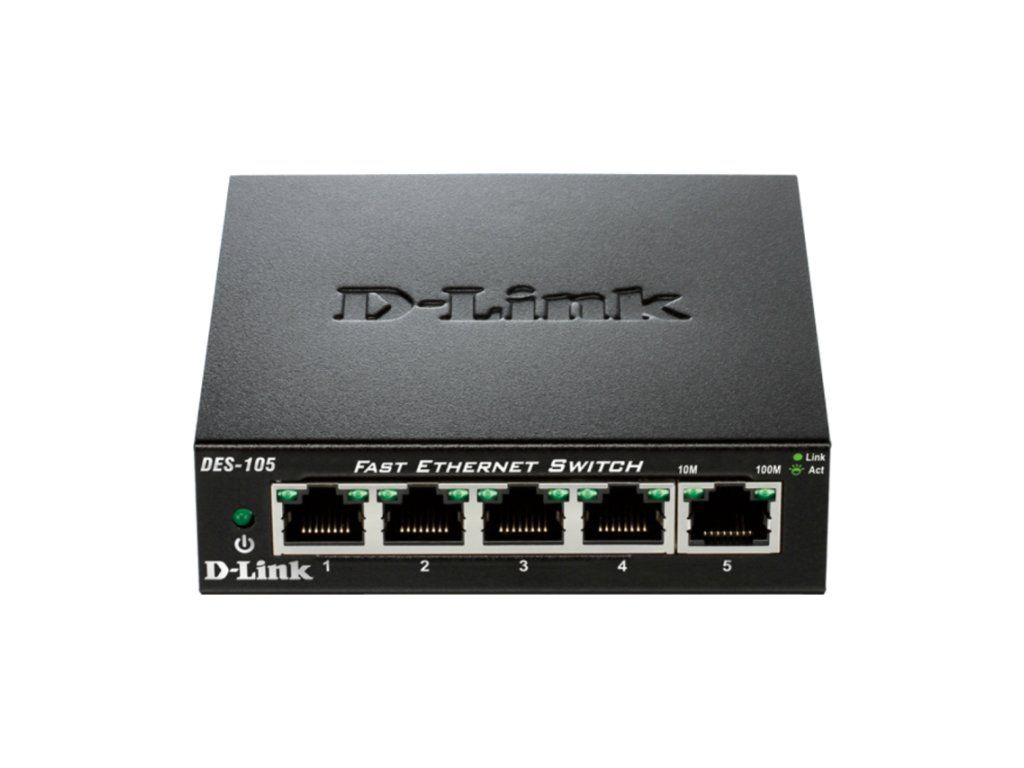

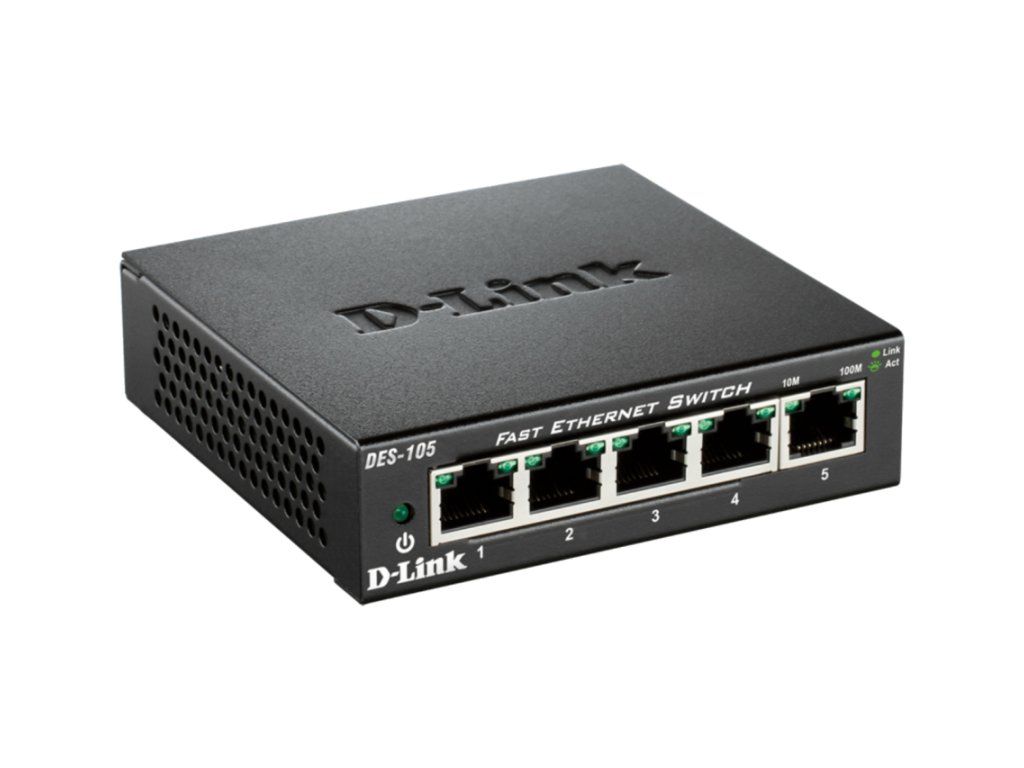

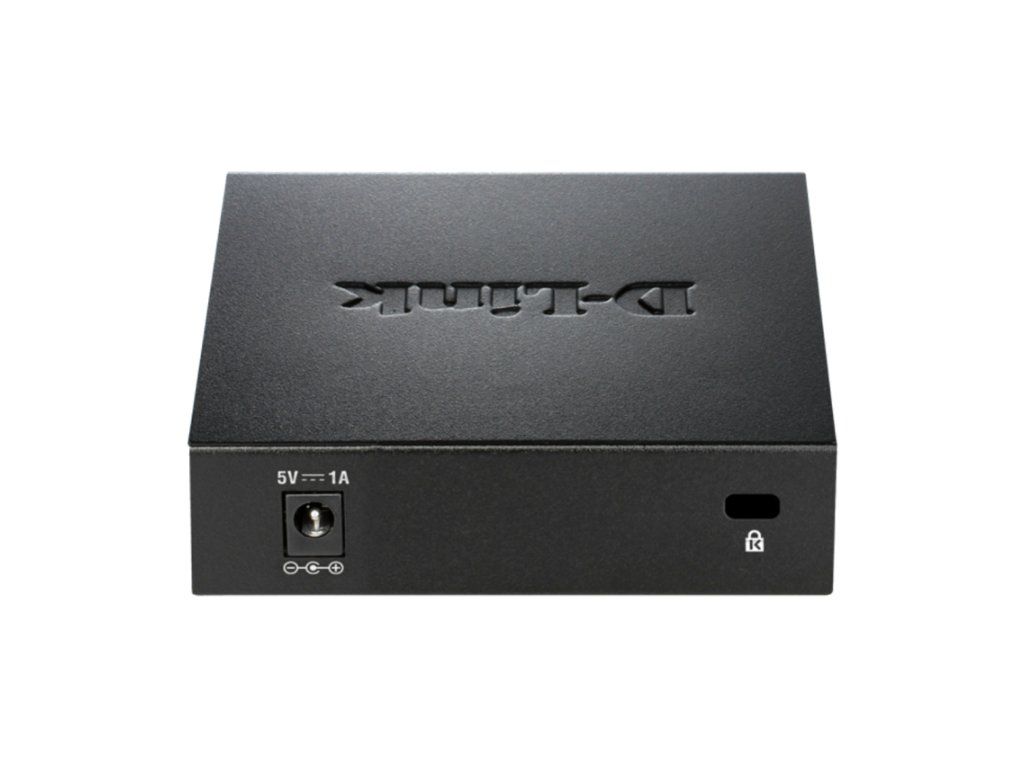

D-Link DES-105 5-port Fast Ethernet Switch

OVERVIEW D-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.

FEATURES • Plug and Play operation • 5 Fast Ethernet ports • Non-blocking architecture: simultaneous full speed on all ports • Fanless, silent operation to fit in any environment • Quality of Service (QoS) queues for traffic prioritisation • Solidly built with metal housing • D-Link Green™ technology, saves energy and increases the product’s lifespan

SPECIFICATIONS Standards • IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x flow control • IEEE 802.3az Energy Efficient Ethernet (EEE) Layer2 Features • MAC address table: 2K • Auto MDI/MDIX crossover for all ports • Store-and-forward switching scheme • Full/half-duplex for Ethernet/Fast Ethernet speeds • Jumbo Frames: 2047 Bytes Switching fabric • 1.0 Gbps Data Transfer Rates • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port RAM Buffer • 384 KB LED Indicators • Per port: Link/Activity • Per device: Power Quality of Service (QoS) • Supports 802.1p QoS • 2 Queues, Strict Mode Green features • Energy Efficient Ethernet (EEE) standard • RoHS compliant Power • External 5 V/1 A Level “V” Power Adapter Power Consumption (DC input) • Standby: 0.35 W. • Maximum: 1.9 W. MTBF • 495,709 hours Temperature • Operating: 0 to 50 °C • Storage: -10 to 70 °C Humidity • Operating: 10% to 90% RH non-condensing • Storage: 5% to 90% RH non-condensing Dimensions (W x D x H) • 100 x 98 x 28 mm Certifications • FCC Class B • ICES-003 Class B • CE Class B • C-Tick Class B • VCCI Class B • cUL • CB
