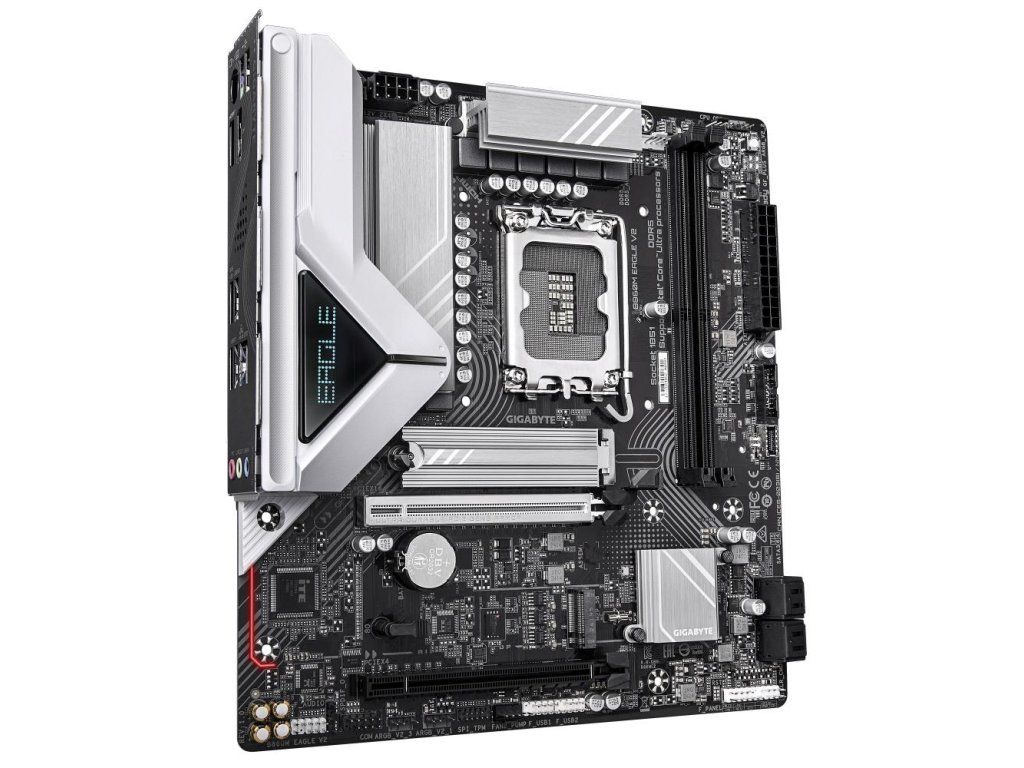

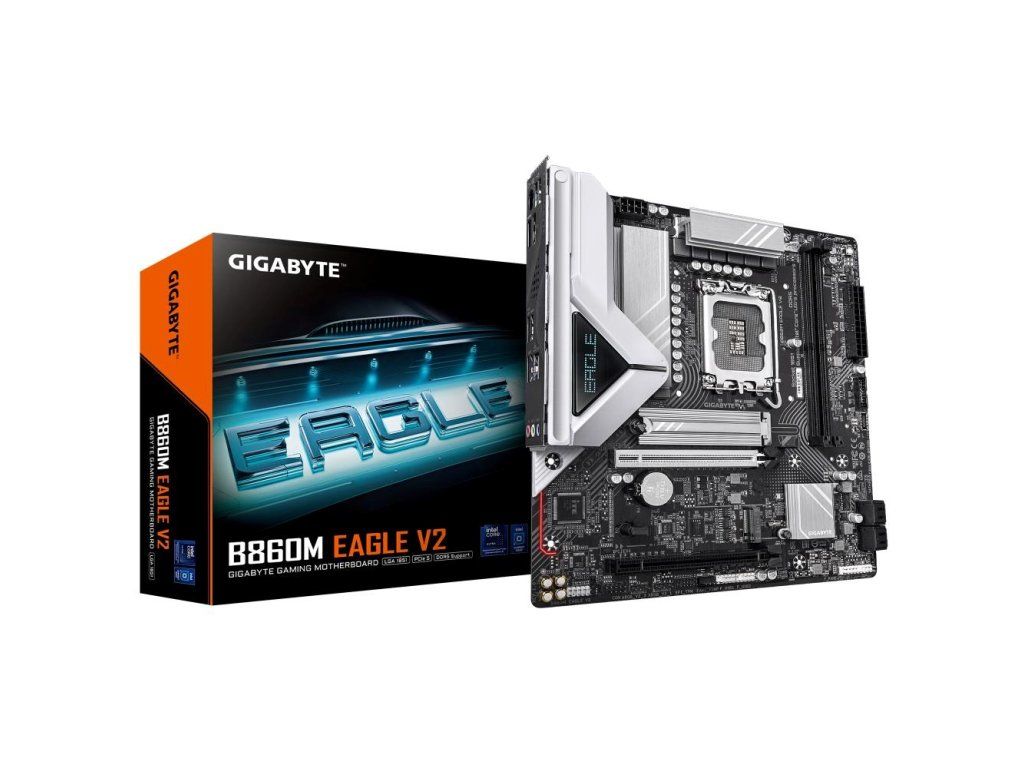

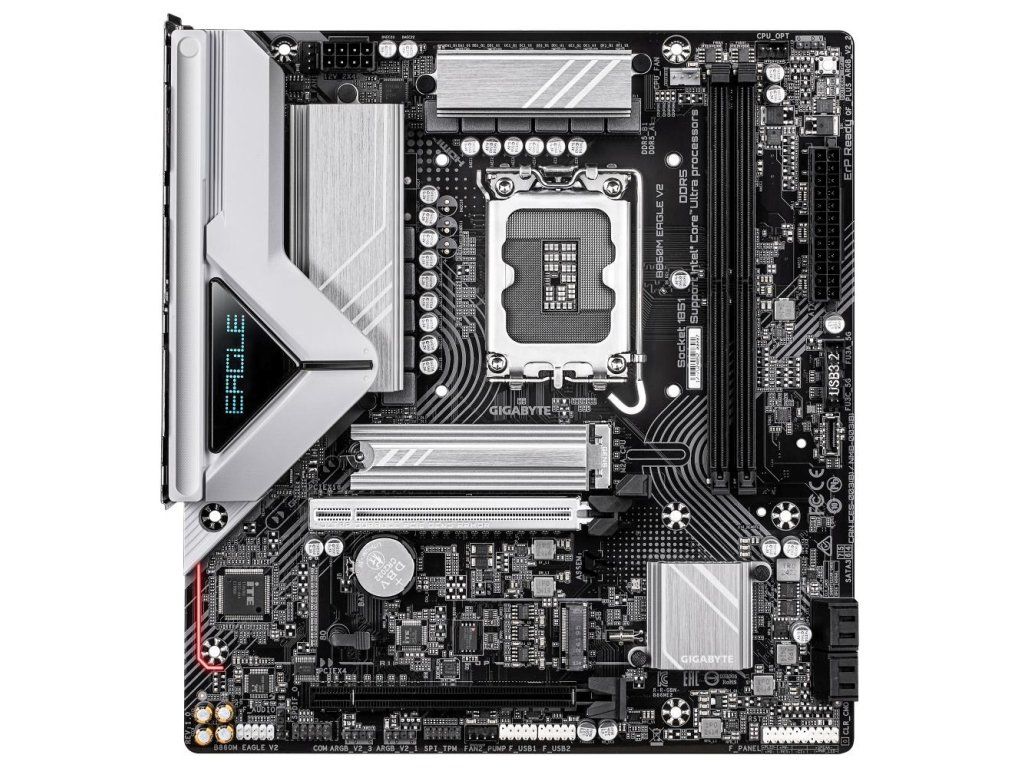

Gigabyte B860 EAGLE V2, LGA 1851, mATX

Podrobný popis

GIGABYTE B860M EAGLE V2

Chipset: Intel B860 Express Chipset

Rozměrový formát: Micro ATX Form Factor, 24.4cm x 22.5cm

Podpora pro procesory: Intel ® Core™ Ultra

Patice procesoru: LGA1851

Paměť: * 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory *Dual channel memory architecture *Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Support for Extreme Memory Profile (XMP) memory modules

Grafické výstupy: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3 * 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version

Zvuková karta: *Realtek® Audio CODEC *High Definition Audio *2/4/5.1/7.1-channel *Support for S/PDIF Out

Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozšiřující sloty: * 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Úložný prostor: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) * 4 x SATA 6Gb/s connectors

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB: * 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header * 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) * 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: * 4 x USB 2.0/1.1 ports available through the internal USB headers

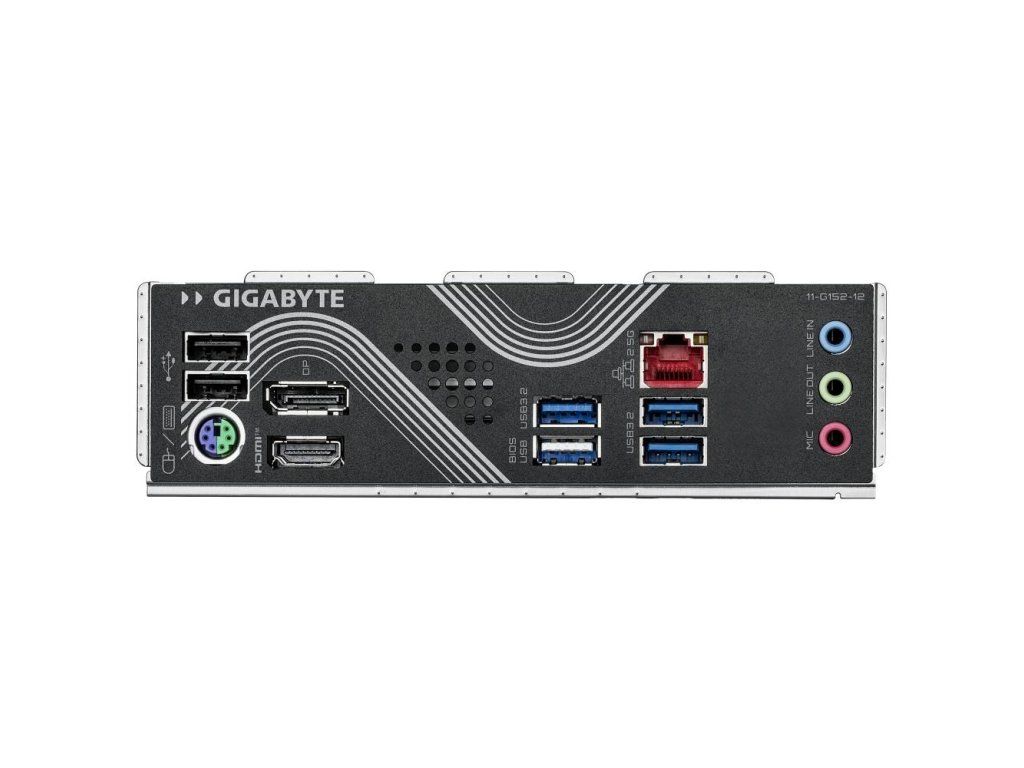

Porty na zadním panelu: * 1 x PS/2 keyboard/mouse port *1 x HDMI por* *1 x DisplayPort* *3 x USB 3.2 Gen 1 ports *3 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks

Interní porty: Napájení * 1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector Související s ventilátorem a chlazením * 1 x CPU fan header *1 x CPU fan/water cooling pump header *1 x system fan header *1 x system fan/water cooling pump header Související s úložištěm * 2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors USB * 1 x USB Type-C® header, with USB 3.2 Gen 1 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers Ostatní * 3 x addressable RGB Gen2 LED strip headers *1 x front panel header *1 x front panel audio header *1 x S/PDIF Out header *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) *1 x serial port header *1 x Q-Flash Plus button *1 x reset jumper *1 x Clear CMOS jumper

BIOS: *1 x 256 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
