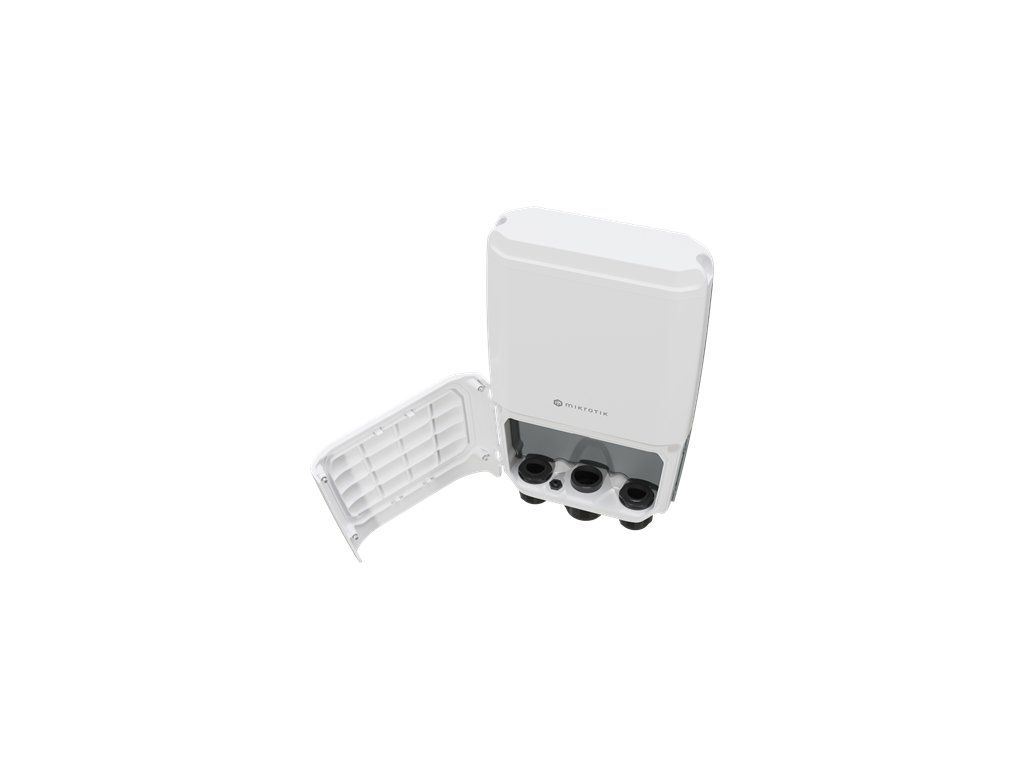

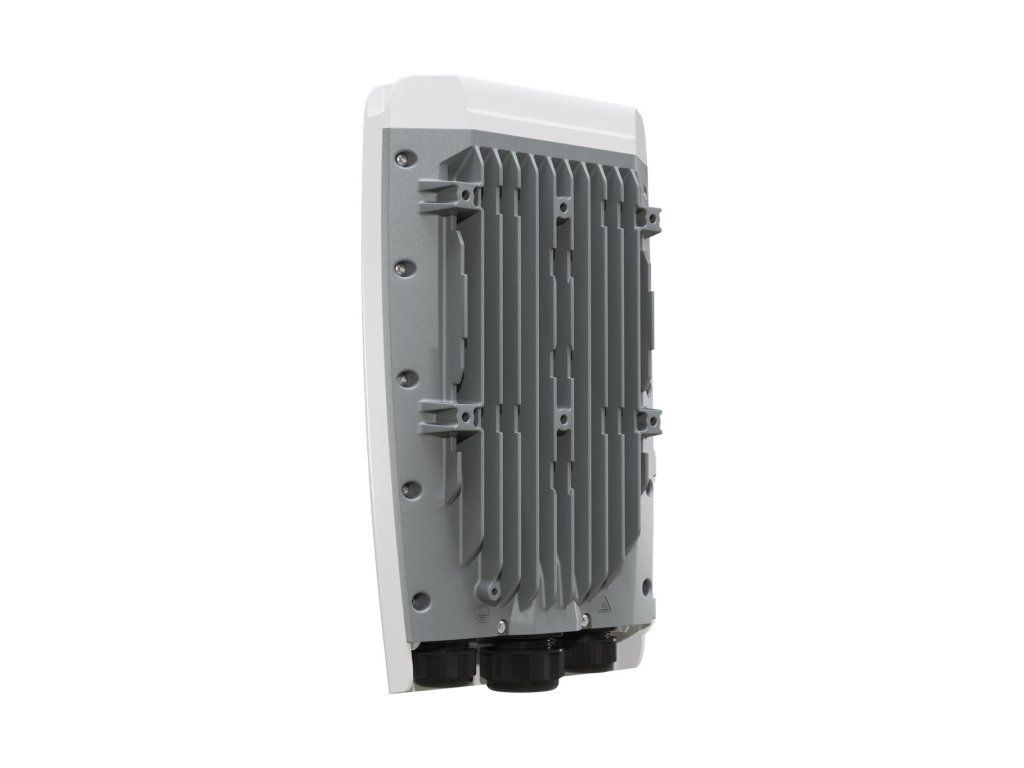

MIKROTIK RouterBOARD Cloud Router Switch CRS504-4XQ-OUT + L5 (650MHz; 64MB RAM; 1x LAN; 4x QSFP28, Dual PSU) desktop
Kód: CRS504-4XQ-OUT
Cez 3000 výdajných miest
po celom Slovensku
Doručenie do druhého dňa
na akúkoľvek adresu
Podrobný popis
tabulka datové propustnosti
Specifications
| Details | |
|---|---|
| Product code | CRS504-4XQ-OUT |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | 98DX4310 |
| RouterOS license | 5 |
| Operating System | RouterOS v7, License level 5 |
| Size of RAM | 128 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 36-57 V |
| 2-pin terminal input Voltage | 36-57 V |
| Max power consumption | 38 W |
| Max power consumption without attachments | 25 W |
| Cooling type | Passive |
| PoE in | 802.3 bt |
| PoE in input Voltage | 43-57 V |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| Number of 100G QSFP28 ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 66 |
Dodatočné parametre
| Kategória: | Prepínače |
|---|---|
| Záruka: | 5 rokov |
| Hmotnosť: | 2.8 kg |
| EAN: | 4752224007391 |
