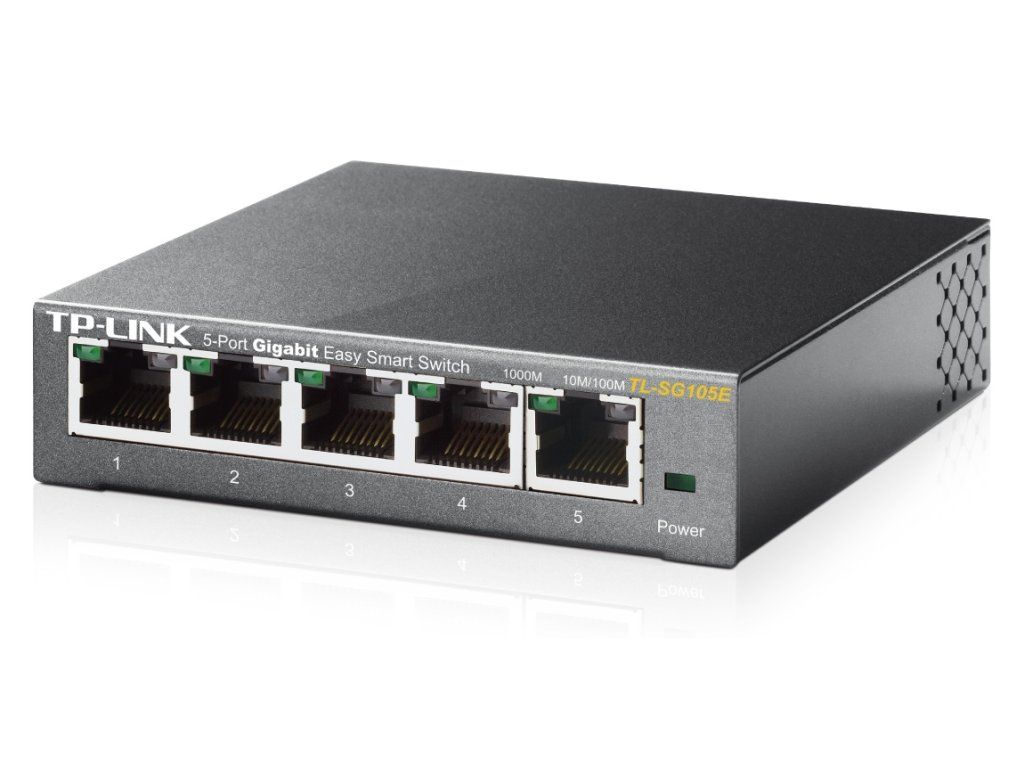

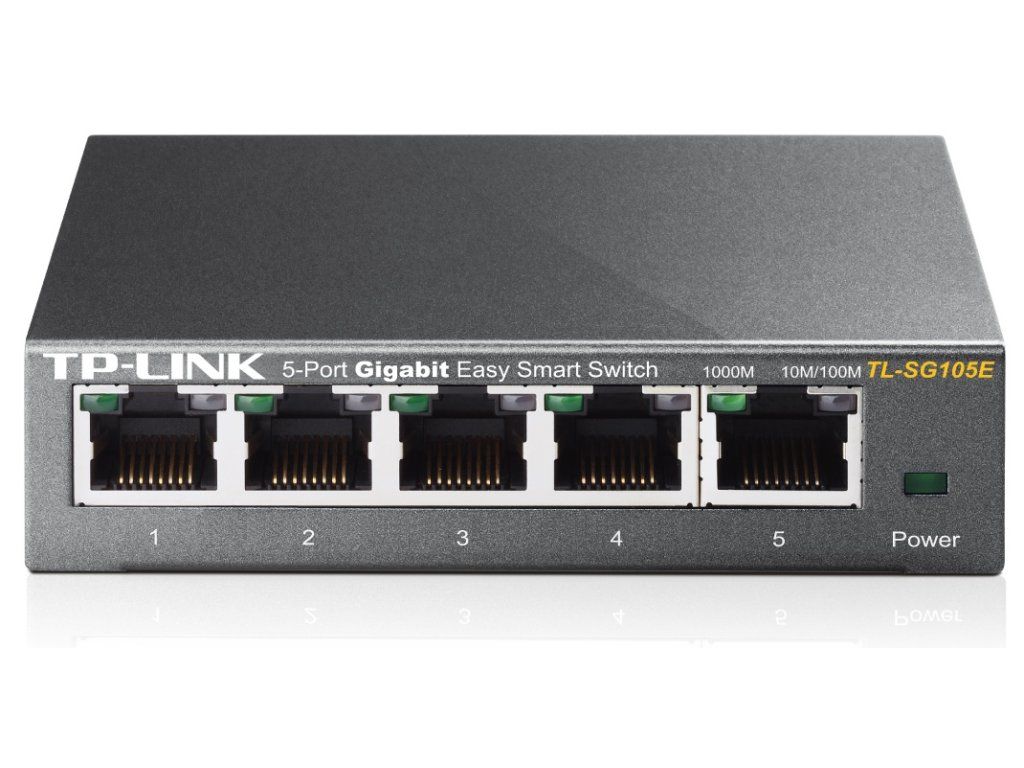

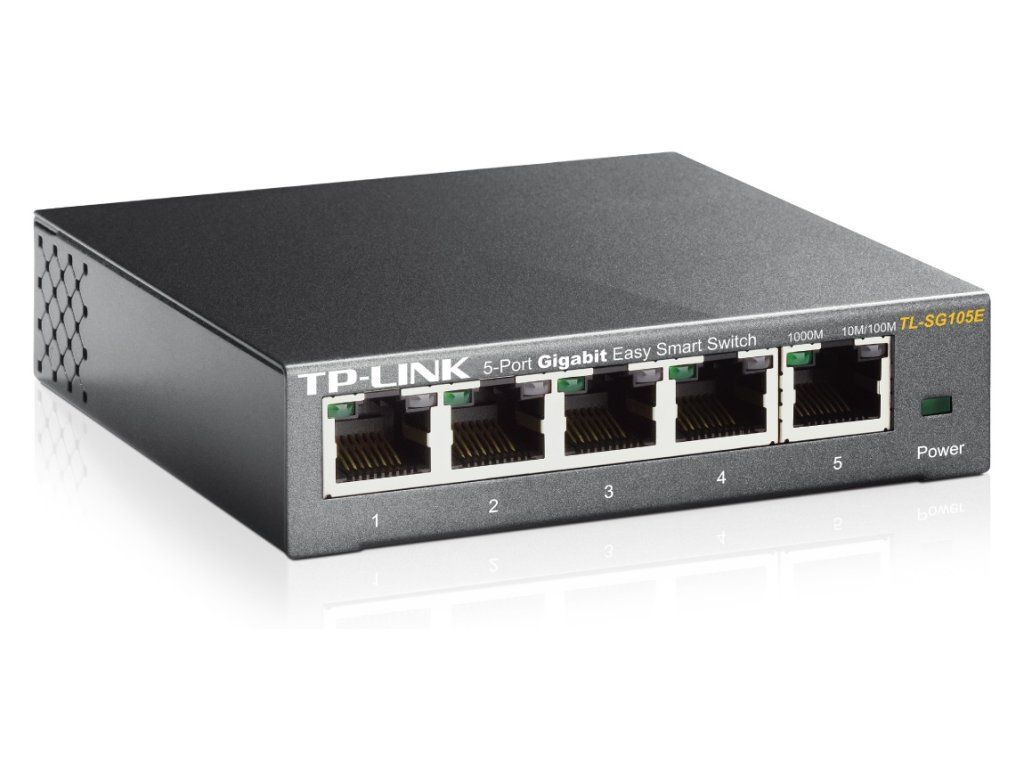

TP-Link TL-SG105E 5-port Gigabit Easy Smart Switch

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch

OVERVIEW * 5 10/100/1000Mbps RJ45 ports * Provides network monitoring, traffic prioritization and VLAN features * Innovative energy-efficient technology reduces power output by up to 75% * Simple network set-up on top of plug-and-play connectivity * Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

SPECIFICATIONS HARDWARE FEATURES Standards and Protocols * IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface * 5 10/100/1000Mbps RJ45 Ports * AUTO Negotiation/AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) * EIA/TIA-568 100? STP (maximum 100m) * 100BASE-TX: UTP category 5, 5e cable (maximum 100m) * EIA/TIA-568 100? STP (maximum 100m) * 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) * EIA/TIA-568 100? STP (maximum 100m) Dimensions (W X D X H) * 100 * 98 *25 mm Fan Quantity * Fanless Power Supply * 100-240VAC, 50/60Hz * PERFORMANCE MAC Address Table * 8K Packet Buffer Memory * 2Mb Packet Forwarding Rate * 7.4Mpps Jumbo Frame * 16KB SOFTWARE FEATURES Quality of Service * Support Port Based/802.1p Based priority * Support 4 priority queues * Rate Limit * Storm Control L2 Features * IGMP Snooping * Link Aggregation * Port Mirroring * Cable Diagnostics * Loop Prevention VLAN * Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) * MTU/Port/Tag VLAN Transmission Method * Store-And-Forward OTHERS Certification * FCC, CE, RoHS Package Contents * TL-SG105E * Power Cord * Installation Guide * Resource CD * Rubber Feet System Requirements * Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. Environment * Operating Temperature: 0°,C~40°,C * Storage Temperature: -40°,C~70°,C * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~90% non-condensing
