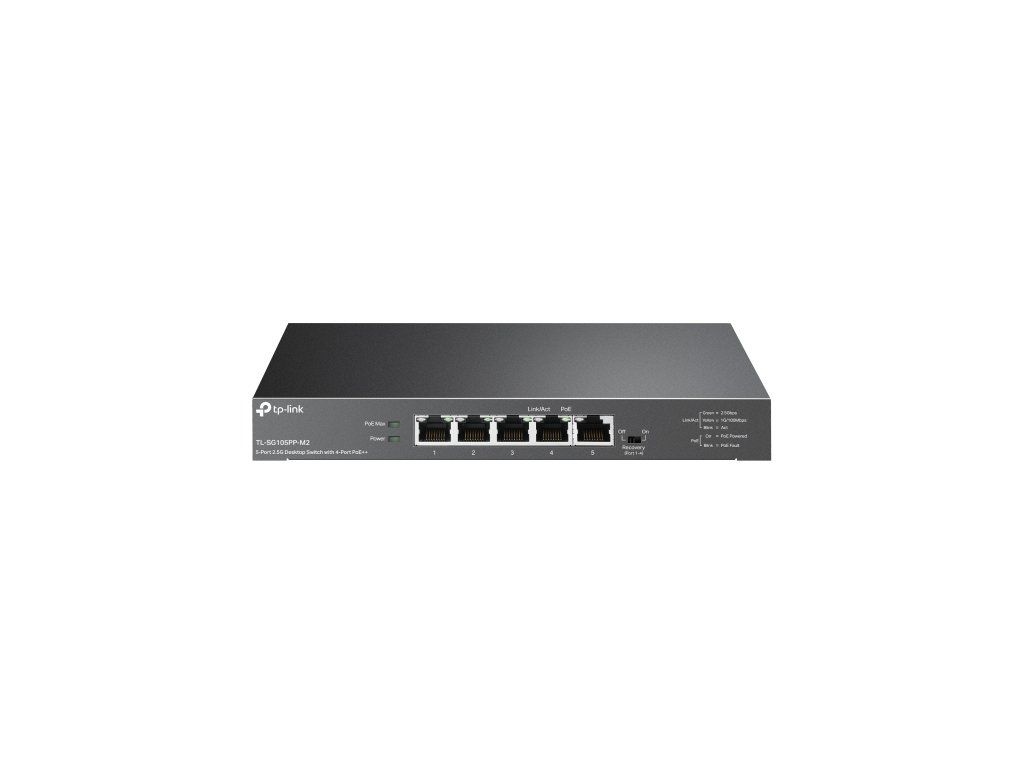

TP-Link TL-SG105PP-M2 5x2,5Gb (4xPOE++) Desktop Switch

TL-SG105PP-M2

5portový 2.5G stolný switch so 4 portami PoE++

5x 2,5 Gbit/s RJ45 porty s podporou rýchlosťou 10 Mbit/s, 100 Mbit/s, 1 Gb/s a 2,5 Gb/s

4 porty PoE++ prenáša dáta a napájanie spoločne po jedinom kábli

Pracuje s IEEE 802.3af/at/bt Type 3 kompatibilnými PD zariadeniami

802.1p/DSCP QoS umožňuje hladkú prevádzku dát citlivých na latenciu.

Podporuje výkon PoE až 60 W na každý PoE++ port

Podporuje celkový PoE výkon až 123 W na všetky POE porty*

Funkcia automatického obnovenia PoE garantuje stabilnú prevádzku PoE zariadenia automatickým reštartom vypadnutých alebo nereagujúcich PD zariadení

Plug and Play, bez potreby konfigurácie a inštalácie



HARDWARE FEATURES

Interface • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)

Packet Forwarding Rate 18.6 Mpps

PoE Ports (RJ45) • Standard: 802.3 af/at/bt type3 compliant

• PoE++ Ports: Ports 1–4

• Power Supply: 123 W

Mac Address Table 4K

Switching Capacity 25 Gbps

Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)

Max Power Consumption • 7.57 W (220/50 Hz. no PD connected)

• 143.37 W (220/50 Hz. with 123 W PD connected)

Max Heat Dissipation • 25.81BTU/h (220 V/50 Hz with no PD connected)

• 488.89 BTU/h (220 V/50 Hz with 123W PD connected)

SOFTWARE FEATURES

Advanced Features • Compatible With IEEE 802.3af/at/bt type3 Compliant PDs

• Mac Address Auto-Learning And Auto-Aging

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• PoE Auto Recovery (Ports 1-4)

Transfer Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents • TL-SG105PP-M2

• Power Adapter

• Installation Guide

• Rubber Feet

Environment • Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
