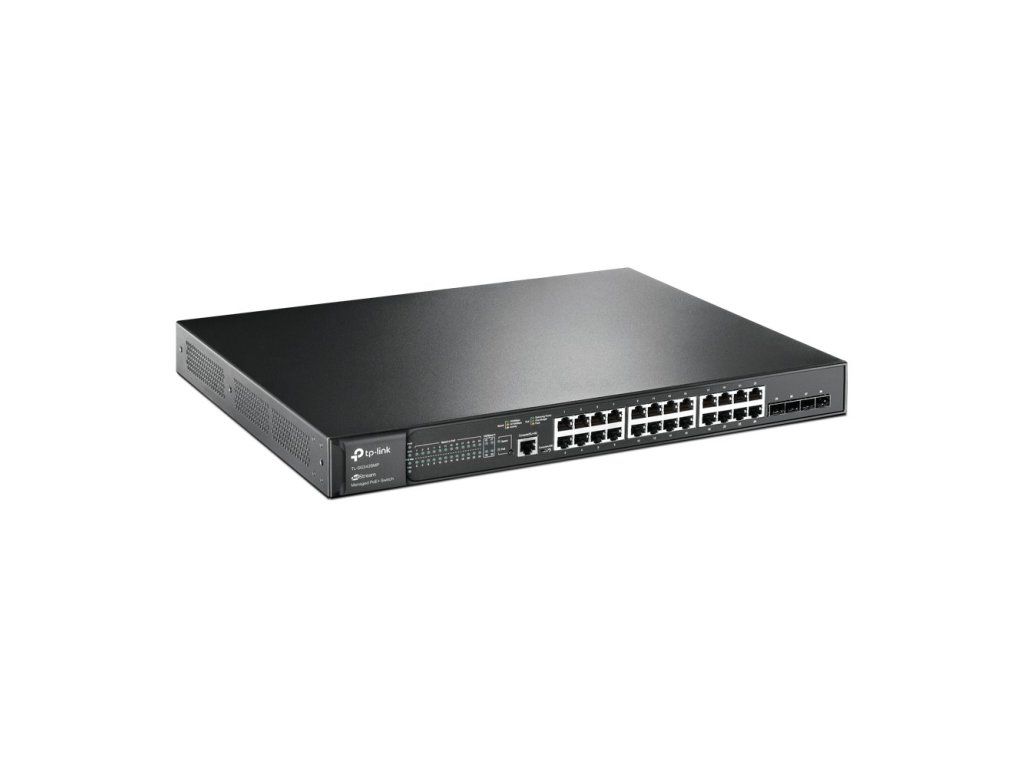

TP-Link TL-SG3428MP 28xGb L2+ manažovaný 384W switch POE+ Omada SDN

384 W PoE rozpočet: 24 × 802.3at / af vyhovujúce porty PoE + s celkovým napájaním 384 W *.

Plne gigabitové porty: 24 × gigabitové porty PoE + a 4 × gigabitové sloty SFP poskytujú vysokorýchlostné pripojenie.

Integrované do Omada SDN: Zero-Touch Provisioning (ZTP) **, centralizovaná správa cloudu a inteligentné monitorovanie.

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre mimoriadne pohodlie a ľahkú správu.

Statické smerovanie: Pomáha smerovať internú prevádzku na efektívnejšie využitie sieťových zdrojov.

Robustné bezpečnostné stratégie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication a ďalšie.

Optimalizujte hlasové a obrazové aplikácie: L2 / L3 / L4 QoS a IGMP snooping.

Samostatná správa: Web, CLI (port konzoly, Telnet, SSH), SNMP, RMON a Dual Image prinášajú výkonné možnosti správy



HARDWARE FEATURES

Interface • 24× 10/100/1000Mbps RJ45 Ports

• 4× Gigabit SFP Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity 2

Power Supply 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45) • Standard: 802.3at/af compliant

• PoE+ Ports: 24 Ports, up to 30 W per port

• Power Budget: 384 W

Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Mounting Rack Mountable

Max Power Consumption • 31.0 W (110 V/60 Hz) (no PD connected)

• 463.8 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation • 105.78 BTU/h (110 V/60 Hz) (no PD connected)

• 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)

PERFORMANCE

Switching Capacity 56 Gbps

Packet Forwarding Rate 41.66 Mpps

MAC Address Table 8K

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

• Bandwidth Control

- Port/Flow based Rating Limiting

• Smoother Performance

• Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

L2 and L2+ Features • Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports per group

• Spanning Tree Protocol

- 802.1d STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

• Loopback Detection

- Port-based

- VLAN based

• Flow Control

- 802.3x Flow Control

- HOL Blocking Prevention

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Tx/Rx/Both

L2 Multicast • Supports 511 (IPv4, IPv6) IGMP groups

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- IGMP Authentication

• IGMP Authentication

• MVR

• MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

- Limited IP Multicast

• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN • VLAN Group

- Max 4K VLAN Groups

• 802.1q Tagged VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• GVRP

• VLAN VPN (QinQ)

- Port-Based QinQ

- Selective QinQ

• Voice VLAN

Access Control List • Time-based ACL

• MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

• IP ACL

-Source IP

- Destination IP

- Fragment

- IP Protocol

- TCP Flag

- TCP/UDP Port

- DSCP/IP TOS

- User Priority

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

• ACL apply to Port/VLAN

Security • IP-MAC-Port Binding

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard

• IPv6-MAC-Port Binding

- DHCPv6 Snooping

- ND Detection

- IPv6 Source Guard

• DoS Defend

• Static/Dynamic Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio/pps control mode

• IP/Port/MAC based access control

• 802.1X

- Port based authentication

- Mac based authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Support Radius authentication and accountability

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

L3 Features • 16 IPv4/IPv6 Interfaces

• Static Routing

- 48 static routes

• Static ARP

• 316 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay

• DHCP L2 Relay

Management • Web-based GUI

• Command Line Interface (CLI) through console port, telnet

• SNMPv1/v2c/v3

- Trap/Inform

- RMON (1, 2, 3, 9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

Advanced Features • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• ZTP (Zero-Touch Provisioning)*

OTHERS

Certification CE, FCC, RoHS

Package Contents • TL-SG3428MP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Environment • Operating Temperature: 0–45 ? (32–113 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
