TP-Link TL-SG3428XF L2+ 24x SFP managed 4xSFP+ switch Omada SDN

TL-SG3428XF

Riadený switch JetStream L2+ s 24 portami SFP a 4 10GE SFP+ slotmi

Bleskurýchle odchádzajúce pripojenie 10G: 4 sloty SFP+ s rýchlosťou 10 Gbit/s umožňujú vysoko priepustné širokopásmové pripojenie a prepínaciu kapacitu bez blokovania.

Gigabitové rýchlosti: 20 gigabitových portov SFP a 4 gigabitové kombinované porty SFP/RJ45 ponúkajú vysokorýchlostné a spoľahlivé spojenie s ďalšími switchmi a zariadeniami.

Integrované do platformy Omada SDN: Funkcia ZTP (Zero-Touch Provisioning)*, centralizovaná cloudová správa a inteligentné monitorovanie.

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchú správu.

Statické smerovanie: Pomáha smerovať tok dát po lokálnej sieti, čím zaisťuje efektívne využívanie sieťových prostriedkov.

Robustná stratégia zabezpečenia: Funkcia viazania na adresu IP-MAC, ACL, zabezpečenie portov, ochrana proti útokom DoS, funkcia Storm Control, funkcia DHCP Snooping, overovanie protokolom 802.1X a Radius a ďalšie funkcie.

Optimalizovaný prenos hlasu a videa v aplikáciách: L2/L3/L4 QoS a funkcie IGMP Snooping.

Samostatná správa: Webové rozhranie, CLI (konzolový port, Telnet, SSH), SNMP, RMON a funkcie Dual Image prinášajú pokročilé možnosti správy.



HARDWARE FEATURES

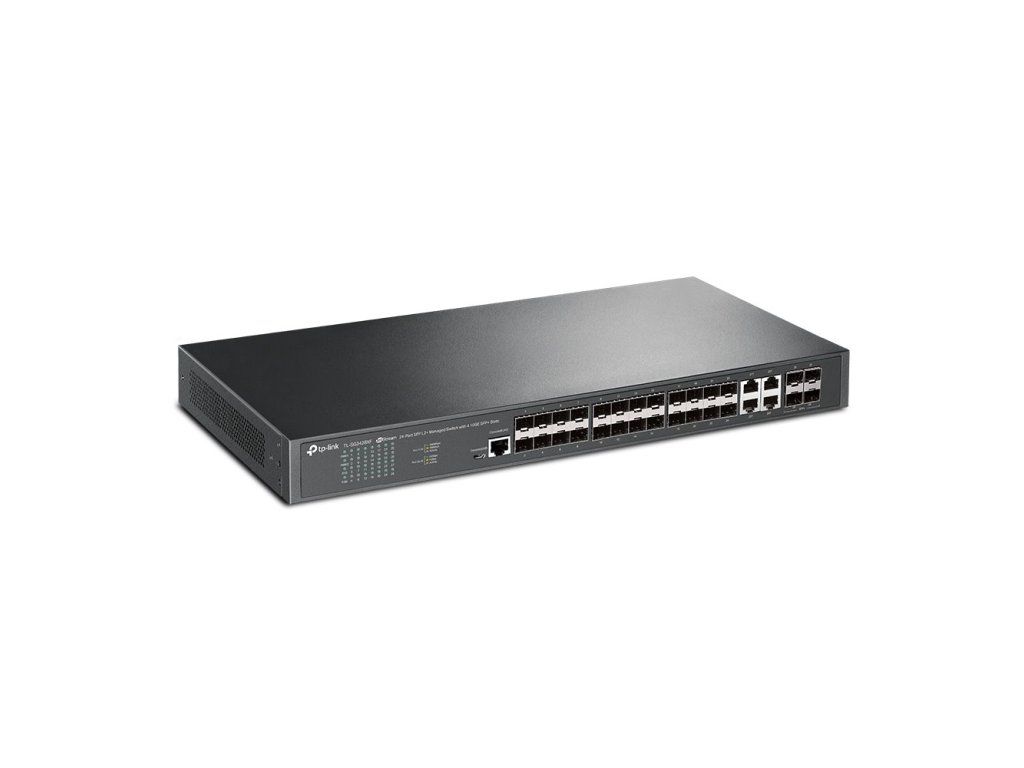

Interface • 20× Gigabit SFP Ports

• 4× Gigabit SFP/RJ45 Combo Ports

• 4× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity 1 Fan

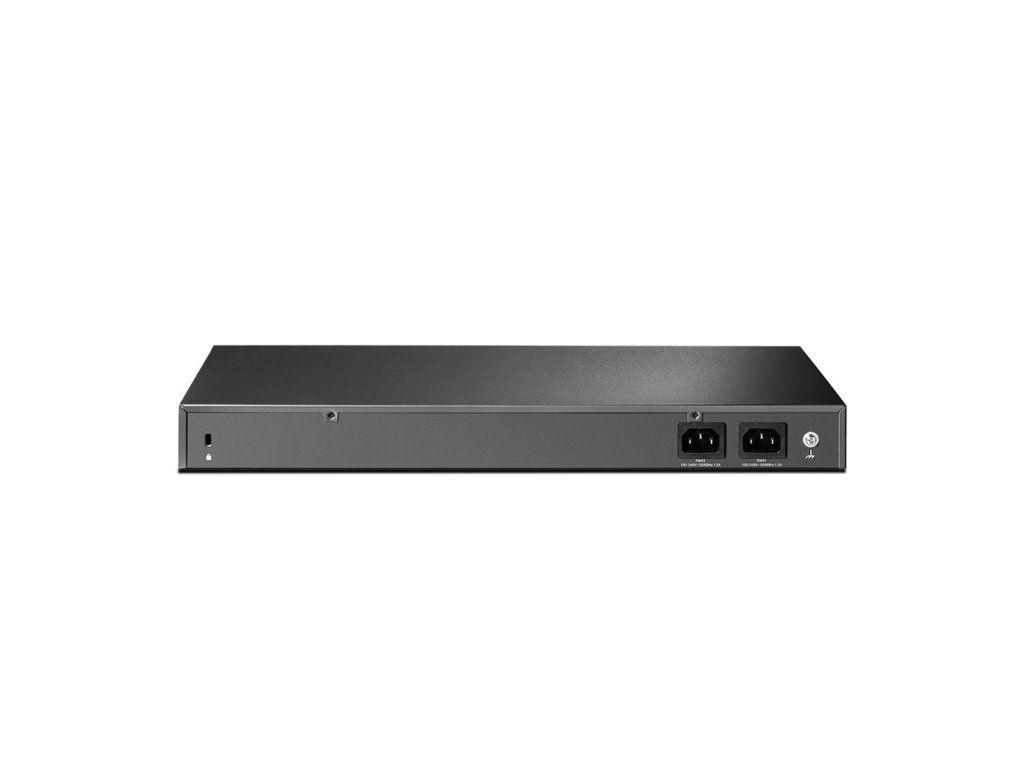

Power Supply Dual Reduant Power Supplies

100-240 V AC~50/60 Hz

Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 35.7 W (110 V/60 Hz)

Max Heat Dissipation 121.81 BTU/hr (110 V/60 Hz)

PERFORMANCE

Switching Capacity 128 Gbps

Packet Forwarding Rate 95.23 Mpps

MAC Address Table 16 K

Packet Buffer Memory 12 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

• Bandwidth Control

- Port/Flow based Rating Limiting

• Smoother Performance

• Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

L2 and L2+ Features • Link Aggregation

- static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups, containing 8 ports per group

• Spanning Tree Protocol

- 802.1d STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter, Root Protect

• Loopback Detection

- Port based

- VLAN based

• Flow Control

- 802.3x Flow Control

- HOL Blocking Prevention

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Tx/Rx/Both

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- IGMP Authentication

• IGMP Authentication

• MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

- Limited IP Multicast

• MVR

• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN • VLAN Group

- Max 4K VLAN Groups

• 802.1Q Tagged VLAN

• MAC VLAN: 30 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• Private VLAN

• GVRP

• VLAN VPN (QinQ)

- Port-Based QinQ

- Selective QinQ

• Voice VLAN

Access Control List • Time-based ACL

• MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

• IP ACL

-Source IP

- Destination IP

- Fragment

- IP Protocol

- TCP Flag

- TCP/UDP Port

- DSCP/IP TOS

- User Priority

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

• ACL apply to Port/VLAN

Security • IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- IPv6 Source Guard: 100 Entries

• DoS Defend

• Static/Dynamic Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

• 802.1X

- Port base authentication

- Mac base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Support Radius authentication andaccountability

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC based access control

IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

L3 Features • 16 IPv4/IPv6 Interfaces

• Static Routing

- 48 static routes

• Static ARP

- 128 Static Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

• DHCP L2 Relay

Advanced Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

MIBs • MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

MANAGEMENT

Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3

- Trap/Inform

- RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents • TL-SG3428XF Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: 0–45 ? (32–113 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
