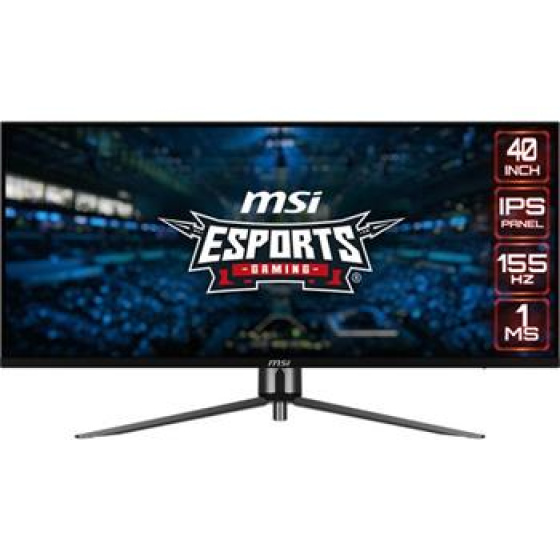

MSI/MAG401QR/40''/IPS/3440x1440/155Hz/1ms/Black/3R
Kód: MAG401QRSkladom: 20 ks
Termín a spôsob doručenia
MSI Gaming monitor MAG401QR, 40" IPS/3440x1440 (UWQHD)/155Hz/1ms/DP/2xHDMI/3xUSBprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
MAG401QR
EAN:
4711377080514
Záruka:
3 roky
Stav:
Konektor DVI:
ne
Konektor USB:
ano
Rozostup bodov (mm):
0,2697
Konektor SCART:
ne
Komponentné video:
ne
Kompozitné video:
ne
Rozmery (ŠxVxH mm):
945,22 x 416,12 x 83,32
Montáž na stenu:
ano
Repro:
ne
Barva:
černá
Rozlišení (šxv):
3440x1440
Pivot:
ne
Pozorovací úhel ver./ hor.:
178/178
Výškovo nastaviteľný stojan:
ne
Konektor 15 Pin D-Sub:
ne
VESA standard:
ano
Dotyková obrazovka:
ne
Počet pixelov na šírku:
3440
Počet pixelov na výšku:
1440
Úhlopříčka přesná ("):
40
Uhlopriečka:
33" - 40"
Model:
mag401qr
Doba odezvy (ms):
1
Herné prevedenie:
áno
Spôsob použitia:
herní
Prehnutý monitor:
ne
Obnovovací frekvence (Hz):
155
Verze HDMI:
verze 2.0
DP počet:
1
Barevná hloubka:
1,07 miliardy
Rozměr VESA uchycení:
100 x 100 mm
Hmotnost rozsah (kg):
od 5,1 do 10 kg
Konektor LAN RJ-45:
ne
Modelová řada:
msi
Formát obrazu:
panorama 21:9
Typ obrazovky:
lcd ips/pls
Jas (cd/m2):
400
Kontrast (statický):
1000:1
Konektor HDMI:
ano
Konektor DisplayPort:
ano
Konektor USB-C:
áno
Jas (cd/m2) - rozsah:
251 - 400
Displej - dotykový:
nie
Konektor RJ45:
nie
Displej - typ:
lcd ips/pls/wva
DP (počet):
1
Záruka:
3 roky
Rozhranie:
jack 3,5 mm výstup, hdmi, usb 2.0, displayport, usb type-c
Záruka (roky):
3
Webkamera:
ne
Rozlišení - standard:
uw-qhd
Displej - povrch:
matný
Výkon Power Delivery (W):
65
Power Delivery:
ano
PIP (Picture in Picture):
ano
HDR:
hdr
Povrch displeje:
matný
Rozlíšenie:
3440x1440
Výbava:
vesa
Typ panelu:
ips
Povrchová úprava displeja:
matný
Kontrast:1:
1000
VESA rozměry:
100x100
Hmotnost (kg):
8
Obnovovací frekvence displeje (Hz):
155
Úhlopříčka displeje ("):
40
Jas (cd/m2=nits) - přesný:
400
Jas (cd/m2=nits) - rozsah:
251 - 400
Adaptive-Sync:
ano
VESA Certifikace HDR:
displayhdr 400
Úhlopříčka ("):
40
Úhlopříčka rozsah:
33" - 40"
Konektor VGA (D-Sub):
ne
Rozměr VESA uchycení (mm):
100 x 100
DP/mini DP (počet):
1
Celkový výkon repro (W):
nemá
Popis MSI/MAG401QR/40''/IPS/3440x1440/155Hz/1ms/Black/3R
MSI Gaming monitor MAG401QR, 40" IPS/3440x1440 (UWQHD)/155Hz/1ms/DP/2xHDMI/3xUSB
MKT Spec MAG401QR
Website Name MAG401QR
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 40" (101.6 cm)
Active Display Area (mm) 926.22(H)x387.72(V)
Curvature Flat
Panel Type IPS
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.2697(H)x0.2697(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~155Hz
HDR (High dynamic range) DisplayHDR 400
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 400
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 30~160 KHz(H) / 60~144 Hz(V)
Refresh Rate 155Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 14ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 103%/86%
NTSC (CIE1931 area percentage/overlap) 88%/81%
sRGB (CIE1976 area percentage/overlap) 118%/99%
sRGB (CIE1931 area percentage/overlap) 124%/99%
Adobe RGB (CIE1976 area percentage/overlap) 101%/90%
Adobe RGB (CIE1931 area percentage/overlap) 92%/82%
DCI-P3 (CIE1976 area percentage/overlap) 95%/94%
DCI-P3 (CIE1931 area percentage/overlap) 91%/91%
Rec.709 (CIE1976 area percentage/overlap) 118%/99%
Rec.709 (CIE1931 area percentage/overlap) 124%/99%
Rec.2020 (CIE1976 area percentage/overlap) 68%/68%
Rec.2020 (CIE1931 area percentage/overlap) 65%/65%
Quantum Dot NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 3440X1440 (Up to 155Hz)
Note_HDMI 3440 x 1440 (Up to 100Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.0
HDMI HDCP version 2.2
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.2
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 39
Annual Energy Consumption (KWh) 39
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power N/A
PD Output Type C
PD Output Power 65W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Carton
Carton Item (SG14) SG14-M1S156A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 14
Q'ty/20cy (by air) pcs 140
Q'ty/40cy (by air) pcs 294
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1490
Net Weight (by air) kg 144.2
Gross Weight (by air) kg 193.6
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2210
Net Weight (by sea) kg 247.2
Gross Weight (by sea) kg 317.6
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 945.22 x 289.63 x 530.29
Product Dimension with Stand (WxDxH) (inch) 37.21 x 11.4 x 20.88
Product Dimension without Stand (WxDxH) (mm) 945.22 x 83.32 x 416.12
Product Dimension without Stand (WxDxH) (inch) 37.21 x 3.28 x 16.38
Stand Dimension (WxDxH) (mm) 672.42 x 289.63 x 386.56
Stand Dimension (WxDxH) (inch) 26.47 x 11.4 x 15.22
Weight (Net kg) 10.3
Weight (Net lbs) 22.71
Weight Without Stand (kg) 8
Weight Without Stand (lbs) 17.64
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) N/A
Inside Carton Dimension (WxDxH) (inch) N/A
Outer Carton Dimension (WxDxH) (cm) N/A
Outer Carton Dimension (WxDxH) (inch) N/A
Weight (Gross kg) 12.4
Weight (Gross lbs) 27.34
Accessories
DisplayPort Cable 1
HDMI Cable 0
DVI Cable 0
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG401
Segment Name3 MAG401QR
Barcode Info
EAN 4711377080514
MKT Spec MAG401QR
Website Name MAG401QR
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 40" (101.6 cm)
Active Display Area (mm) 926.22(H)x387.72(V)
Curvature Flat
Panel Type IPS
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.2697(H)x0.2697(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~155Hz
HDR (High dynamic range) DisplayHDR 400
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 400
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 30~160 KHz(H) / 60~144 Hz(V)
Refresh Rate 155Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 14ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 103%/86%
NTSC (CIE1931 area percentage/overlap) 88%/81%
sRGB (CIE1976 area percentage/overlap) 118%/99%
sRGB (CIE1931 area percentage/overlap) 124%/99%
Adobe RGB (CIE1976 area percentage/overlap) 101%/90%
Adobe RGB (CIE1931 area percentage/overlap) 92%/82%
DCI-P3 (CIE1976 area percentage/overlap) 95%/94%
DCI-P3 (CIE1931 area percentage/overlap) 91%/91%
Rec.709 (CIE1976 area percentage/overlap) 118%/99%
Rec.709 (CIE1931 area percentage/overlap) 124%/99%
Rec.2020 (CIE1976 area percentage/overlap) 68%/68%
Rec.2020 (CIE1931 area percentage/overlap) 65%/65%
Quantum Dot NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 3440X1440 (Up to 155Hz)
Note_HDMI 3440 x 1440 (Up to 100Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.0
HDMI HDCP version 2.2
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.2
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 39
Annual Energy Consumption (KWh) 39
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power N/A
PD Output Type C
PD Output Power 65W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Carton
Carton Item (SG14) SG14-M1S156A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 14
Q'ty/20cy (by air) pcs 140
Q'ty/40cy (by air) pcs 294
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1490
Net Weight (by air) kg 144.2
Gross Weight (by air) kg 193.6
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2210
Net Weight (by sea) kg 247.2
Gross Weight (by sea) kg 317.6
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 945.22 x 289.63 x 530.29
Product Dimension with Stand (WxDxH) (inch) 37.21 x 11.4 x 20.88
Product Dimension without Stand (WxDxH) (mm) 945.22 x 83.32 x 416.12
Product Dimension without Stand (WxDxH) (inch) 37.21 x 3.28 x 16.38
Stand Dimension (WxDxH) (mm) 672.42 x 289.63 x 386.56
Stand Dimension (WxDxH) (inch) 26.47 x 11.4 x 15.22
Weight (Net kg) 10.3
Weight (Net lbs) 22.71
Weight Without Stand (kg) 8
Weight Without Stand (lbs) 17.64
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) N/A
Inside Carton Dimension (WxDxH) (inch) N/A
Outer Carton Dimension (WxDxH) (cm) N/A
Outer Carton Dimension (WxDxH) (inch) N/A
Weight (Gross kg) 12.4
Weight (Gross lbs) 27.34
Accessories
DisplayPort Cable 1
HDMI Cable 0
DVI Cable 0
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG401
Segment Name3 MAG401QR
Barcode Info
EAN 4711377080514
