Mercusys MA86XE AXE5400 Tri-Band WiFi 6E BT PCIe

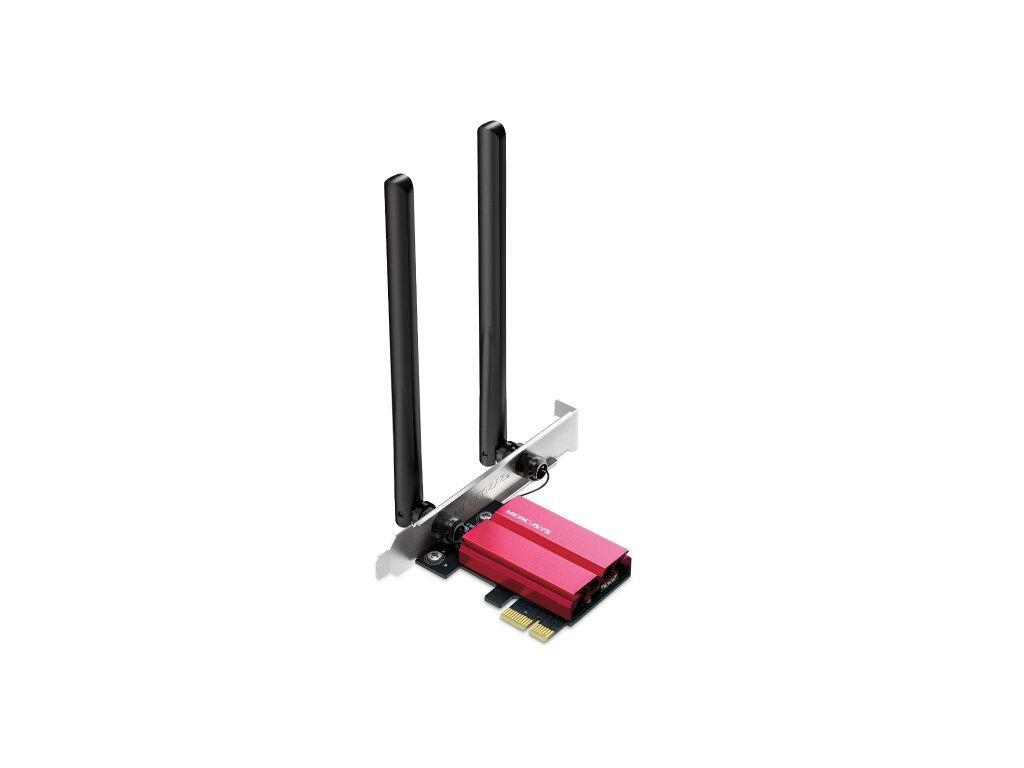

Mercusys MA86XE AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Functions Unstoppable Tri-Band Speed

*Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

WiFi 6E Standard

*Expand to the clearer, broader 6 GHz band

Wider Signal Coverage

*Two high-performance antennas

Bluetooth 5.3

*The latest Bluetooth technology achieves faster speeds and broader coverage

Improved Security

*The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility

*Full support for 802.11ax/ac/a/b/g/n standards

Windows Compatible

*Supported operating system: Windows 10, 11 (64 bit), and currently 6 GHz Band only supported on Windows 11.

Specifications

Wireless Wireless Standards *IEEE 802.11 a/n/ac/ax 5 GHz *IEEE 802.11 b/g/n/ax 2.4 GHz WiFi Speeds *2402 Mbps on 6 GHz *2402 Mbps on 5 GHz *574 Mbps on 2.4 GHz Reception Sensitivity 6 GHz: *11ax HE160 MCS0:-86 dBm *11ax HE160 MCS11:-56 dBm 5 GHz: *11ax HE80 MCS0: -90 dBm *11ax HE80 MCS11: -59 dBm *11a 54Mbps: -77 dBm *11ac VHT80 MCS0: -92dBm *11ac VHT80 MCS9: -64dBm 2.4 GHz: *11ax HE40 MCS0: -91 dBm *11ax HE40 MCS11: -60 dBm *11g 54Mbps: -76 dBm *11n HT40 MCS7: -72dBm Wireless Security *WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware Dimensions *930 × 4.8 × 0.85 in (228 × 120.8 × 21.5 mm) Antenna Type *2× Fixed High-Performance Omni-Directional Antennas
