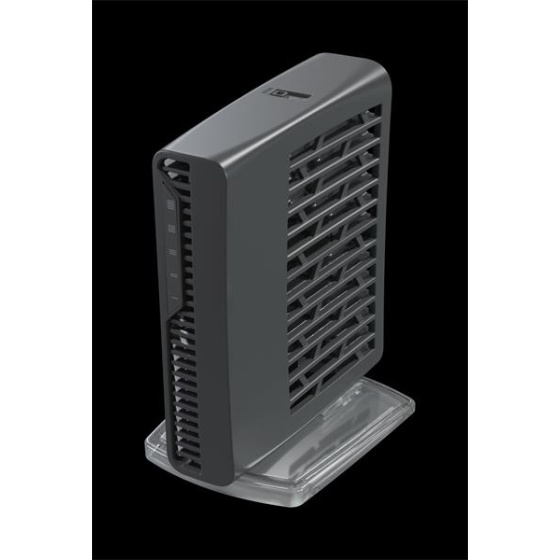

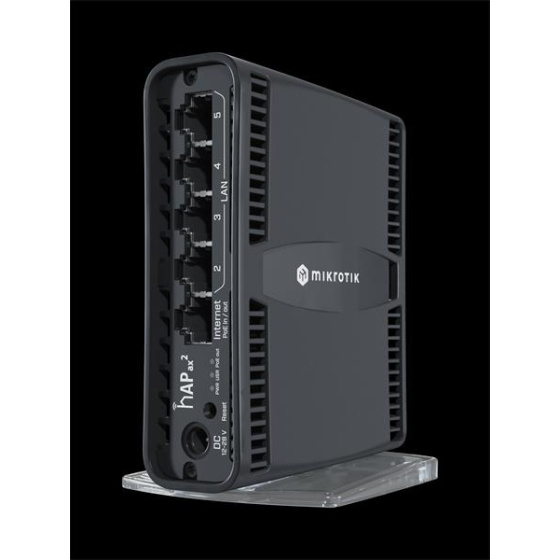

MIKROTIK hAP ax2 with RouterOS L4 license, International version

Details

Product code C52iG-5HaxD2HaxD-TC

Architecture ARM 64bit

CPU IPQ-6010

CPU core count 4

CPU nominal frequency 864 MHz

RouterOS license 4

Operating System RouterOS (v7 only)

Size of RAM 1 GB

Storage size 128 MB

Storage type NAND

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 50°C



Wireless capabilities

Details

Wireless 5 GHz Max data rate 1200 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac/ax

Antenna gain dBi for 5 GHz 4

Wireless 5 GHz chip model QCN-5052

Wireless 5 GHz generation Wi-Fi 6

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz 4.5

Wireless 2.4 GHz chip model QCN-5022

Wireless 2.4 GHz generation Wi-Fi 6

WiFi speed AX1800

Ethernet

Details

10/100/1000 Ethernet ports 5

Number of 1G Ethernet ports with PoE-out 1

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-28 V

Max power consumption 27 W

Max power consumption without attachments 12 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 18-28 V

PoE-out

Details

PoE-out ports Ether 1

PoE out Passive PoE

Max out per port output (input 18-30 V) 600 mA

Max total out (A) 0.6 A

Total output current 0.6

Total output power 16.8W

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP 20

Other

Details

Mode button Yes
