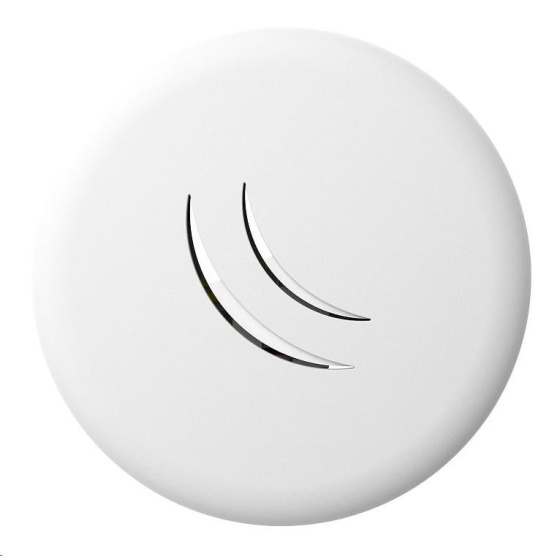

MIKROTIK RouterBOARD cAP lite + L4 (650MHz, 64MB RAM, 1x LAN, 1x 2,4GHz 802.11n)
Kód: RBCAPL-2NDSkladom: 1 ks
Termín a spôsob doručenia
Počel LAN portov:1prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
RBCAPL-2ND
EAN:
4752224003423
Záruka:
2 roky
Rýchlosť LAN max.:
100 mbps
Počet LAN portov:
1
Rýchlosť Wi-Fi max.:
150 mbit/s
POE:
ano
802.11b (2,4GHz):
ano
802.11g (2,4GHz):
ano
Wi-Fi 4 (802.11n):
ano
Použití (venkovní/vnitřní):
vnitřní
Typ zariadenia:
acces point/bridge
Počet portů LAN:
1
Počel LAN portov:
1
WiFi 1 (802.11b):
ano
WiFi 3 (802.11g):
ano
Popis MIKROTIK RouterBOARD cAP lite + L4 (650MHz, 64MB RAM, 1x LAN, 1x 2,4GHz 802.11n)
tabulka datové propustnosti
Specifications
| Details | |
|---|---|
| Product code | RBcAPL-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ?88 mm x 20 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| MicroUSB input Voltage | 5-5 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 10-60 V |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
| Max power consumption | 4 W |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9533 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
