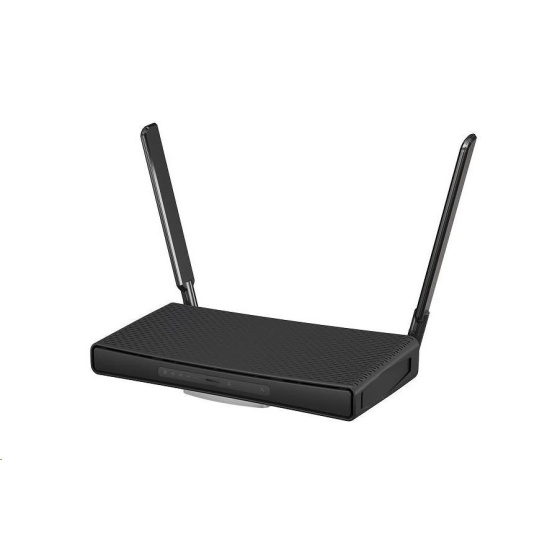

MIKROTIK RouterBOARD hAP AC3 + L4 (716MHz; 256MB RAM, 5xGLAN switch, 1x 2,4+5GHz 802.11ac plastic case, zdroj)
Kód: RBD53IG-5HACD2HNDSkladom: 48 ks
Termín a spôsob doručenia
Počel LAN portov:5prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
RBD53IG-5HACD2HND
EAN:
4752224006981
Záruka:
2 roky
Rýchlosť LAN max.:
1 gbps
Počet LAN portov:
5
Rýchlosť Wi-Fi max.:
1,2 gbit/s
Obsahuje switch:
ano
Antény:
všesměrové
POE:
ano
USB port pri routeri:
usb 2.0
Wi-Fi 2,4 GHz:
ano
Wi-Fi 5 GHz:
ano
802.11a (5GHz):
ano
802.11b (2,4GHz):
ano
802.11g (2,4GHz):
ano
Wi-Fi 4 (802.11n):
ano
Wi-Fi 5 (802.11ac):
ano
Použití (venkovní/vnitřní):
vnitřní
Typ zariadenia:
router
Antény demontovatelné (router):
ano
Možnosť externej antény:
ano
Počel LAN portov:
5
Externí anténa:
ano
WiFi 2 (802.11a):
ano
WiFi 1 (802.11b):
ano
WiFi 3 (802.11g):
ano
Popis MIKROTIK RouterBOARD hAP AC3 + L4 (716MHz; 256MB RAM, 5xGLAN switch, 1x 2,4+5GHz 802.11ac plastic case, zdroj)
tabulka datové propustnosti
Specifications
| Details | |
|---|---|
| Product code | RBD53iG-5HacD2HnD |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | 251 x 129 x 39mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-30 V |
| Max power consumption | 21 W |
| Max power consumption without attachments | 16 W |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| AC speed | AC1200 |
| Antenna gain dBi for 2.4 GHz | 3.3 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 6 |
| Wireless 5 GHz chip model | IPQ-4019 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| Mode button | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
