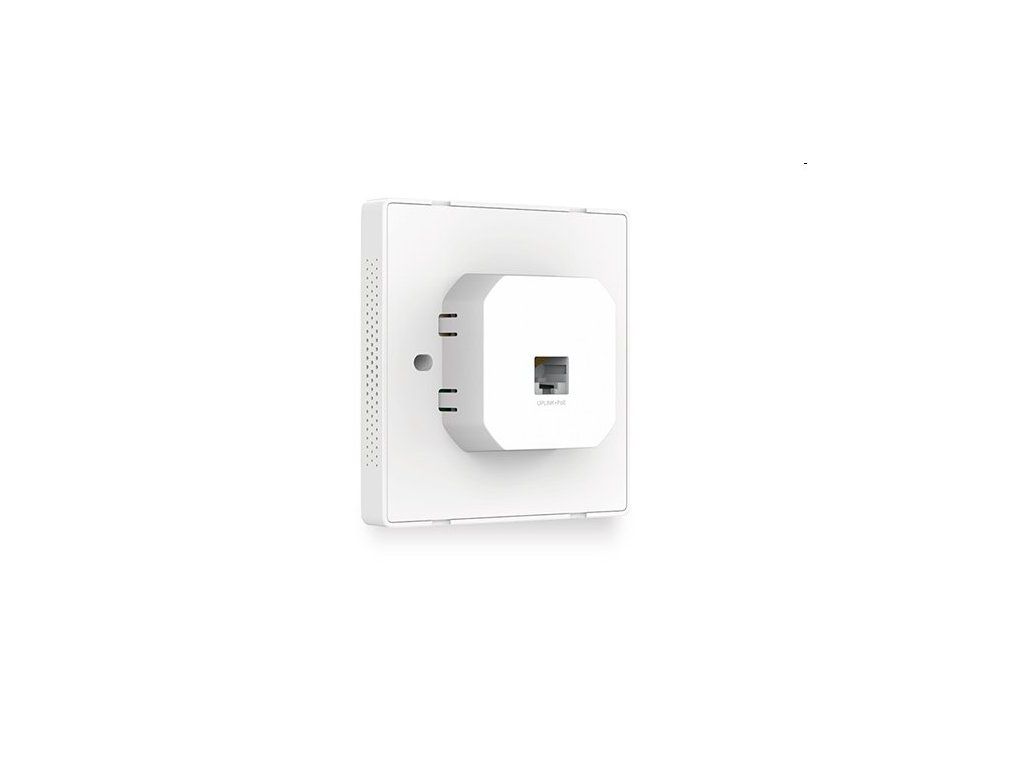

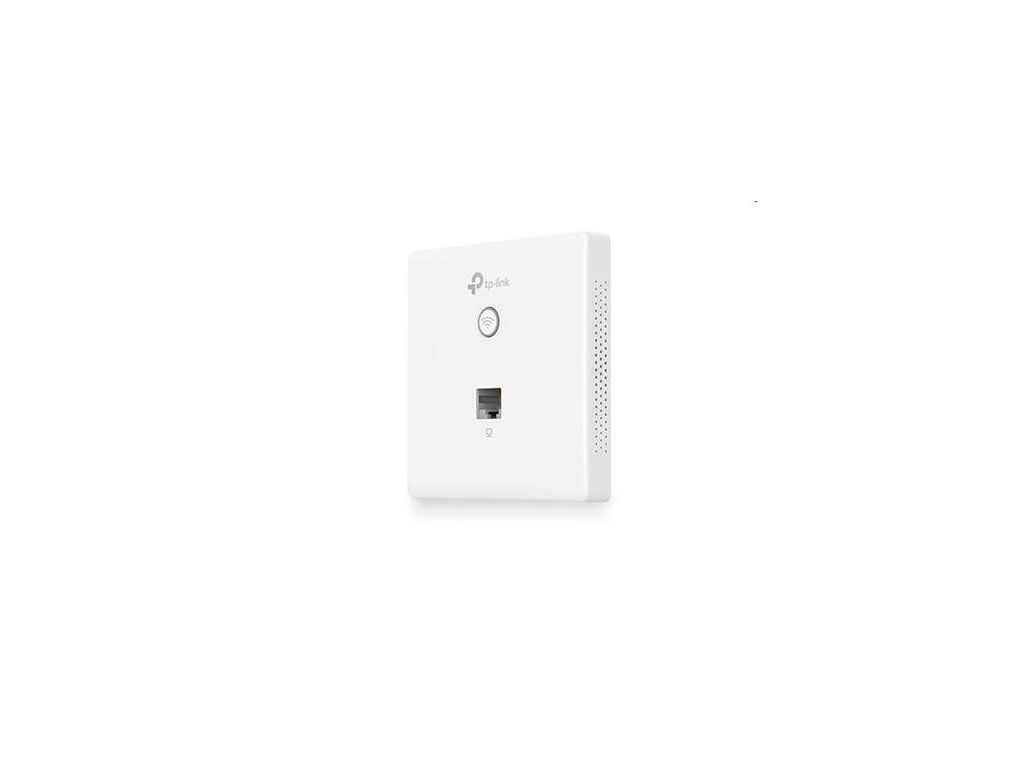

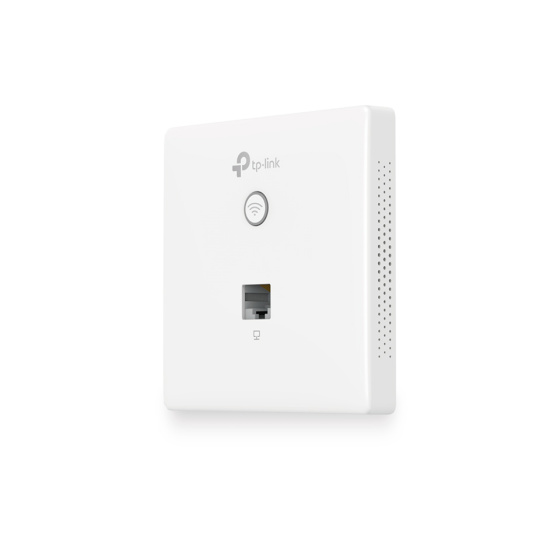

TP-Link EAP115-Wall N300 WiFi Wall Mount AP Omada SDN

300Mbit/s bezdrátový nástěnný N access point EAP115-Wall 300Mbps Wireless N Wall-Plate Access Point, Qualcomm, 300Mbps at 2.4GHz, 802.11b/g/n, 2 10/100Mbps LAN, 802.3af PoE Supported, Compatible with 86mm & EU Standard Junction Box, Centralized Management, Load Balance, Rate Limit, Captive Portal, 2 Internal Antennas, In Wall Mounting

PŘEHLED *Konstrukce upravená pro snadnou montáž umožňuje instalaci do jakékoli elektroinstalační krabice *Kompaktní, nízkoprofilový, diskrétní design se hodí k jakémukoli interiérovému stylu *Volně dostupný Auranet Controller Software umožňuje administrátorům snadno spravovat stovky EAP *Podpora napájení přes ethernet (PoE, 802.3af) pro pohodlnou a cenově dostupnou instalaci *Podniková třída zabezpečení Wi-Fi pomáhá snížit bezpečnostní hrozby sítě *Captive portál poskytuje jednu pohodlnou metodu ověření pro hosty Wi-Fi sítě *Podpora správy VLAN pro rozšířený síťový management

Krátké představení Omada SDN: https://www.youtube.com/watch?v=Veb8-o8EE6U

TECHNICKÁ SPECIFIKACE

HARDWARE FEATURES Interface *10/100Mbps Ethernet (RJ-45) Port *2 Button *LED/Wi-Fi Button?RESET Power Supply: *PoE(IEEE 802.3af) Power Consumption *2.8 W Dimensions ( W x D x H ) *3.4×3.4×1.2 in. (86.8*86.8*30.2 mm) Antenna Type *Internal 2*1.8dBi Omni Mounting *Wall Plate Mounting Physical Security Lock *- Watch Dog *Yes

WIRELESS FEATURES Wireless Standards *IEEE 802.11n/g/b Frequency *2.4GHz Signal Rate *11n: Up to 300Mbps(dynamic) *11g: Up to 54Mbps(dynamic) *11b: Up to 11Mbps(dynamic) Transmit Power *CE:<15dBm(2.4GHz) Wireless Functions *Multiple SSIDs(Up to 8 SSIDs) *Enable/Disable Wireless Radio *Automatic Channel Assignment *Transmit Power Control (Adjust Transmit Power on dBm) *QoS(WMM) *Load Balance *Rate Limit *Reboot Schedule *Wireless Schedule *Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT EAP Controller Software *Yes Email Alerts *Yes LED ON/OFF Control *Yes Management MAC Access Control *Yes SNMP *v1,v2c System Logging *Local/Remote Syslog Local/Remote Syslog Telnet *Yes Web-based Management *HTTP/HTTPS *L3 Management Yes Multi-site Management *Yes Management VLAN *Yes

OTHERS Certification *CE, RoHS Package Contents *300Mbps Wireless N Wall-Plate Access Point EAP115-Wall *Installation Guide *Mounting Screw System Requirements *Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Environment *Operating Temperature: 0?~40? (32?~104?) *Storage Temperature: -40?~70? (-40?~158?) *Operating Humidity: 10%~90% non-condensing *Storage Humidity: 5%~90% non-condensing
