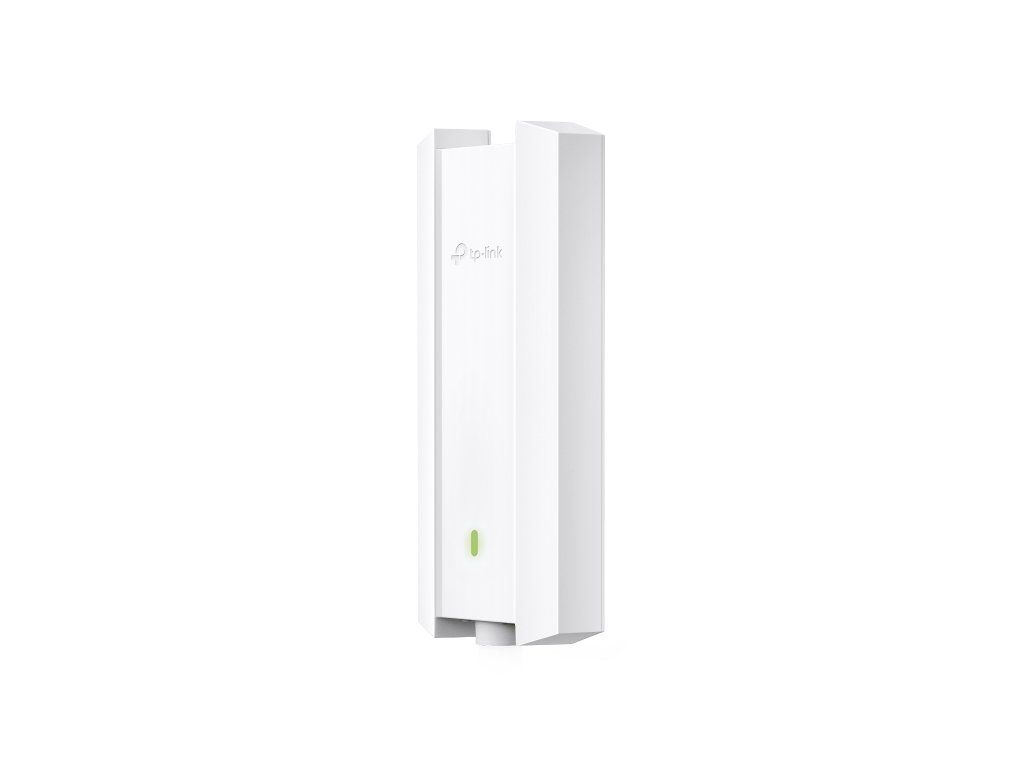

TP-Link EAP623-Outdoor HD AX1800 WiFi6 AP Omada SDN

EAP623-Outdoor HD

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps na 2.4 GHz + 1201 Mbps na 5 GHz.*

Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.†

High-density connectivity up to 1,000+ clients.**

Long-range coverage with high-power amplifier a smart antennas.

IP67 weatherproof enclosure for various outdoor environments.

Advanced Functions: Centralized management, Omada mesh, and seamless roaming.?

PoE+ Powered: Supports 802.3at PoE (adapter nie je zahrnutý).



HARDWARE FEATURES

Interface 1x Gigabit Ethernet Port

Button Reset

Power Supply • 802.3at PoE

• 48V Passive PoE



Note: PoE adapter is not included.

Dimensions ( W x D x H ) 11.0 x 4.2 x 2.2 in (280.4 × 106.5 × 56.8 mm)

Antenna Type 2× Internal Dual-Band Omni Antennas

• 2.4 GHz: 4.0 dBi;

• 5 GHz: 5.0 dBi

Weatherproof Enclosure IP67

Mounting Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

Concurrent Clients 1,020+**

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax

Frequency 5 GHz, and 2.4 GHz

Signal Rate • 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions • Mesh?

• Seamless Roaming?

• Automatic Channel Assignment

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDs:16 (8 for each band)

• Wireless Statistics

• Wireless Schedule

• Reboot Schedule

• RADIUS Accounting

• MAC Authentication

• Static IP/Dynamic IP

Wireless Security • VLAN

• Access Control

• Rogue AP Detection

• Captive Portal Authentication?

• Maximum number of MAC Filter: 4,000

• Wireless Isolation between Clients

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• 802.1X Support

Transmission Power • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);

• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Restore & Backup Yes

Firmware update via Web Yes

NTP Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

SSH Yes

Web-based Management Yes

OTHERS

Certification CE, FCC, RoHS

Package Contents • EAP623-Outdoor HD

• Installation Guide

• Mounting Kit

• Waterproof Kit

Environment • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing
