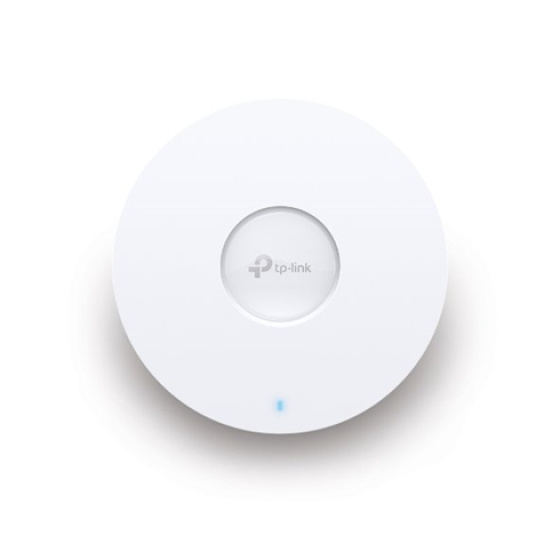

TP-Link EAP650 AX3000 WiFi6 Access Point Omada SDN

HARDWARE FEATURES Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset Power Supply • 802.3at PoE • 12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US) Power Consumption • EU: 13.5 W • US: 14.7 W Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) Antenna Type Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi Mounting • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting WIRELESS FEATURES Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) MANAGEMENT Omada App Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. OTHERS Certification CE, FCC, RoHS Package Contents • EAP650 • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux Environment • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
