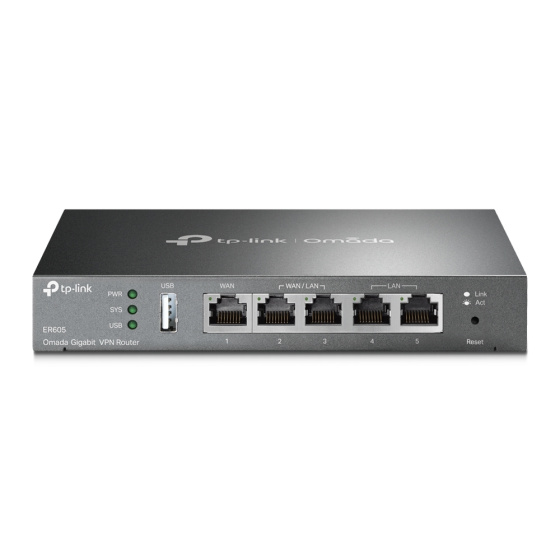

TP-Link ER605 v2 Gb Multi-WAN VPN router, port USB, Omada SDN

HARDWARE FEATURES Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP Interface • 1 Fixed Gigabit WAN Port • 1 Fixed Gigabit LAN Port • 3 Changeable Gigabit WAN/LAN Ports Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) Button Reset Button Power Supply External 9V/0.85A DC Adapter Flash SPI 16MB DRAM 128 MB LED PWR, SYS, WAN, LAN Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) PERFORMANCE Concurrent Session 25,000 IPsec VPN Throughput 41.5 Mbps BASIC FUNCTIONS WAN Connection Type • Static/Dynamic IP • PPPoE • PPTP • L2TP MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces* IPv6 Developing‡ VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy ADVANCED FUNCTIONS ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing • Policy Routing Bandwidth Control • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP Security • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management Session Limit IP-based Session Limit VPN IPsec VPN • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller PPTP VPN • PPTP VPN Server • 10 PPTP VPN Clients? • 16 Tunnels • PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server • 10 L2TP VPN Clients? • 16 Tunnels • L2TP over IPSec OpenVPN • OpenVPN Server* • 10 OpenVPN Clients*? • 16 OpenVPN Tunnels* SECURITY Filtering WEB Group Filtering§ URL Filtering Web Security§ ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN Access Control Source/Destination IP Based Access Control AUTHENTICATION Web Authentication • No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius*) • External Radius Sever • External Portal Sever* • Facebook* MANAGEMENT Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) Maintenance • Time Setting • Diagnostic • Firmware Upgrade • Factory Defaults/Reboot • Backup&Restore • System Log • Remote Management • Statistics • Controller Settings • SNMP Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)** OTHERS Certification CE, FCC, RoHS Package Contents • Gigabti VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide System Requirements Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux Environment • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
