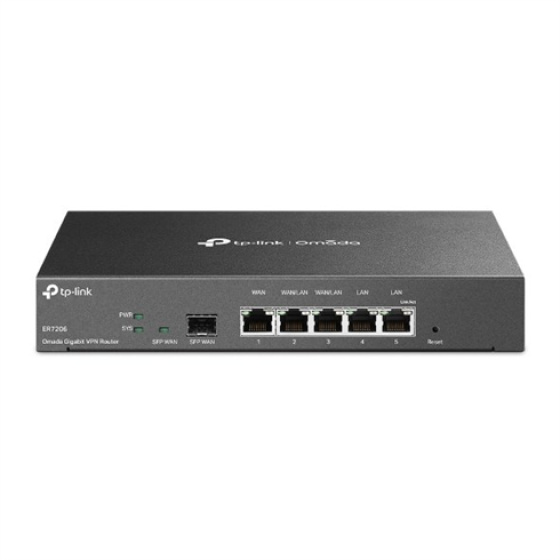

TP-Link ER7206 ver.2 Gb MultiWAN VPN router Omada SDN

HARDWARE FEATURES Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP Interface • 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100? STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) Button Reset Button Power Supply 100–240 V~50/60 Hz Flash SPI 4MB + NAND 128MB DRAM 512MB LED PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) PERFORMANCE Concurrent Session 150,000 New Sessions /Second 5,500 NAT (Static IP) 940.3 Mbps / 940.2 Mbps NAT(DHCP) 940.3 Mbps / 940.4 Mbps NAT(PPPoE) 939.7 Mbps / 937.9 Mbps NAT (L2TP) 918.0 Mbps / 917.9 Mbps NAT (PPTP) 918.9 Mbps / 914.7 Mbps IPsec VPN Throughput (AES256) 291.6 Mbps IPsec VPN Throughput 291.6 Mbps L2TP VPN Throughput Unencrypted: 1360.3 Mbps Encrypted: 202.3 Mbps PPTP VPN Throughput Unencrypted: 1379.3 Mbps Encrypted: 115.6 Mbps 66 Byte Packet forwarding rate 486,918 pps / 488,372 pps 1,518 Byte Packet forwarding rate 81,274 pps / 81,274 pps BASIC FUNCTIONS WAN Connection Type • Static/Dynamic IP • PPPoE • PPTP • L2TP MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* IPv6 Yes VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy ADVANCED FUNCTIONS ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing • Policy Routing Bandwidth Control • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP Security • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management Session Limit IP-based Session Limit VPN IPsec VPN • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) PPTP VPN • PPTP VPN Server • 10 PPTP VPN Clients** • 50 Tunnels • PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server • 10 L2TP VPN Clients** • 50 Tunnels • L2TP over IPSec OpenVPN • OpenVPN Server* • 10 OpenVPN Clients*? • 50 OpenVPN Tunnels* SECURITY Filtering WEB Group Filtering§ URL Filtering Web Security§ ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN Access Control Source/Destination IP Based Access Control AUTHENTICATION Web Authentication • No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius*) • External Radius Sever • External Portal Sever* • Facebook* MANAGEMENT Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration OTHERS Certification CE, FCC, RoHS Package Contents • ER7206 • Power Cord • Quick Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux Environment • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
