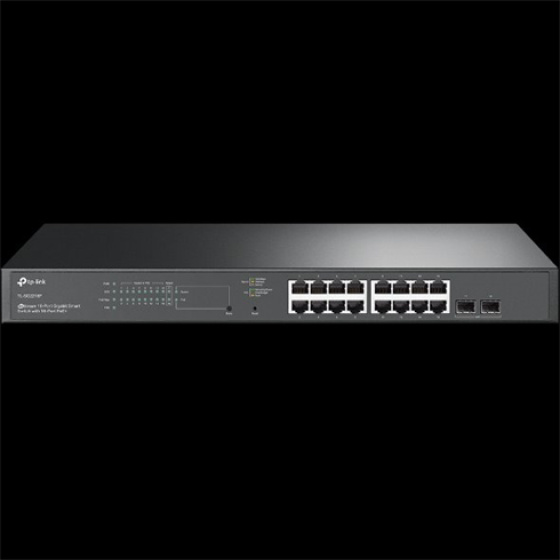

TP-Link TL-SG2218P 16xGb POE+ 2xSFP 150W smart switch Omada SDN

TP-Link switch TL-SG2218 18portový gigabitový inteligentní switch JetStream s 16 porty PoE+ Platforma softwarově definovaných sítí Omada (SDN) integruje síťová zařízení, včetně přístupových bodů, switchů a bran, a poskytuje 100% centralizovanou cloudovou správu.

Technická specifikace

HARDWARE FEATURES Standards and Protocols *IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x Interface *16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) *2× Gigabit SFP Slots Network Media *10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) *100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) *1000BASE-X: MMF, SMF Fan Quantity *1 Power Supply *100-240V AC, 50/60Hz PoE Ports (RJ45) *Standard: 802.3at/af compliant *PoE+ Ports: 16 Ports *PoE Power Budget: 150 W* Dimensions ( W x D x H ) *17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) Mounting *Rack Mountable Max Power Consumption *181.4 W (110 V/60 Hz) (with 150 W PD connected) *178.3 W (220 V/50 Hz) (with 150 W PD connected) Max Heat Dissipation *619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected) *608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)

PERFORMANCE Switching Capacity *36 Gbps Packet Forwarding Rate *26.78 Mpps MAC Address Table *8K Packet Buffer Memory *4.1 Mbit Jumbo Frame *9 KB

Software features Quality of Service(QoS) *802.1p CoS/DSCP priority *8 priority queues *Priority Schedule Mode *Queue Weight Config *Bandwidth Control *Smoother Performance *Storm Control L2 and L2+ Features *16 IP Interfaces *Static Routing *DHCP Server *DHCP Relay *Static ARP *Proxy ARP *Gratuitous ARP *Link Aggregation *Spanning Tree Protocol *Loopback Detection *Flow Control *Mirroring *802.1ab LLDP/ LLDP-MED VLAN *VLAN Group *802.1Q tag VLAN *MAC VLAN: 12 Entries *Protocol VLAN *GVRP *Voice VLAN Access Control List(ACL) *Support up to 230 entries *Time-Range *Time-based ACL *MAC ACL *IP ACL *IPv6 ACL *Combined ACL *Rule Operation *Policy Action *ACL Rules Binding *Actions for flows Security *AAA *802.1X *IP/IPv6-MAC Binding *IP Source Guard *IPv6 Source Guard *DoS Defend *Static/Dynamic/Permanent Port Security *Broadcast/Multicast/Unicast Storm Control *Port Isolation *Secure web management through HTTPS with SSLv3/TLS 1.2 *Secure Command Line Interface (CLI) management with SSHv1/SSHv2 *IP/Port/MAC based access control Management *Omada App *Cloud Access

Others Certification *CE, FCC, RoHS Package Contents *TL-SG2218P *Power Cord *Installation Guide *Rackmount Kit *Rubber Feet System Requirements *Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Environment *Operating Temperature: 0–50 ? (32–122 ?), *Storage Temperature: -40–70 ? (-40–158 ?) *Operating Humidity: 10–90% RH non-condensing *Storage Humidity: 5–90% RH non-condensing
