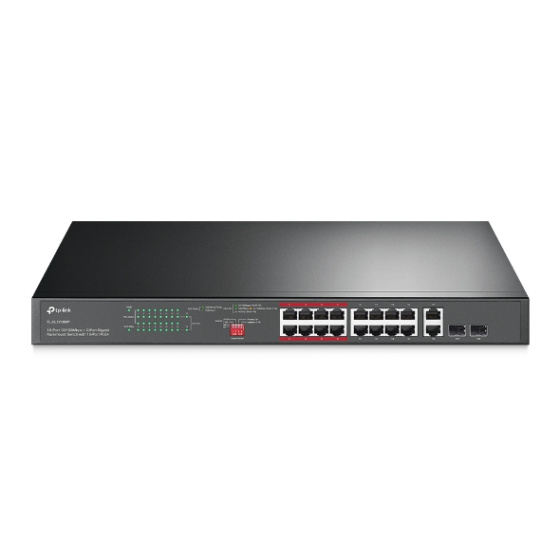

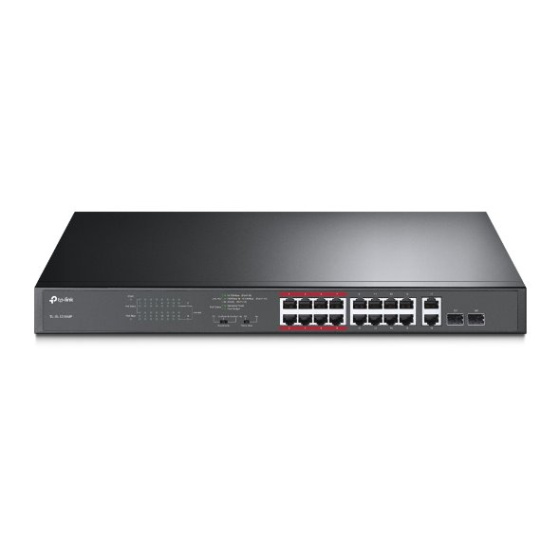

TP-Link TL-SL1218MP ver.2 16xFE 2xGb 2xSFP Unmanaged CCTV Switch 150W POE+
Kód: TL-SL1218MPSkladom: 19 ks
Termín a spôsob doručenia
Prepínač (Unmanaged) s podporou napájania cez ethernet (až do vzdialenosti 250 m), podporuje štandardy 802.3at / 802.3af. Rozhranie: 16x PoE + 10 / 100Mbps RJ45, 2 x 10/100 / 1000Mbps RJ45, 2 x combo gigabitové SFP porty. Ponúka až 30 W pre každý PoE port, celkom 250 W pre všetky PoE porty.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
TL-SL1218MP
EAN:
6935364099824
Záruka:
5 rokov
Prevedenie:
rack mounted 19"
Rýchlosť LAN max.:
1 gbps
Optika:
ano
Počet LAN portov:
16
Obsahuje switch:
ano
POE:
ano
Technológia:
fast ethernet + gigabit uplink
Prevedenie switch:
do racku
Management:
unmanaged switch
Počet SFP portů:
2
Fanless switch:
ne
Počet portů LAN:
16
Funkce:
poe (power over ethernet)
Podporované standardy PoE:
802.3af, 802.3at
Ventilátor:
ano
Přenosová rychlost LAN (Mb/s):
100
Maximálny počet portov:
16
PoE budget (W):
250
Vlastnosti switche:
funkcia poe na portoch
Počet portů Combo:
2
Počet PoE+ portů:
16
Popis TP-Link TL-SL1218MP ver.2 16xFE 2xGb 2xSFP Unmanaged CCTV Switch 150W POE+
16-portový 10/100Mb/s + 2-portový gigabitový Unmanaged PoE Switch *16 portů RJ45 PoE + 10/100Mb/s, 2 gigabitové porty RJ45 a 2 kombinované gigabitové SFP sloty. *Přenos dat a napájení až do vzdálenosti 250 m v režimu prodloužení speciálně navrženého pro dohledový systém. *Prioritní režim pro port 1-8, který zaručuje kvalitu citlivých aplikací, jako je například video monitor. *Vysoký výkon PoE napájení, až 30 W pro každý PoE port a 194 W pro všechny PoE porty. *Snadné použití bez nutnosti konfigurace a instalace. *Tento switch není kompatibilní s produkty EAP225 v3 a EAP225-Outdoor v3
Technické parametry
HARDWARE FEATURES *Interface: -16 PoE+ 10/100Mbps RJ45 Ports -2 10/100/1000Mbps RJ45 Ports -2 Combo Gigabit SFP Slots *Network Media: -10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -100BASE-TX: UTP category 5, 5e cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-X MMF, SMF *Fan Quantity: 2 Fans *Power Supply: 100-240V AC, 50/60 Hz *Backup Bandwidth: 7.2 Gbps *PoE+ Ports(RJ45): -Standard: 802.3at/802.3af compliant -PoE Ports: Port1- Port16 -PoE Power Budget: 192W *Mac Address Table: 8K *Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) *Max Power Consumption: -18.73 W (220/50Hz. no PD connected) -217.22 W (220/50Hz. with 192W PD connected) *Max Heat Dissipation: -63.89 BTU/h (no PD connected) -741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES *Advanced Features: -Compatible With IEEE 802.3at/af Compliant PDs -Port Priority Mode -Extend Mode (Up to 250m PoE power supply and data transmission) -Mac Address Auto-Learning And Auto-Aging -IEEE802.3x Flow Control *Transmission Method: Store-And-Forward
OTHERS *Certification: CE, FCC, RoHS *Package Contents: TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings *Environment: -Operating Temperature: 0°C~40°C (32°F~104°F) -Storage Temperature: -40°C~70°C (-40°F~158°F) -Operating Humidity: 10% ~ 90% non-condensing -Storage Humidity: 5%~90% non-condensing
Technické parametry
HARDWARE FEATURES *Interface: -16 PoE+ 10/100Mbps RJ45 Ports -2 10/100/1000Mbps RJ45 Ports -2 Combo Gigabit SFP Slots *Network Media: -10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -100BASE-TX: UTP category 5, 5e cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-X MMF, SMF *Fan Quantity: 2 Fans *Power Supply: 100-240V AC, 50/60 Hz *Backup Bandwidth: 7.2 Gbps *PoE+ Ports(RJ45): -Standard: 802.3at/802.3af compliant -PoE Ports: Port1- Port16 -PoE Power Budget: 192W *Mac Address Table: 8K *Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) *Max Power Consumption: -18.73 W (220/50Hz. no PD connected) -217.22 W (220/50Hz. with 192W PD connected) *Max Heat Dissipation: -63.89 BTU/h (no PD connected) -741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES *Advanced Features: -Compatible With IEEE 802.3at/af Compliant PDs -Port Priority Mode -Extend Mode (Up to 250m PoE power supply and data transmission) -Mac Address Auto-Learning And Auto-Aging -IEEE802.3x Flow Control *Transmission Method: Store-And-Forward
OTHERS *Certification: CE, FCC, RoHS *Package Contents: TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings *Environment: -Operating Temperature: 0°C~40°C (32°F~104°F) -Storage Temperature: -40°C~70°C (-40°F~158°F) -Operating Humidity: 10% ~ 90% non-condensing -Storage Humidity: 5%~90% non-condensing
