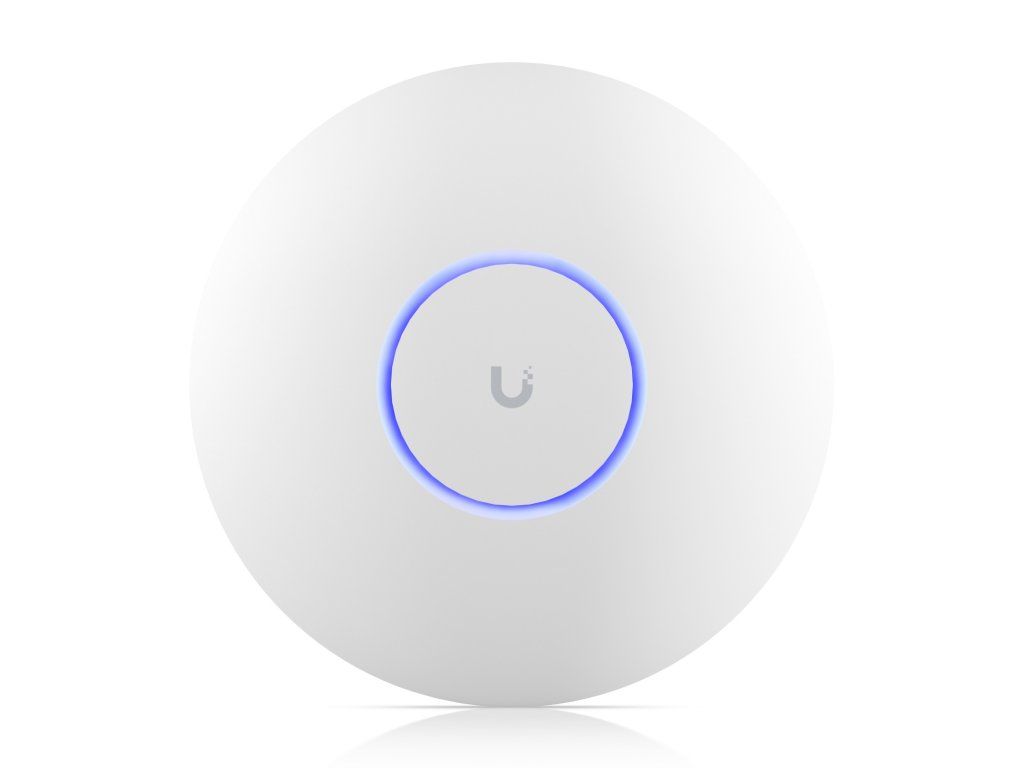

Ubiquiti U7-Pro - UniFi7 AP Pro WiFi 7

WiFi 7 AP pro interiérové použití se 6 samostatnými streamy a přidaným vysílacím pásmem 6GHz

- WiFi 7
- 6 samostatných streamů
- pokrytí 140 m²
- 300+ samostatných připojených klientů
- napájení přes POE+
- 2.5 GbE uplink
- montážní držák na zeď / strop

Technical Specifications
Overview
Dimensions   O206 x 46 mm
WiFi Standard   WiFi 7
Spatial Streams   6
Coverage Area   140 m² (1,500 ft²)
Max. Client Count   300+
Uplink   2.5 GbE
Mounting   Ceiling, Wall  (Pro Mount Included)
Power Method  PoE+
Performance
MIMO
6 GHz   2 x 2 (DL/UL MU-MIMO)
5 GHz   2 x 2 (DL/UL MU-MIMO)
2.4 GHz   2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz   5.8 Gbps (BW320)
5 GHz   4.3 Gbps (BW240)
2.4 GHz   688 Mbps (BW40)
Antenna Gain
6 GHz   5.8 dBi
5 GHz   6 dBi
2.4 GHz   4 dBi
Max. TX Power
6 GHz   23 dBm
5 GHz   26 dBm
2.4 GHz   22 dBm
Max. BSSIDs   8 per Radio
Supported Data Rates
802.11be (WiFi 7)   7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)   7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)   6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n   6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)


Features
Wireless Meshing  Yes
Band Steering   Yes
802.11v BSS Transition Management   Yes
802.11r Fast Roaming   Yes
802.11k Radio Resource Management (RRM)   Yes
Advanced Radio Management   Yes
Passpoint (Hotspot 2.0)   Yes
Captive Hotspot Portal
Custom Branding Landing Page   Yes
Voucher Authentication   Yes
Payment-Based Authentication  Yes
External Portal Server Support   Yes
Password Authentication   Yes
Guest Network Isolation   Yes
Private Pre-Shared Key (PPSK)   Yes
WiFi Speed Limiting   Yes
Client Device Isolation   Yes
WiFi Schedules   Yes
RADIUS over TLS (RadSec)   Yes
Dynamic RADIUS-assigned VLAN   Yes

Hardware
Max. Power Consumption   21W
Supported Voltage Range   44—57V DC
Networking Interface   (1) 1/2.5 GbE RJ45 port
Weight   680 g (1.5 lb)
Management   Ethernet
Enclosure Material   Polycarbonate, metal
Mount Material   Stainless steel (SUS304), galvanized steel (SGCC)
LEDs  System   White/Blue
Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant  Yes
Certifications   CE, FCC, IC
Operating Frequency   US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Ambient Operating Temperature   -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity   5 to 95% noncondensing
Software
Application Requirements   UniFi Network   Version 8.0.28 and later
