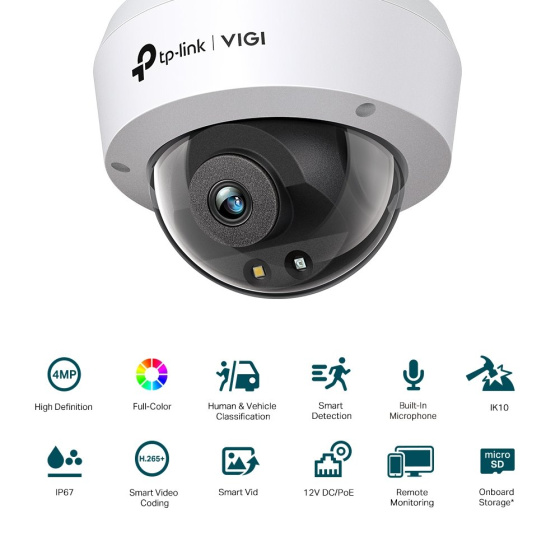

VIGI C240(4mm) 4MP barevná Dome Network Camera

VIGI C240(4mm)

---

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each methods, as well as onboard storage with SD card slot.

---

Features 4 MPx vysoké rozlišení *Nepřetržité barevné snímání (Full-Color): *Rozlišení osob a vozidel *Inteligentní detekce *Integrovaný mikrofon: *Odolnost proti vandalismu IK10 a voděodolnost IP67 *H.265+ *Chytré vylepšení videa *PoE /12V DC *Flexibilní správa a úložiště

---

Specifications

CAMERA Image Sensor *1/3'' Progressive Scan CMOS Minimum Illumination *Color: 0.005 Lux, 0 Lux with IR/White Light Day/Night Mechanism *IR Cut Filter Lens *4 mm Aperture *F1.6 Lens Mount *M12 Viewing Angle *Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9° Pan/Tilt Range *Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° Weatherproof Rating *IP67 Digital Noise Reduction *3D DNR WDR *DWDR

ILLUMINATOR IR LED *Quantity: 1 *Range: 30m *Wavelength: 850nm White LED *Quantity: 1 *Range: 30m

NETWORK Security *Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Protocol *TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS API *ONVIF Simultaneous Live View *3 Main Streams & 3 Sub-Streams Client *VIGI App, VIGI Security Manager, VIGI NVR, Web

INTERFACES Network Interface *1 RJ45 10/100M Self-Adaptive Ethernet Port On-board Storage *Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB Built-in Microphone *Yes

GENERAL Package Contents *VIGI Network Camera *Quick Start Guide *Waterproof Cable Attachments *Mounting Accessories Operating Temperature *-30–60 °C Dimensions( H X W X D ) *115 × 115 × 86 mm Material *Plastic General Features *Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Supply *12V DC ± 5%, 5.5mm Coaxial Power Plug *PoE (802.3af/at, class 0) Power Consumption *12V DC: Max 5.4W *PoE: Class 0 Vandal Resistant *IK10 Certifications *CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE Video Compression *Main Stream: H.265+/H.265/H.264+/H.264 *Sub-Stream: H.265/H.264 *Frame Rate & Resolutions Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 640x480,352x288, 320x240 Max. Resolution *4MP (2560 × 1440) Video Streaming *Main Stream, Sub-Stream Image Settings *Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement *BLC/3D DNR/HLC/SmartIR Video Bit Rate *64 Kbps to 4 Mbps Day/Night Switch *Day/Night/Auto/Schedule
