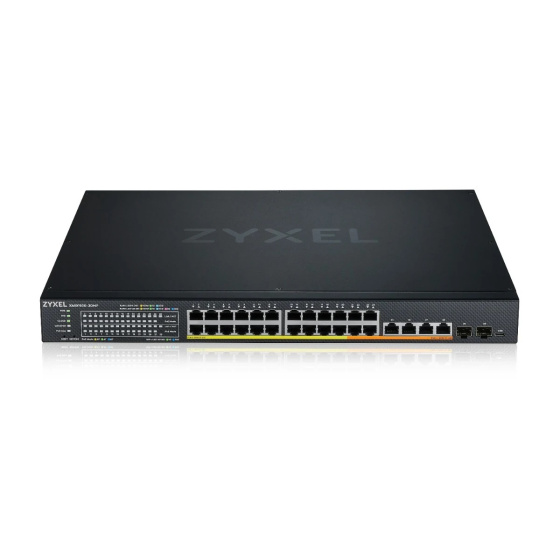

ZYXEL XMG1930-30HP 24port,2,5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch
Kód: XMG1930-30HP-ZZ0101FSkladom: 1 ks
Termín a spôsob doručenia
Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet + 10 GbE porty; Maximálny počet portov:48, 52; Management:Web; Vlastnosti switche:Funkcia POE na portoch, Rozšíriteľnosťprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
XMG1930-30HP-ZZ0101F
EAN:
4718937622078
Záruka:
5 rokov
Stav:
Konektor HDMI:
ne
Konektor DisplayPort:
ne
HDMI (počet):
0 ks
DP (počet):
0 ks
Rýchlosť LAN max.:
10 gbps
Počet LAN portov:
28
Obsahuje switch:
ano
POE:
ano
Počet SFP+ portů:
2
Prevedenie switch:
do racku
Management:
managed switch
Fanless switch:
ne
POE standard:
802.3bt (max. 90w) - poe++
PoE In standard:
nepodporuje
PoE Out standard:
802.3bt (max. 90w) - poe++
PoE power budget (W):
501 a více
DP/mini DP (počet):
0
Popis ZYXEL XMG1930-30HP 24port,2,5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch
Description
Product name
24-Port 2.5G Multi-Gig Lite-L3 Smart Managed PoE++/PoE+ Switch with 6 10G Uplink
Port Density
Total port count
30
100M/1G/2.5G Ethernet (RJ-45)
24
1G/2.5G/5G/10G Ethernet (RJ-45)
4
1G SFP/10G SFP+
2
PoE
PoE ports
28
Total PoE budget (Watts)
700
IEEE 802.3at (PoE+)
Port 1 - 20
IEEE 802.3bt (PoE++, 60 W)
100M/1G/2.5G: Port 21 - 24
1G/2.5G/5G/10G: Port 25 - 28
Performance
Switching capacity (Gbps)
240
Forwarding rate (Mpps)
178.5
Packet buffer (byte)
2 MB
MAC address table
16 K
Jumbo frame (byte)
12 K
L3 forwarding table (Max. IPv4/Max. IPv6)
512/512
Routing table
32
IP interface
32/32
Flash/RAM
32 MB/256 MB
Power
Input
100 - 240 V AC, 50/60 Hz
Max. power consumption (watt)
864.1
Physical Specifications
Dimensions
(WxDxH)(mm/in.)
441 x 330 x 44/17.36 x 12.99 x 1.73
Weight
(kg/lb.)
4.85/10.69
Included accessories
Power cord
Power adapter
Rack mounting kit
ESD/Surge Protections
Product name
24-Port 2.5G Multi-Gig Lite-L3 Smart Managed PoE++/PoE+ Switch with 6 10G Uplink
Port Density
Total port count
30
100M/1G/2.5G Ethernet (RJ-45)
24
1G/2.5G/5G/10G Ethernet (RJ-45)
4
1G SFP/10G SFP+
2
PoE
PoE ports
28
Total PoE budget (Watts)
700
IEEE 802.3at (PoE+)
Port 1 - 20
IEEE 802.3bt (PoE++, 60 W)
100M/1G/2.5G: Port 21 - 24
1G/2.5G/5G/10G: Port 25 - 28
Performance
Switching capacity (Gbps)
240
Forwarding rate (Mpps)
178.5
Packet buffer (byte)
2 MB
MAC address table
16 K
Jumbo frame (byte)
12 K
L3 forwarding table (Max. IPv4/Max. IPv6)
512/512
Routing table
32
IP interface
32/32
Flash/RAM
32 MB/256 MB
Power
Input
100 - 240 V AC, 50/60 Hz
Max. power consumption (watt)
864.1
Physical Specifications
Dimensions
(WxDxH)(mm/in.)
441 x 330 x 44/17.36 x 12.99 x 1.73
Weight
(kg/lb.)
4.85/10.69
Included accessories
Power cord
Power adapter
Rack mounting kit
ESD/Surge Protections
