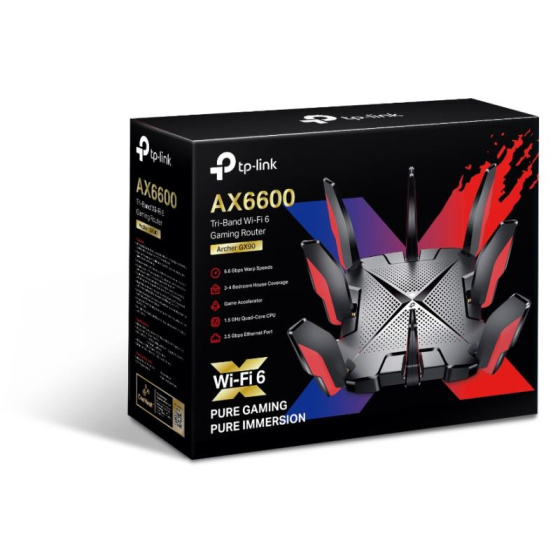

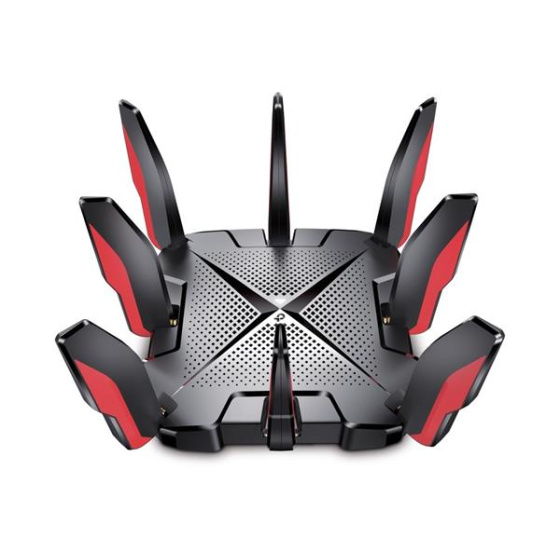

TP-Link Archer GX90 WiFi 6 TriBand Gaming router

Archer GX90

Trojpásmový herný Wi-Fi 6 router AX6600

Herné pásmo – trojpásmové prevedenie poskytuje 4,8 Gbit/s herné pásmo vyhradené pre vaše herné servery a umožňuje ničím nerušené hranie.

Herný akcelerátor – detekuje a optimalizuje herné streamy, aby ste mohli zostať ponorení v hernom svete.

Herné štatistiky - latencia v reálnom čase, doba hrania a vyhradené sieťové prostriedky prehľadne vo vyladenom užívateľskom rozhraní.

Herná ochrana – chráňte svoje účty a dokumenty so systémom zabezpečenia Homecare™.

Široké pokrytie – 8 antén, technológia Beamforming, výkonný modul FEM a 4T4R zaisťujú pokrytie Wi-Fi signálom až pre 5izbové domácnosti.

Káblové pripojenie 2,5 Gbit/s – odhaľte potenciál siete so šírkou pásma budúcej generácie vďaka portu 2,5 Gbit/s WAN/LAN.

Výkonný procesor – 1,5GHz štvorjadrový procesor je zárukou, že sieť vždy pobeží na plný výkon.

Jednoduché nastavenie – s prepracovanou aplikáciou Tether je nastavenie otázkou niekoľko málo minút.



WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX6600

5 GHz: 4804 Mbps (802.11ax, HE160)

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 4 Bedroom Houses

8× Detachable High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range



High-Power FEM

Improves transmission power to strengthen signal coverage



4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity Very High

Tri-Band

Allocate devices to different bands for optimal performance



4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients



OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients



Airtime Fairness

Improves network efficiency by limiting excessive occupation



DFS

Access an extra band to reduce congestion



8 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor 1.5 GHz Quad-Core CPU

Ethernet Ports 1× 2.5 Gbps WAN/LAN Port

1× Gigabit WAN/LAN Port

3× Gigabit LAN Ports

USB Support 1× USB 3.0 Port

1× USB 2.0 Port



Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32



Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power 12 V ? 5 A

SECURITY

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway



HomeCare™ Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network 2× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

SOFTWARE

Protocols IPv4

IPv6

Game Center Game Accelerator

Detects and optimizes gaming streams to keep latency as low as possible



Game Statistics

Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail



Game Protector

Keep your accounts and system safe with HomeCare™ antivirus protection

Service Kits HomeCare™

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeCare™ Parental Controls

Custom Profiles

Content Filtering

App Block

URL Filtering

Time Limit

Time Schedule (Bedtime)

Log Insight

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service Game Accelerator QoS.



QoS by Device



HomeCare™ QoS

QoS by Application

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 8.3 × 8.3 × 2.0 in

(212 × 212 × 51.8 mm)

Package Contents Wi-Fi Router Archer GX90

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser



Cable or DSL Modem (if needed)



Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm(2.4GHz)

<23dBm(5.15GHz~5.35GHz)

<30dBm(5.47GHz~5.725GHz)

FCC:

<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)

<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

WiFi Reception Sensitivity 5 GHz-1:

11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm

11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm

11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm

11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm

11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm

11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm

11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm

5 GHz-2 (Gaming Band):

11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm

11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm

11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm

11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm

11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm

11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm

11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm

11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm

11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm

2.4 GHz:

11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm

11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm

11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm

11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm

11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm

11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm

11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm
