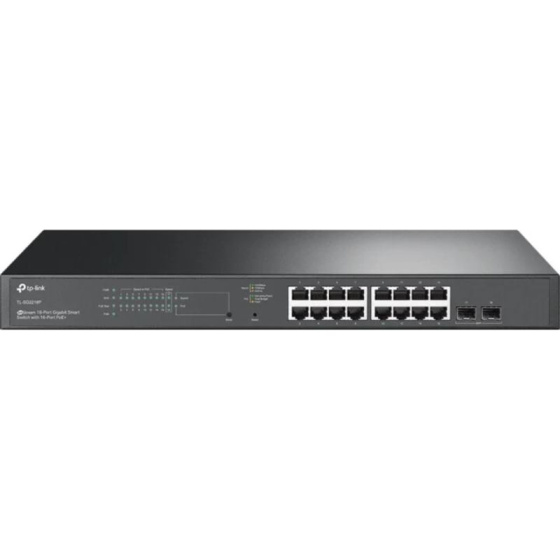

TP-Link TL-SG2218P 16xGb POE+ 2xSFP 150W smart switch Omada SDN

TL-SG2218P

18portový gigabitový inteligentný switch JetStream s 16 portami PoE+

PoE s rozpočtom napájania 150 W: 16 portov PoE+ vyhovujúcich štandardu 802.3at/af s celkovým napájacím výkonom 150 W*.

Plne gigabitové porty: 16 gigabitových portov PoE+ a 2 sloty SFP poskytujú vysokorýchlostné pripojenie.

Integrované do platformy Omada SDN: Funkcia ZTP (Zero-Touch Provisioning)**, centralizovaná cloudová správa a inteligentné monitorovanie

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchú správu.

Statické smerovanie: Pomáha smerovať tok dát po lokálnej sieti, čím zaisťuje efektívne využívanie sieťových prostriedkov.

Robustná stratégia zabezpečenia: Funkcia viazania na adresu IP-MAC, ACL, zabezpečenie portov, ochrana proti útokom DoS, funkcia Storm Control, funkcia DHCP Snooping, overovanie protokolom 802.1X a Radius a ďalšie funkcie.

Optimalizovaný prenos hlasu a videa v aplikáciách: L2/L3/L4 QoS a funkcie IGMP Snooping.

IPv6: Podpora protokolu IPv6 s duálnym zásobníkom IPv4/IPv6, MLD Snooping, IPv6 Neighbor Discovery.

Samostatná správa: Webové rozhranie, CLI (Telnet, SSH), SNMP, RMON a funkcia Dual Image prináša pokročilé možnosti správy.



HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface • 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

• 2× Gigabit SFP Slots

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

• 1000BASE-X: MMF, SMF

Fan Quantity 1

Power Supply 100-240V AC, 50/60Hz

PoE Ports (RJ45) • Standard: 802.3at/af compliant

• PoE+ Ports: 16 Ports

• PoE Power Budget: 150 W*

Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)

Mounting Rack Mountable

Max Power Consumption • 181.4 W (110 V/60 Hz) (with 150 W PD connected)

• 178.3 W (220 V/50 Hz) (with 150 W PD connected)

Max Heat Dissipation • 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected)

• 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)

PERFORMANCE

Switching Capacity 36 Gbps

Packet Forwarding Rate 26.78 Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port/Flow based Rating Limit

• Smoother Performance

• Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features • 16 IP Interfaces

- Support IPv4/IPv6 Interface

• Static Routing

- 32 IPv4/IPv6 Static Routes

• DHCP Server

• DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

• DHCP L2 Relay

• Static ARP

• Proxy ARP

• Gratuitous ARP

• Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports

per group

• Spanning Tree Protocol

- 802.1D STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter/Protect,

Root Protect

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Flow-Based

- Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED

VLAN • VLAN Group

- Max. 4K VLAN Groups

• 802.1Q tag VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN

• GVRP

• Voice VLAN

Access Control List • Support up to 230 entries

• Time-Range

- Time Slice

- Week Time-Range

- Absolute Time-Range

- Holiday

• Time-based ACL

• MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

• IP ACL

- Source IP

- Destination IP

- IP Protocol

- TCP Flag

- TCP/UDP Source Port

- TCP/UDP Destination Port

- DSCP/IP TOS

• IPv6 ACL

• Combined ACL

• Rule Operation

- Permit/Deny

• Policy Action

- Mirror

- Rate Limit

- Redirect

- QoS Remark

• ACL Rules Binding

- Port Binding

- VLAN Binding

• Actions for flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

Security • AAA

• 802.1X

- Port based authentication

- MAC (Host) based authentication

- Authentication Method includes PAP/EAP-MD5

- MAB

- Guest VLAN

- Support Radius authentication and

accountability

• IP/IPv6-MAC Binding

- 512 Binding Entries

- DHCP Snooping

- DHCPv6 Snooping

- ARP Inspection

- ND Detection

• IP Source Guard

- 253 Entries

- Source IP+Source MAC

• IPv6 Source Guard

- 183 Entries

- Source IPv6 Address+Source MAC

• DoS Defend

• Static/Dynamic/Permanent Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

• Port Isolation

• Secure web management through HTTPS with

SSLv3/TLS 1.2

• Secure Command Line Interface (CLI)

management with SSHv1/SSHv2

• IP/Port/MAC based access control

IPv6 • IPv6 Static Routing and ACL

• IPv6 Dual IPv4/IPv6

• IPv6 Interface

• Multicast Listener Discovery (MLD) Snooping

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP)

version 6

• TCPv6/UDPv6

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet(v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

Advanced Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

MIBs • MIB II (RFC1213)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIBs

• RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App Yes, through

• Omada Cloud-Based Controller

• OC300

• OC200

• Omada Software Controller

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller OC300

• Omada Hardware Controller OC200

• Omada Software Controller

Cloud Access Yes, through

• Omada Cloud-Based Controller

• OC300

• OC200

• Omada Software Controller

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller

Management Features • Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv1/v2c/v3

• SNMP Trap/Inform

• RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• SNTP

• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents TL-SG2218P

• Power Cord

• Installation Guide

• Rackmount Kit

• Rubber Feet

System Requirements Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: 0–50 ? (32–122 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
