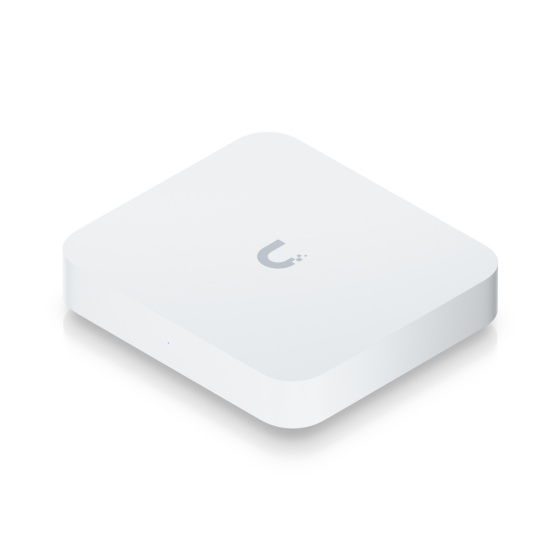

Ubiquiti UXG-Max - Gateway Max

Kompaktní, výkonná a multi-WAN UniFi brána s kompletní sadou bezpečnostních služeb IDS/IPS a pokročilými funkcemi směrování a zabepečení datového provozu.
Provoz na síti UniFi Network pro komplexní správu sítě.
WAN port 1x 2,5Gbps
LAN port 4x 2,5Gbps


Technical Specifications


Mechanical

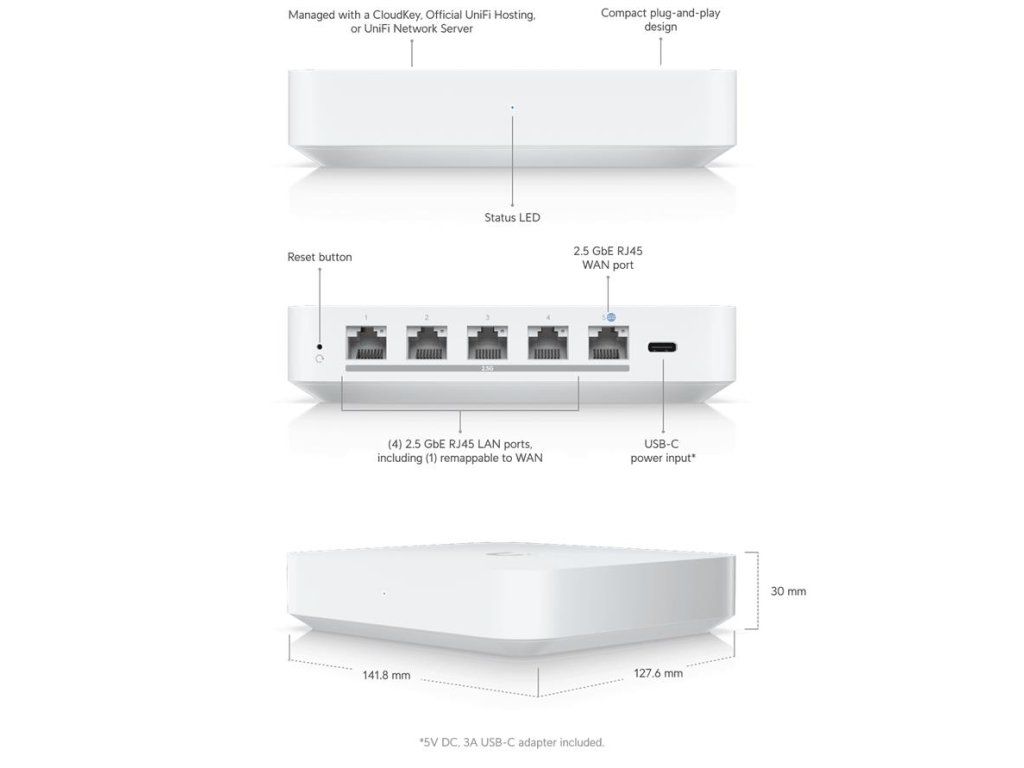

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight 520 g (1.1 lb)
Enclosure material Polycarbonate
Resistance IK04


Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
Memory information 2 GB DDR4
Management interface Ethernet
Bluetooth

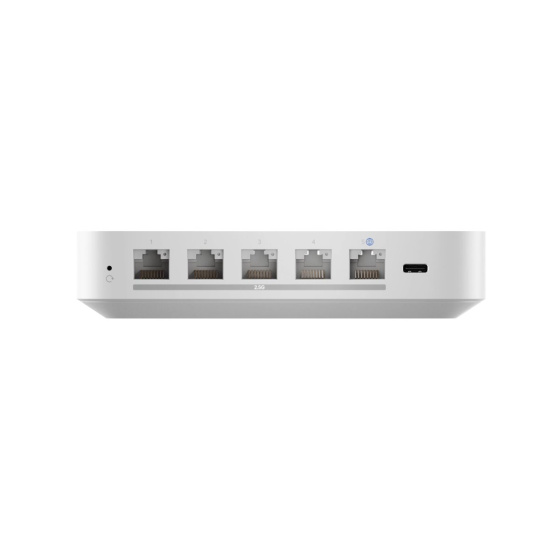

Networking interface
LAN:
(4) 2.5 GbE RJ45 ports

WAN:
(1) 2.5 GbE RJ45 port

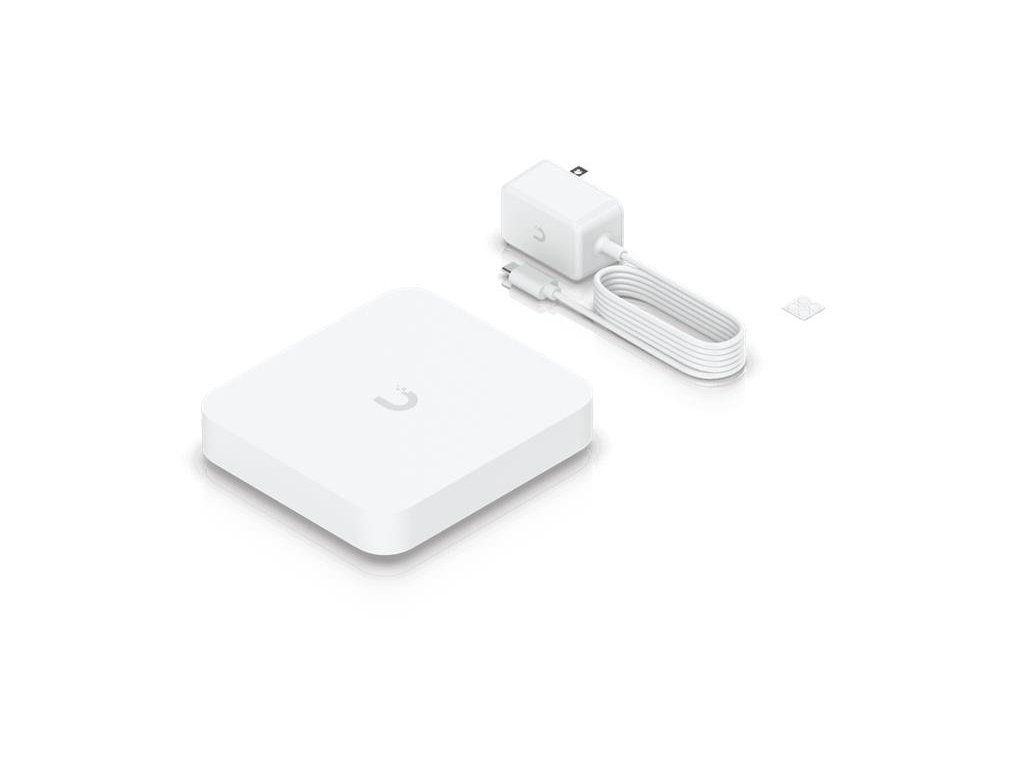

Power method USB type C (5V/3A)
Supported voltage range 100–240V
Max. power consumption 9.6W
LED Ethernet
White: link/activity
Button (1) Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

Gateway Features
Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support

*When paired with a Cloud Key or Official UniFi Hosting.
**When paired with a Cloud Key.

Application Requirements
UniFi Network  Version 8.1.113 and later
