Ubiquiti UniFi PowerAmp audio zesilovač (Dolby Atmos) černá

Mechanical

Dimensions

With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5")
Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")

Weight

2.4 kg (5.3 lb)

Enclosure material

Plastic

Mounting

Desktop

Color

Black
White

Hardware

Networking interface

(2) GbE RJ45 ports

WiFi standards

802.11 a/b/g/n/ac

Connectivity

WiFi 2.4G, BW 20/40 MHz
WiFi 5G, BW 20/40/80 MHz

Power method

(1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz

Power consumption

17W

LEDs

LED ring

LCM display

1.43" rotary knob with touchscreen

Button

Factory reset

Ambient operating temperature

-5 to 40° C (23 to 104° F)

Ambient operating humidity

5 to 90% noncondensing

Certifications

FCC, IC, CE

Audio

Per channel power (Continuous power)

130 W, 8 ?, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 ?, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)

Amplifier class

Class D

Output

Mono / Stereo sound

Surround format

Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM

Grouping

Up to 32 PowerAmps

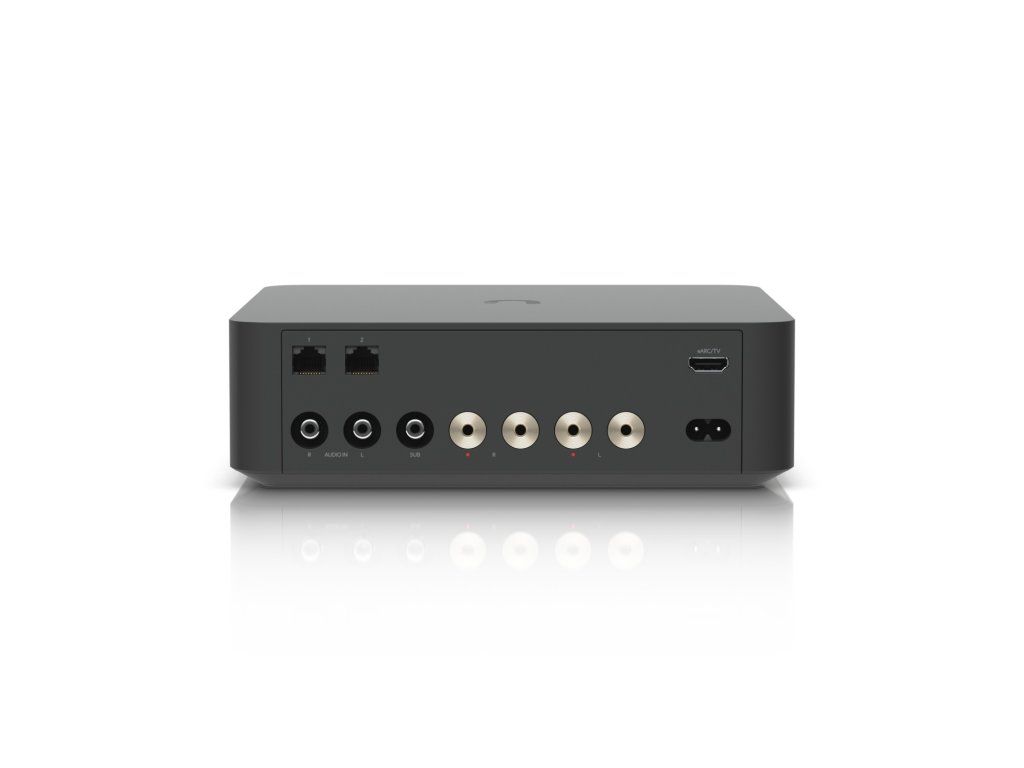

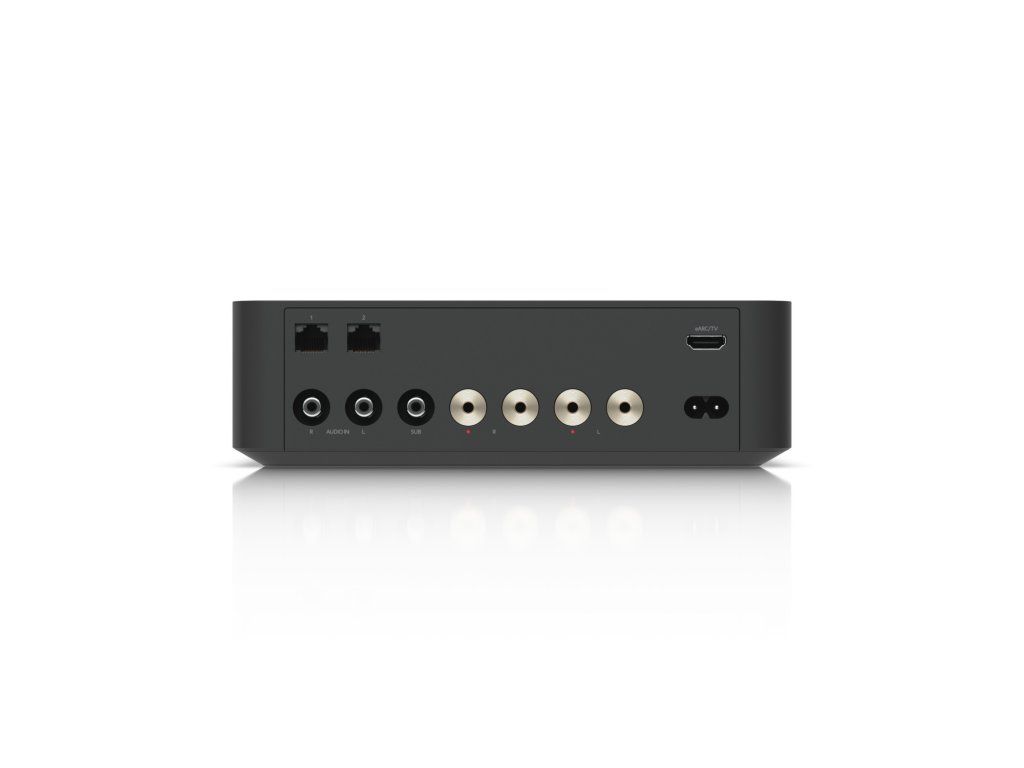

Audio input

(1) HDMI eARC input
(2) RCA analog inputs L/R

Audio output

(1) RCA analog subwoofer output
(2) Speaker terminal outputs with (2) banana plugs

Streaming

AirPlay2, Spotify Connect, Soundtrack Your Brand

Application Requirements

UniFi Play

UniFi Play iOS™ and Android™: Version 1.0.0 and later
