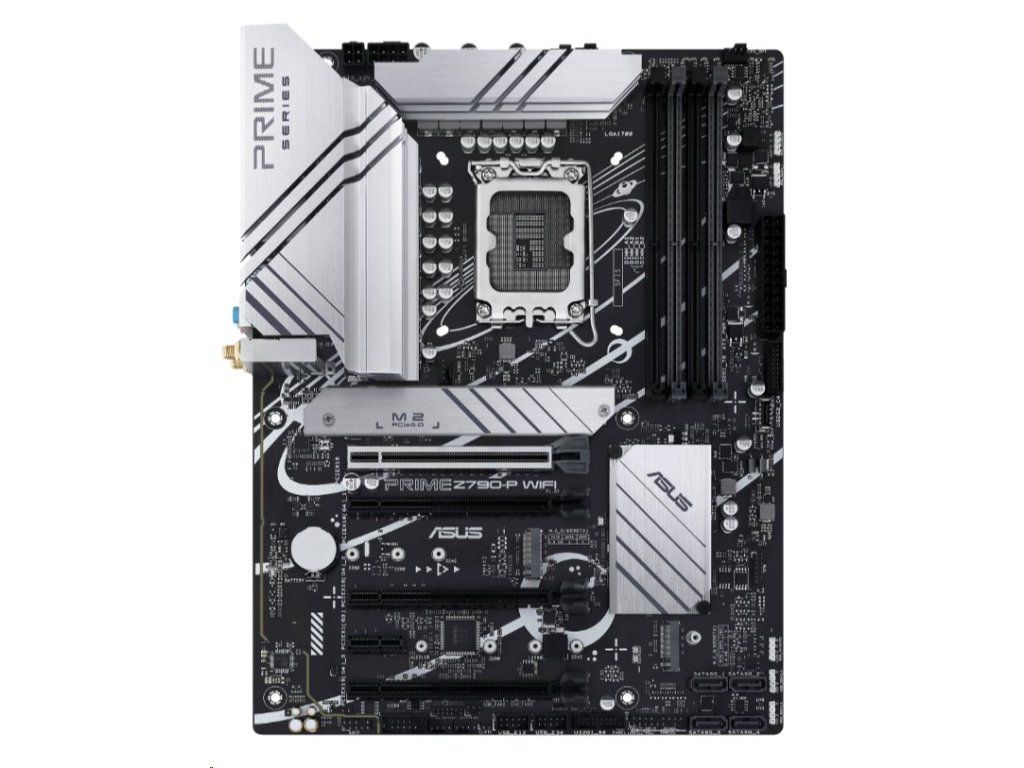

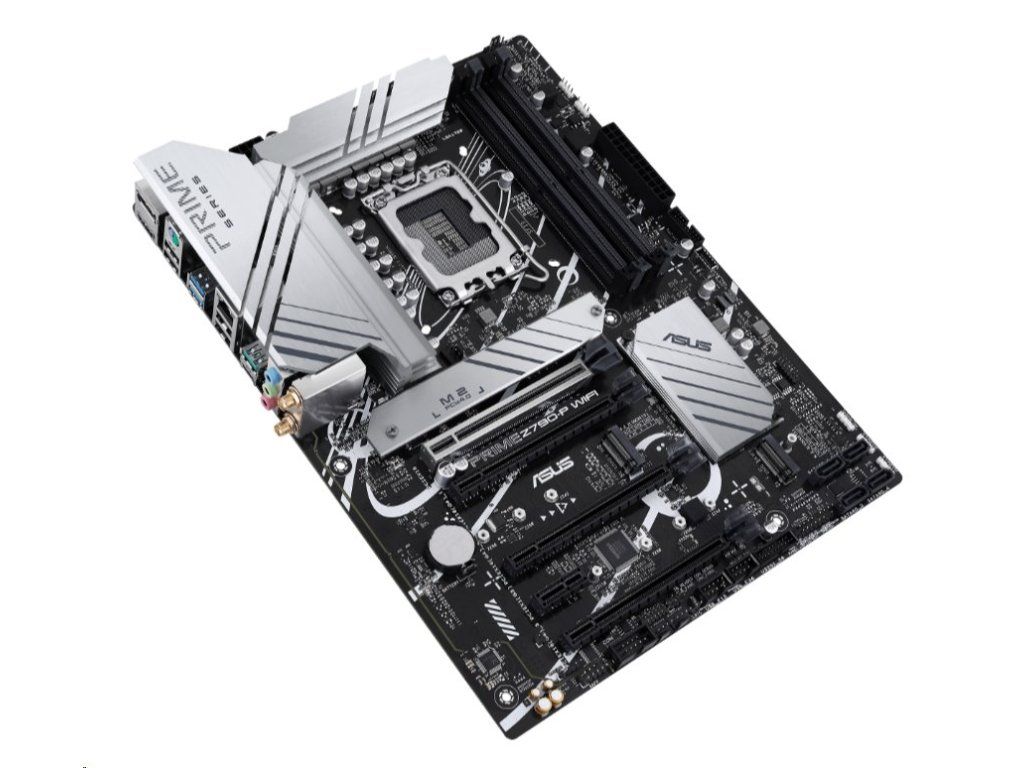

ASUS PRIME Z790-P WIFI, LGA 1700, ATX

Podrobný popis

Chipset: Intel Z790

Rozměrový formát: ATX

Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Pozice na paměti: 4 x DIMM

Podpora pro paměti: *4 x DIMM *Max. 128GB *DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory *Dual Channel Memory Architecture *Supports Intel Extreme Memory Profile (XMP) *OptiMem II

Max. velikost operační paměti: 128 GB

Grafické výstupy: ne (1x DisplayPort + 1x HDMI port)

Zvuková karta: *Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: *1 x Realtek 2.5Gb Ethernet *Wi-Fi 6 *2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) *Supports 2.4/5GHz frequency band *Bluetooth v5.2

Rozšiřujicí sloty: Intel 13th & 12th Gen Processors *1 x PCIe 5.0 x16 slot Intel Z790 Chipset *3 x PCIe 4.0 x16 slots (support x4 mode) *1 x PCIe 3.0 x1 slot

RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

SATA: *4 x SATA 6Gb/s ports

M.2: Intel 13th & 12th Gen Processors *M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

USB: zadní USB - celkem 8, přední USB - celkem 9 ZADNÍ *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *1 x USB 3.2 Gen 2 port (1 x Type-A) *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) PŘEDNÍ *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports

Interní porty: Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *1 x 4-pin +12V Power connector Storage related *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous *3 x Addressable Gen 2 headers *2 x Aura RGB headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x S/PDIF Out header *1 x SPI TPM header (14-1pin) *1 x 20-5pin System Panel header *1 x Thunderbolt (USB4) Header

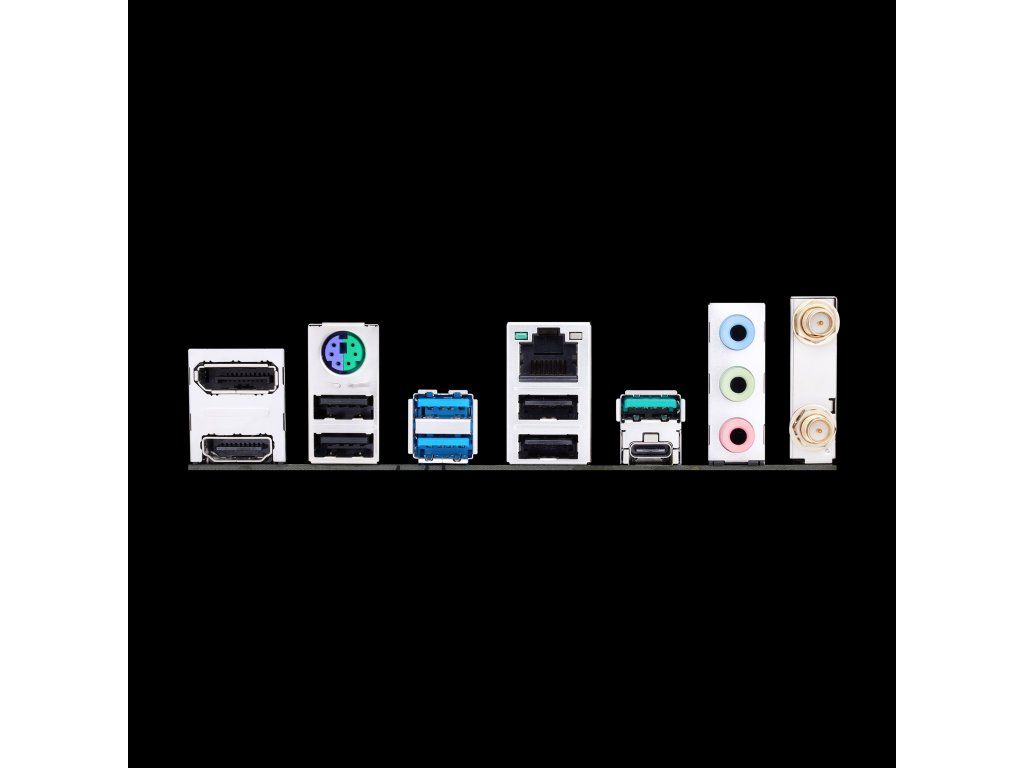

Externí porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *1 x USB 3.2 Gen 2 port (1 x Type-A) *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi Module *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard/Mouse combo port

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P-WIFI/
