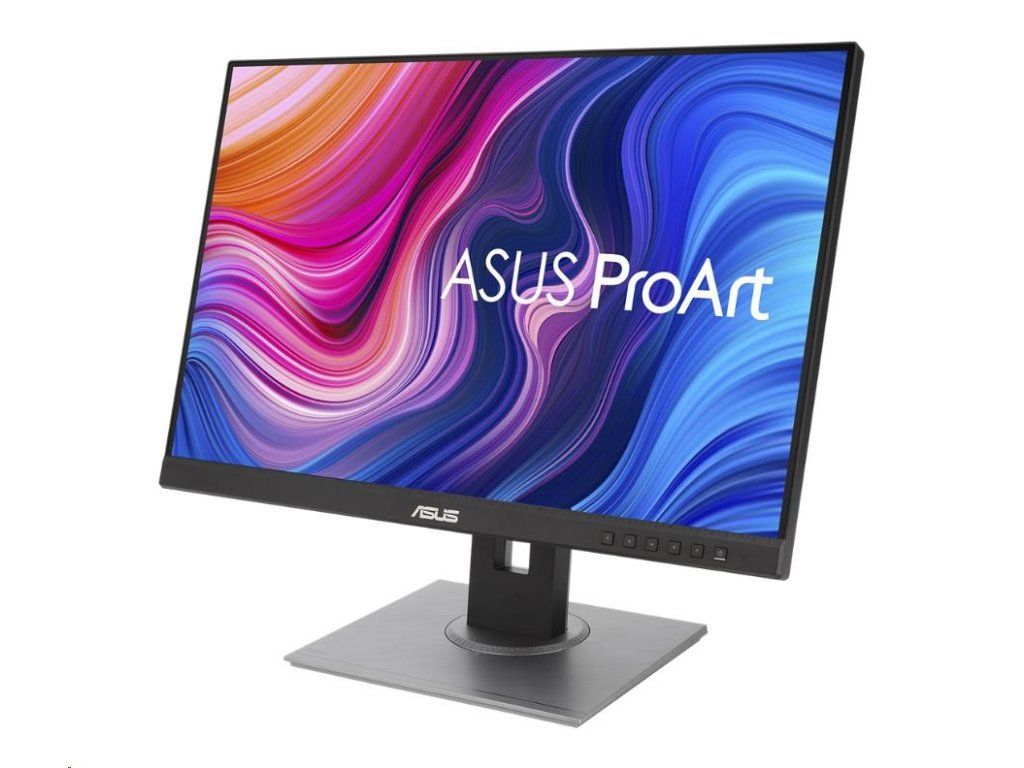

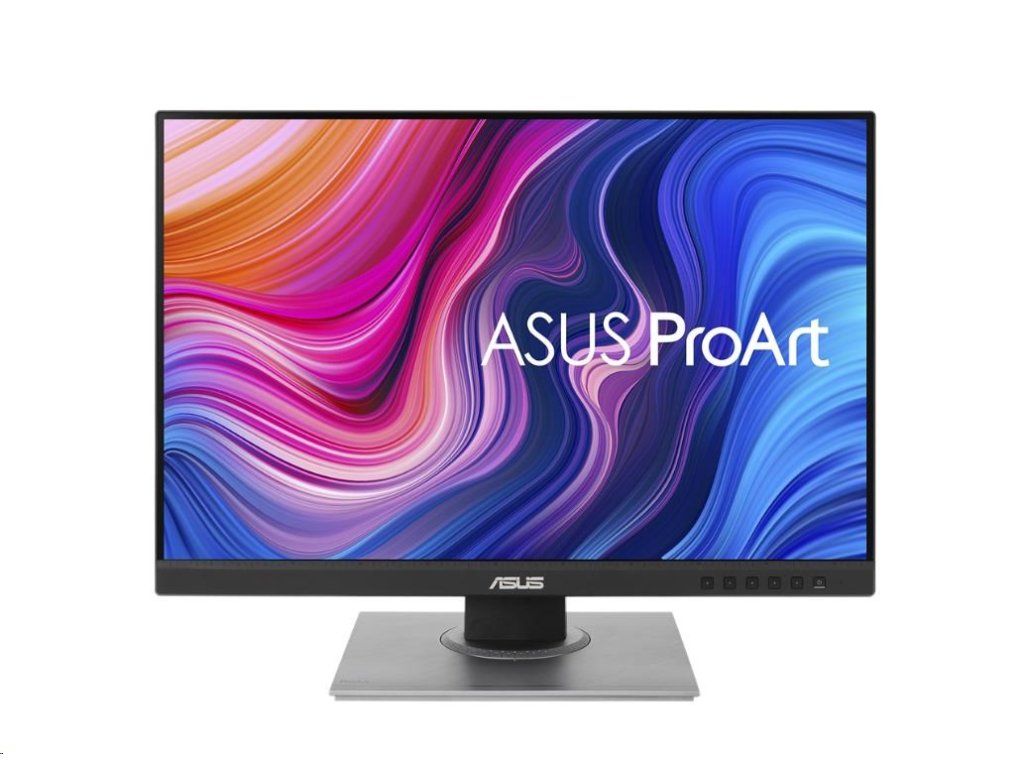

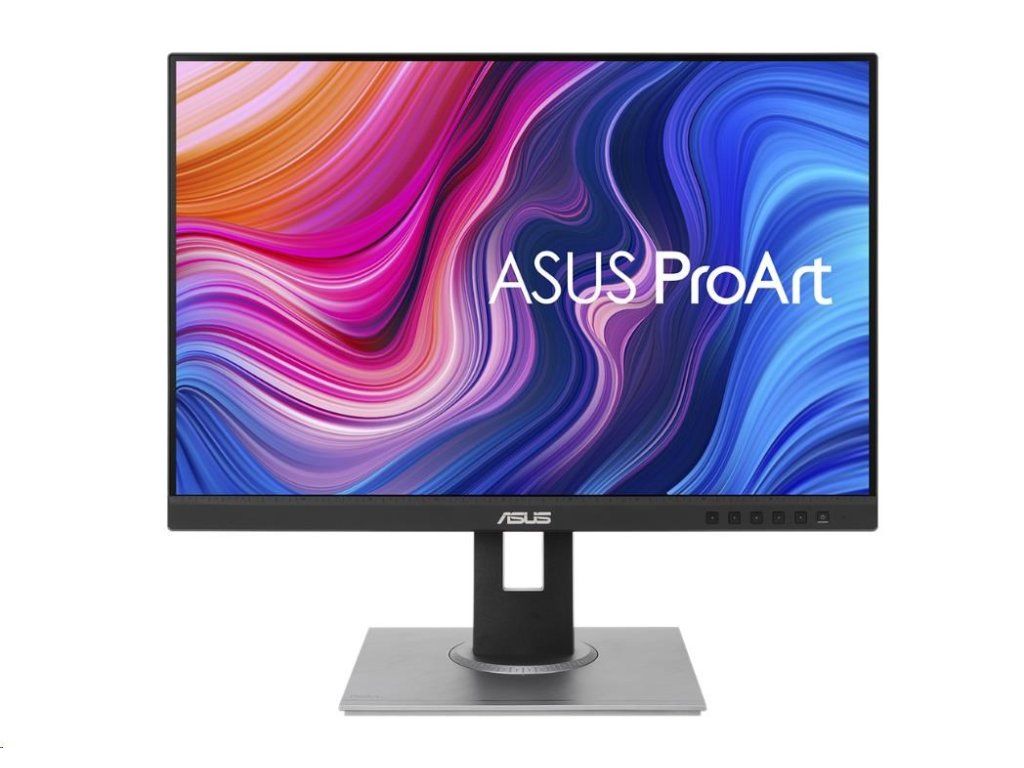

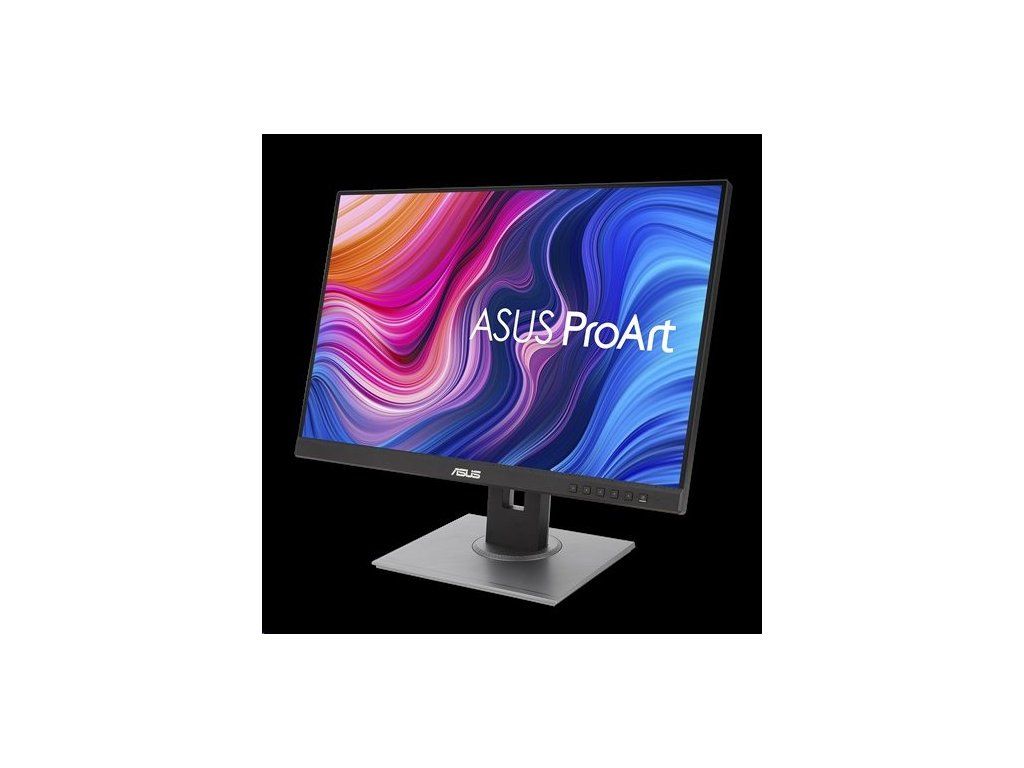

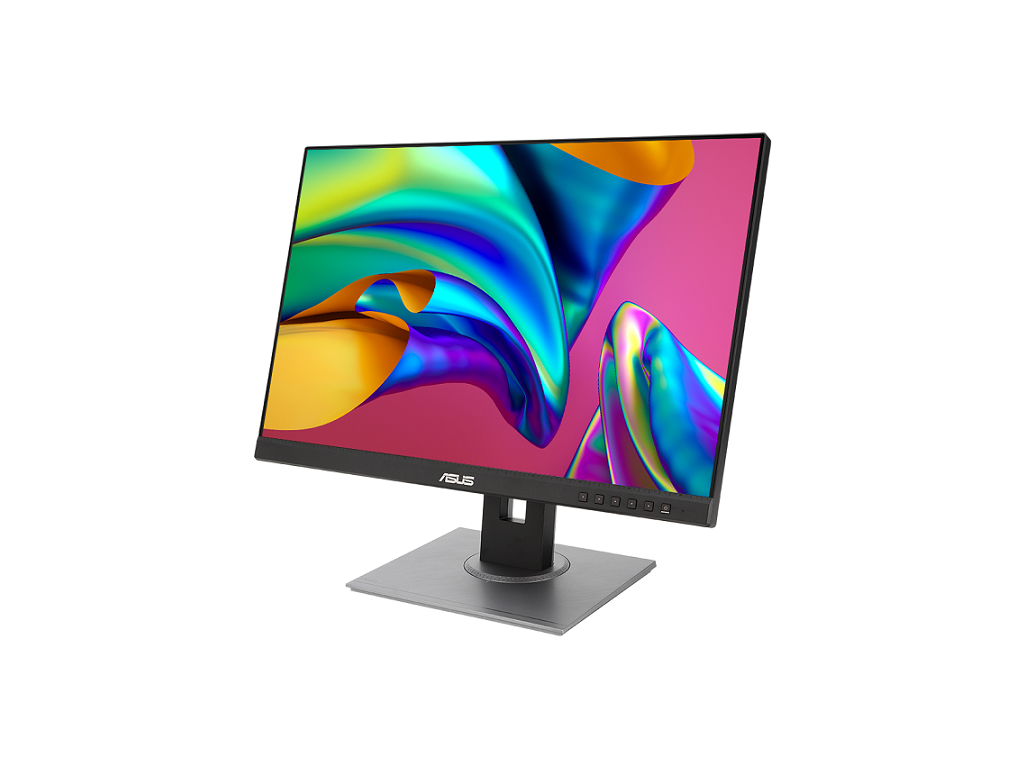

ASUS ProArt Display PA248QV Professional Monitor – 24.1-inch,
16:10, IPS, WUXGA (1920 x 1200), 100% sRGB, 100% Rec.709, Color
Accuracy ΔE < 2, Calman Verified, ProArt Preset, ProArt
Palette, Ergonomic Stand
24.1-inch 16:10 WUXGA (1920 x 1200) IPS display with frameless
design
International color standard 100% sRGB and 100% Rec. 709 wide color
gamut
Calman Verified with factory pre-calibrated for excellent color
accuracy (ΔE < 2)
ASUS exclusive ProArt Preset and ProArt Palette provides several
adjustable color parameters and preset modes
75Hz refresh rate and Adaptive-Sync technology (48~75Hz) to animated
content with fast action and eliminate screen tearing
Extensive connectivity with DisplayPort, HDMI, D-sub, Audio in,
Earphone jack plus four USB 3.0 ports for the most flexibility

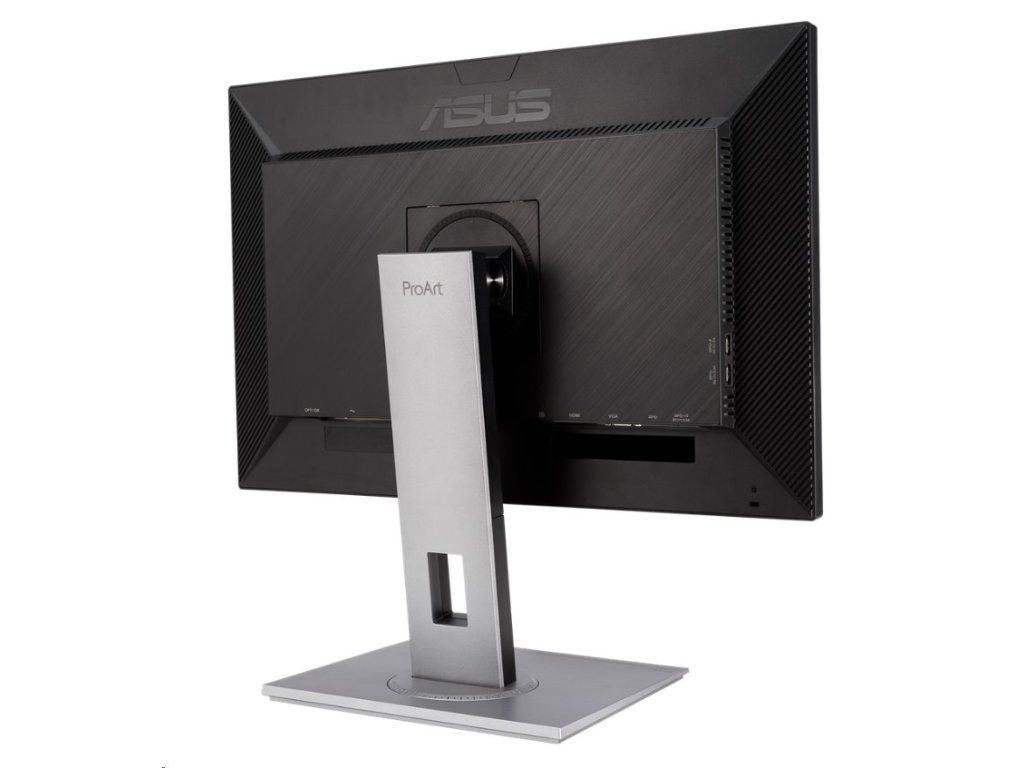

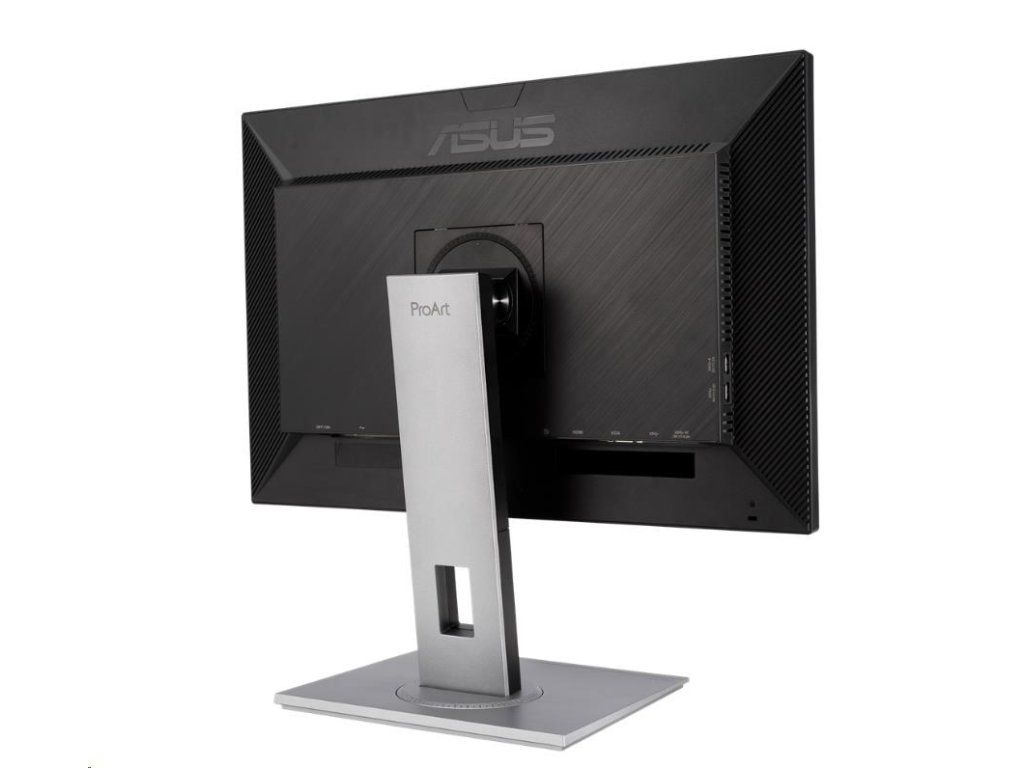

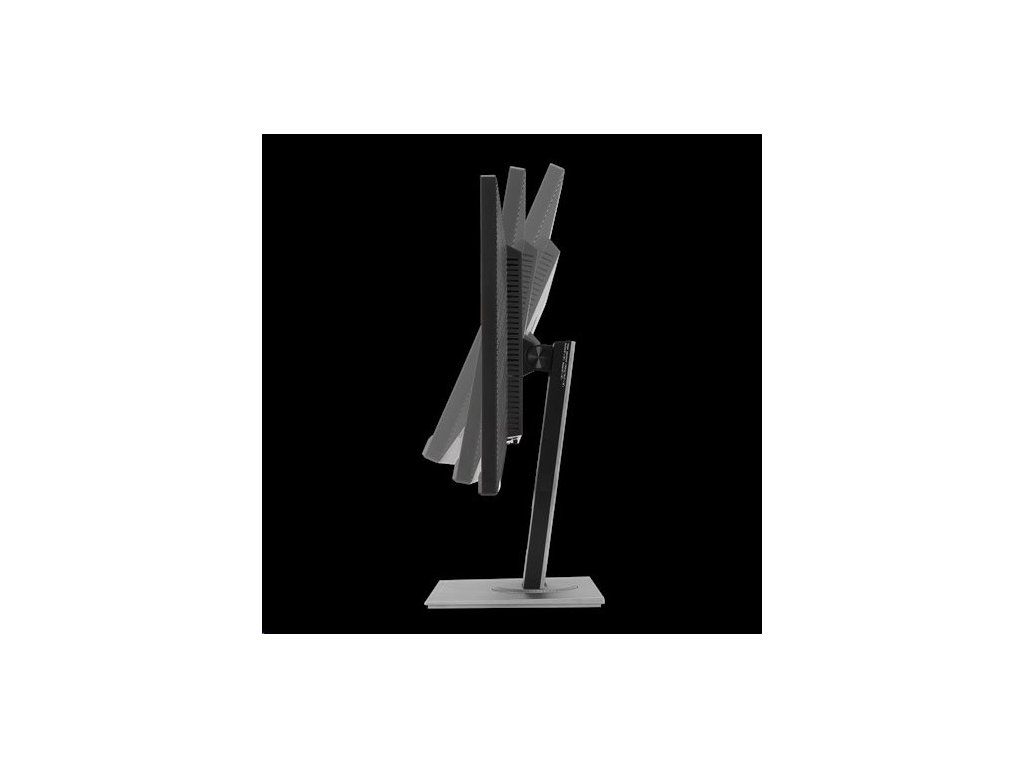

VESA wall-mountable and ergonomic design with tilt, swivel, pivot
and height adjustments for a comfortable viewing experience
3 year warranty for bright-dark dot
Display
Panel Size: Wide Screen 24.1"(61.13cm) 16:10
Color Saturation : 100% sRGB / 100% Rec. 709
Panel Type : IPS
True Resolution : 1920x1200
Display Viewing Area(HxV) : 518.4 x 324.0 mm
Display Surface : Non-glare
Pixel Pitch : 0.270mm
Brightness(Max) : 300 cd/㎡
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR≧10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 16.7M
Flicker free : Yes
Video Feature
Trace Free Technology : Yes
ProArt Preset : 9 Modes(sRGB Mode/Rec. 709 Mode/Scenery
Mode/Standard Mode/Rapid Rendering/User Mode 1/User Mode 2/Reading
Mode/Darkroom Mode)
ProArt Palette : Yes
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
Color Accuracy : △E< 2
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (Alignment Grid/Paper/Ruler Modes)
Low Blue Light : Yes
HDCP support : Yes, 1.4
Adaptive-Sync supported :Yes
Motion Sync: Yes
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
I/O Ports
Signal Input : HDMI, D-Sub, DisplayPort
PC Audio Input : 3.5mm Mini-Jack
Earphone jack : 3.5mm Mini-Jack
USB Port(s) : 3.0x4
Signal Frequency
Analog Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)
Digital Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)
Power Consumption
Power Consumption:<15W*
Power Saving Mode:<0.5W
Power Off Mode:0W(hard switch)
Voltage: 100–240V, 50 / 60 Hz
Mechanical Design
Chassis Colors : Black

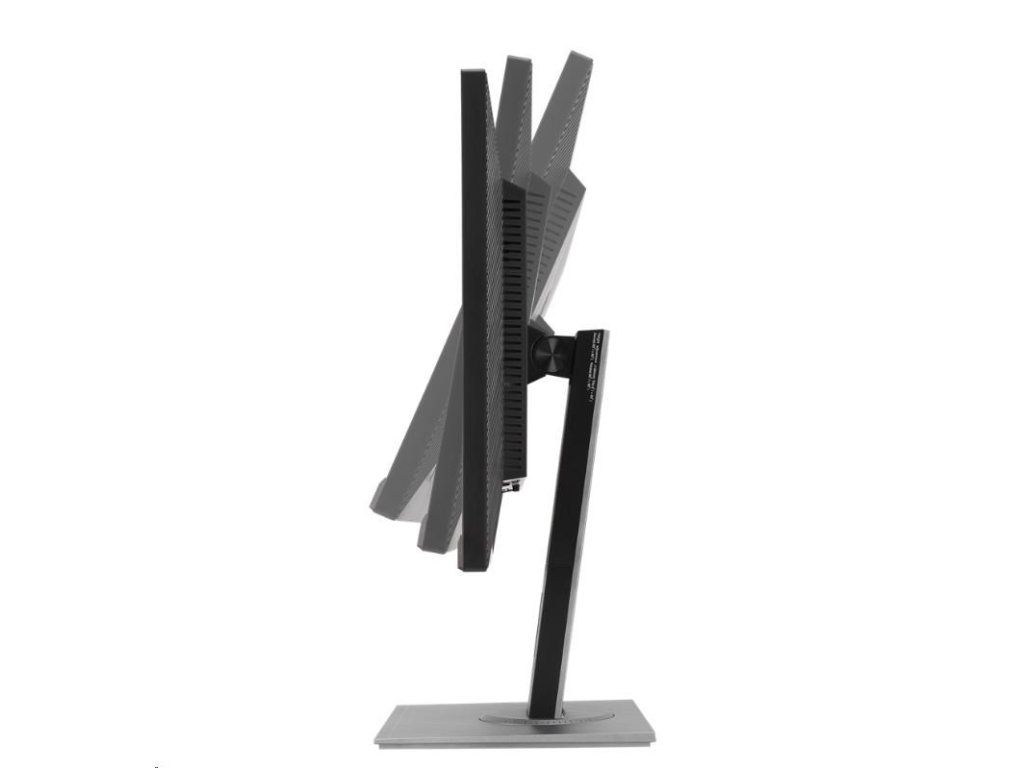

Tilt : -5°~+35°
Swivel : +90°~-90°

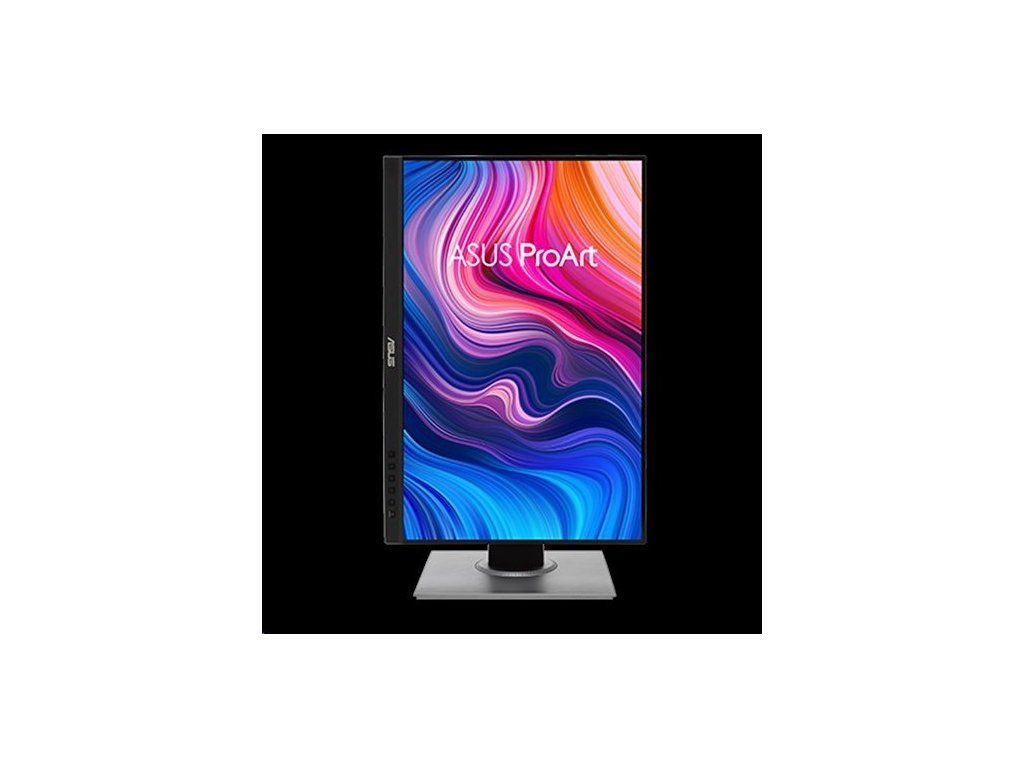

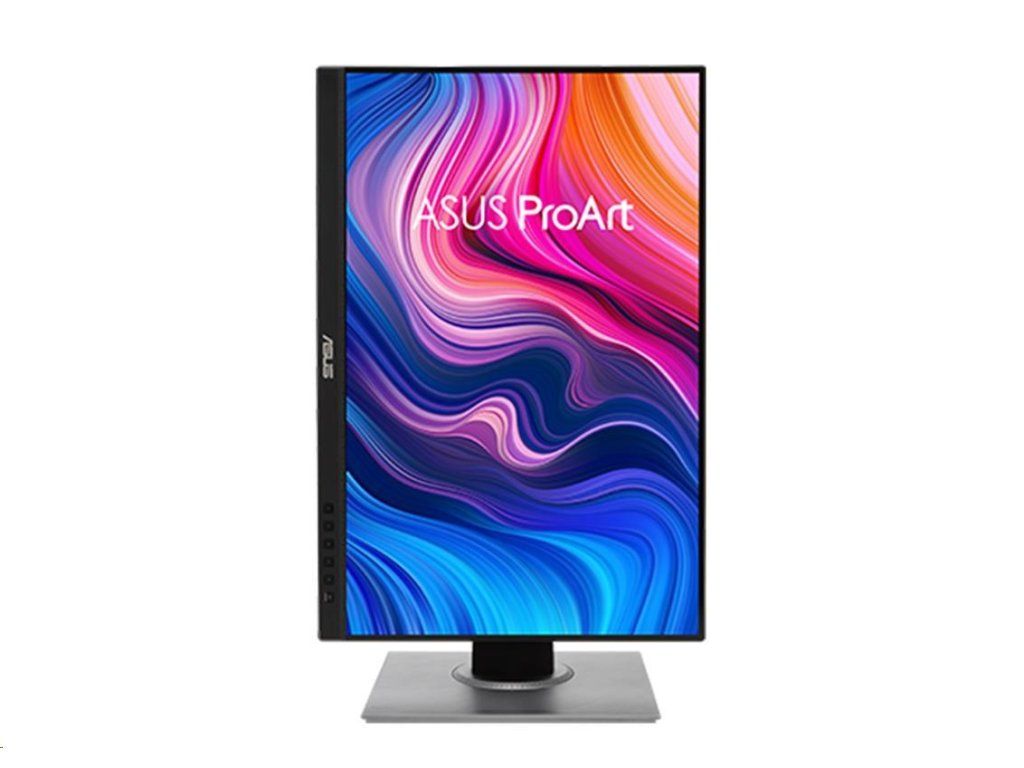

Pivot : +90°~-90°

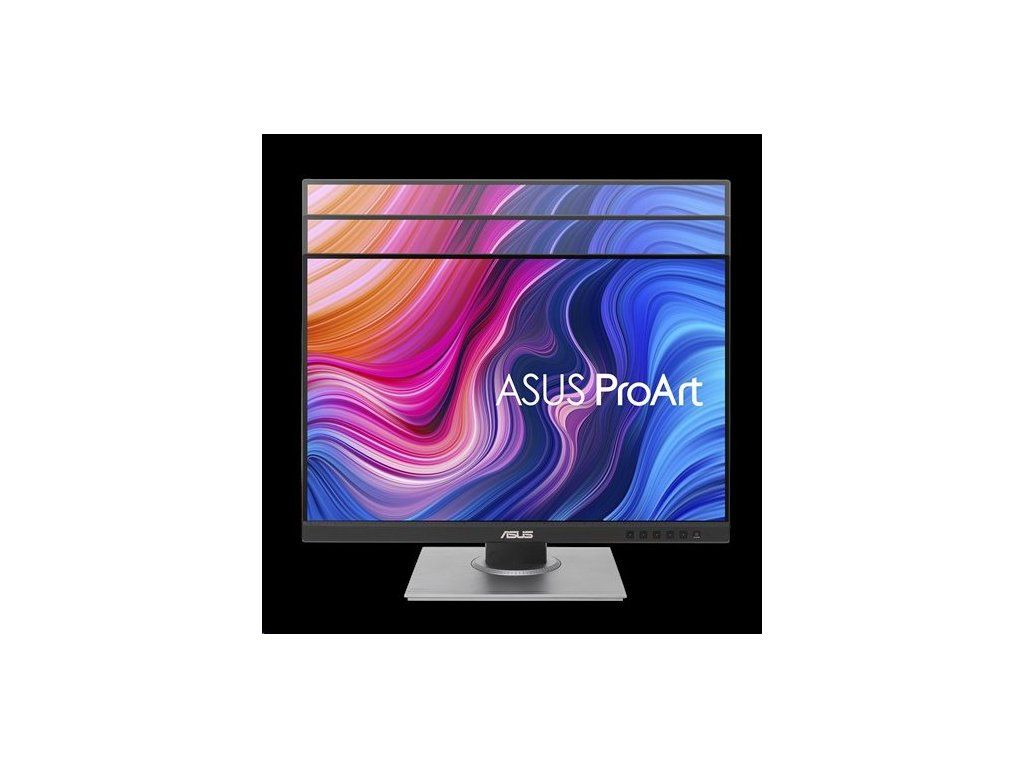

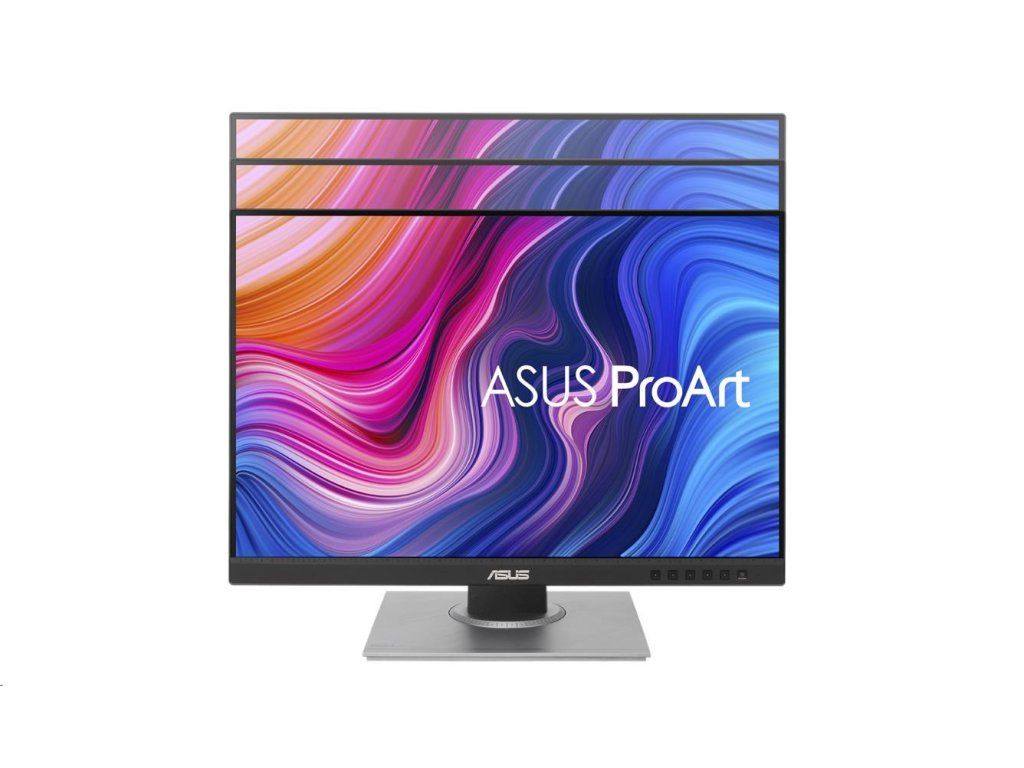

Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 533 x (375 - 505) x 211 mm
Phys. Dimension without Stand (WxHxD) : 533 x 360 x 47 mm
Box Dimension (WxHxD) : 649 x 474 x 192 mm
Weight
Net Weight (Esti.) : 6.1 kg, Without Stand (Esti.) : 3.9 Kg,
Gross Weight (Esti.) : 8.3 kg
Accessories
VGA cable(Optional)
Audio cable(Optional)
Power cord
DisplayPort cable (Optional)
USB cable(Optional)
Quick start guide
HDMI cable (Optional)
Warranty Card
Color pre-calibration report
Welcome Card
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ISO-9241-307, J-MOSS,
KCC, PSB, PSE, RoHS, TCO8.0, TUV-Ergo, TUV-GS, UL/cUL, VCCI, WEEE,
WHQL (Windows 10, Windows 7), MEPS, RCM, TUV Flicker-free , KC ,
eStandby, TUV Low Blue Light, ICES-3, PC recycle, CEC
Note
* Adaptive-Sync only can be activated within “48Hz ~ 75Hz” via HDMI
and DisplayPort ports
*To activate Rapid Rendering needs turn off Adaptive-Sync and only
be activated at 75Hz. Brightness, Blue Light Filter, ASCR, Trace
Free cannot be adjusted when using this function.
*measuring a screen brightness of 200 nits without audio/ USB/ Card
reader connection
