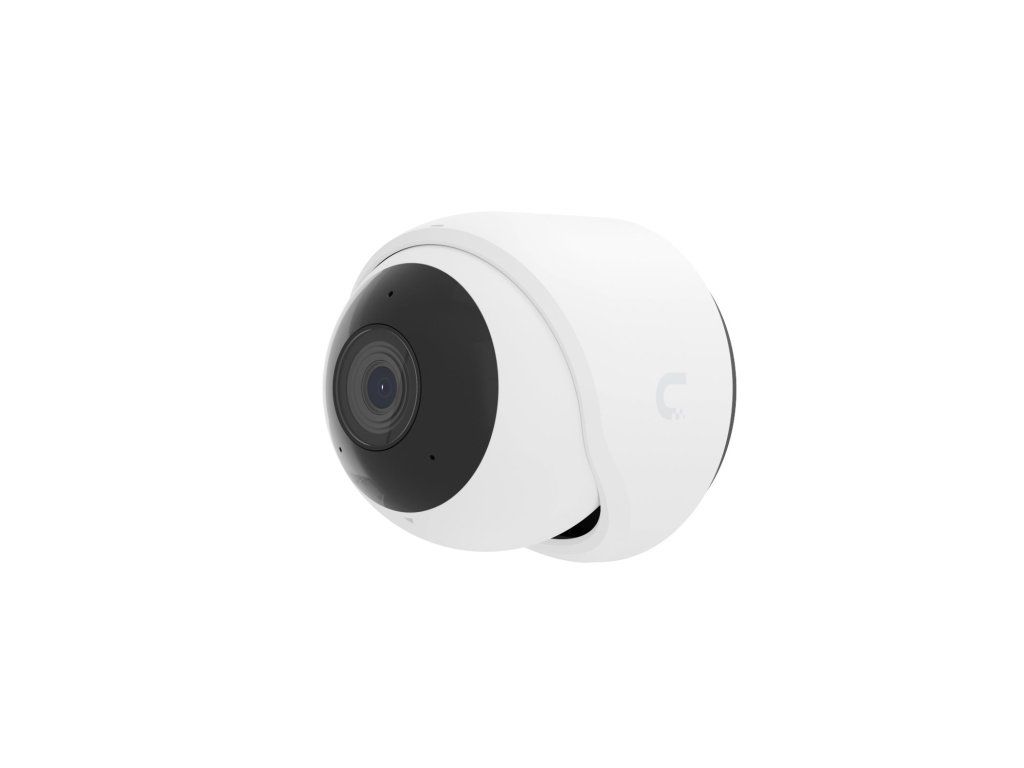

Ubiquiti All-weather, tamper-resistant 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and 3-axis ma

Technical Specifications

Mechanical

Dimensions O100 x 95 mm (O3.9 x 3.7")

Weight 550 g (1.2 lb)

Enclosure material Aluminum alloy, polycarbonate

Weatherproofing IP66

Resistance IK04

Cable jacket enclosure dimensions O20 x 70.6 mm (0.8 x 2.8")

Cable jacket enclosure materials Thermoplastic elastomer, polycarbonate, silicone rubber

Cable length 30 cm (1 ft)

Cable diameter 4.5 mm (0.2")

Cable jacket material Thermoplastic elastomer

Cable connector type RJ45



Optics

Sensor 1/1.8" 8MP

Lens Fixed focal length

View angle H: 109.9°, V: 56.7°, D: 134.1°

Night mode Built-in IR LED illumination and IR cut filter

IR distance 30 m (98 ft)



Video

Resolution 8MP 3864 x 2160 (16:9)

Max. frame rate 30 FPS

Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR



System

Processor Quad-core Arm® Cortex®-A53 based chip

Networking interface 10/100 MbE RJ45 port

Max. power consumption 12.5W

Power method PoE

Supported voltage range 37–57V DC

LED R/G/B/W

Button (1) Factory-reset

Mounting Ceiling, wall (Included)

Arm, pendant, junction box (Optional)

Ambient operating temperature -30 to 50° C (-22 to 122° F)

Ambient operating humidity 0 to 90% noncondensing

Certifications FCC, IC, CE



Audio

Microphone Yes (Can be disabled)



Software

Web application UniFi Protect

Mobile app UniFi Protect iOS™ and Android™
