Omada 8-Port Gigabit Industrial Easy Managed Switch 8× Gigabit Ports (6× RJ45, 2× RJ45, SFP Combo) Professional Industria

Podrobný popis

IES208G

Omada 8portový gigabitový priemyselný easy managed switch

8x gigabitových portov (6 krát; RJ45, 2 krát; RJ45/SFP Combo)

Profesionálne priemyselné prevedenie: -40~75°C prevádzková teplota, 6kV ochrana proti osvetleniu a 1+1 redundantný napájací vstup

Bohatá výbava: VLAN, QoS a STP/RSTP

Centralizovaná cloudová správa cez web alebo aplikáciu Omada†

Odolný hliníkový kryt s IP40 krytie a konštrukcia pre montáž na lištu DIN / stenu,



HARDWARE FEATURES

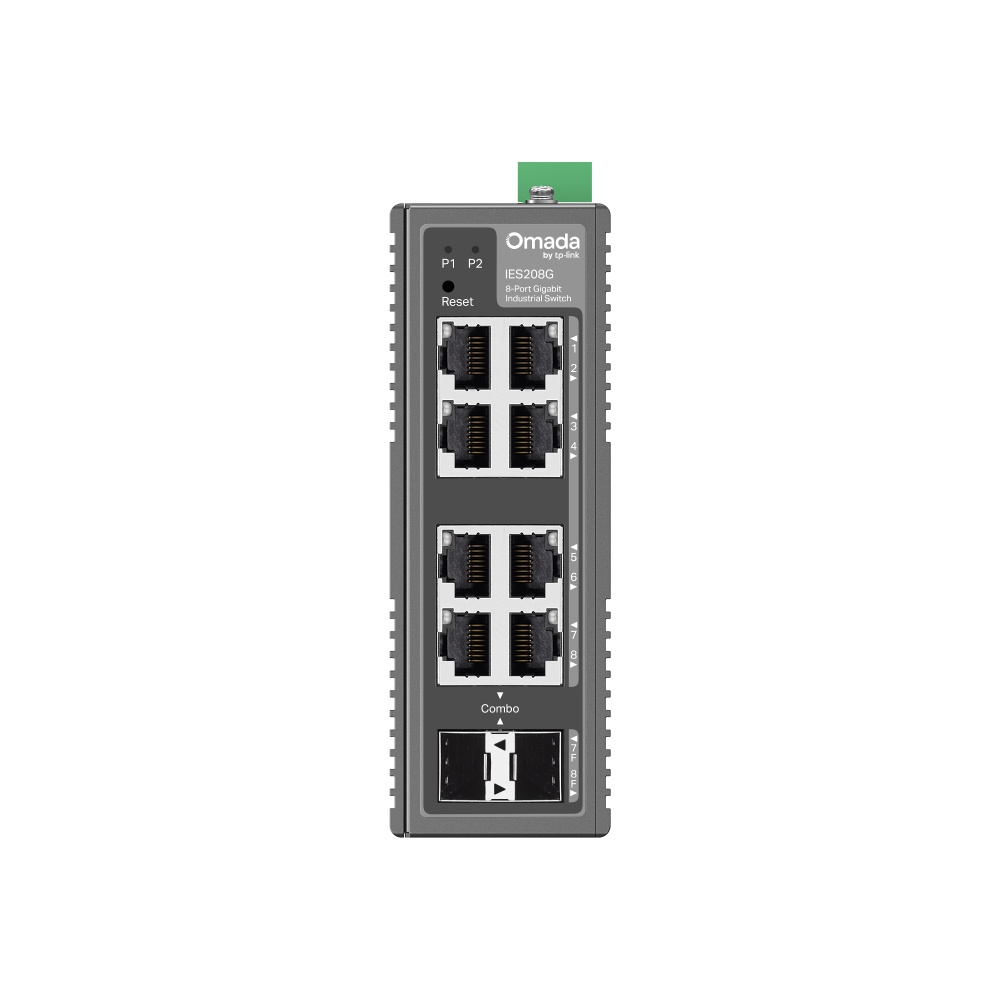

Interface • 6× 10/100/1000 Mbps RJ45 Ports

• 2× Gigabit SFP/RJ45 Combo Slots

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity Fanless

Installation • DIN-rail mounting

• Wall mounting

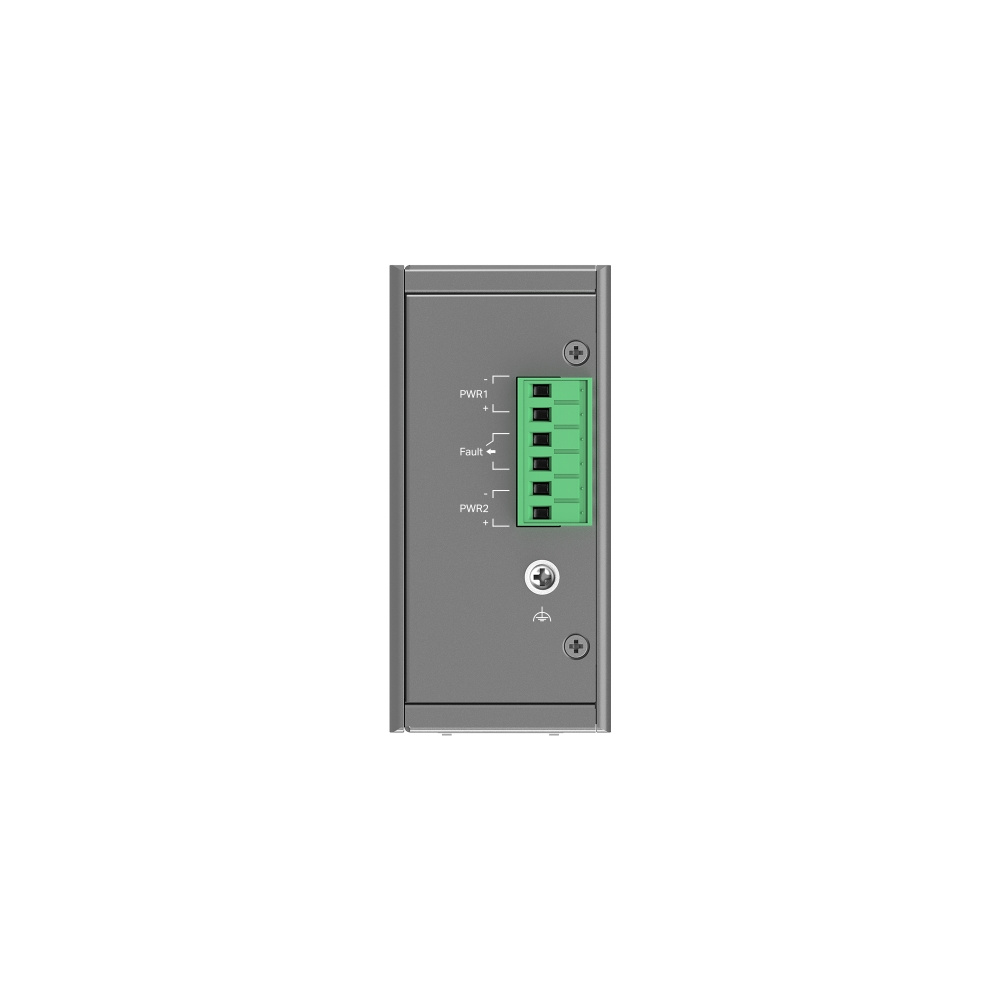

Power Supply 9.6-60V 1+1 Redundant DC Power Input

Dimensions ( W x D x H ) 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)

Surge Protection • ±6 kV in common mode for Ethernet ports

• ±4 kV in common mode for DC power input ports

PERFORMANCE

Switching Capacity 16 Gbps

Packet Forwarding Rate 11.9 Mpps

MAC Address Table 8K

Packet Buffer Memory 4 Mbit

Jumbo Frame 15 KB

SOFTWARE FEATURES

Quality of Service • 802.1p DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rate Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control

L2 Features • Link Aggregation

- Static Link Aggregation

- Up to 2 aggregation groups and up to 4 ports per group

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

• Spanning Tree

- STP (802.1d)

- RSTP (802.1w)

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN • MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method Store-And-Forward

Management Features

Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller

Management Features • Web-based GUI

• DHCP Client

• Cable Diagnostics

• Digital Diagnostic Monitoring (DDM)

• Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Unified Configuration†

OTHERS

Certification FCC, CE, RoHS

Package Content • IES208G

• DIN-Rail Mounting Bracket

• Wall-Mounting Plates

• Installation Guide

Environment • Operating Temperature: -40?~75? (-40?~167?)

• Storage Temperature: -40?~85? (-40?~185?)

• Operating Humidity: 5%~95% non-condensing

• Storage Humidity: 5%~95% non-condensing
