TP-Link EAP683 UR AX600 Wifi6 Access Point

EAP683 UR

Prístupový bod AX6000 Wi-Fi 6 pre montáž na strop

Až 5952 Mbps WiFi 6 rýchlosti: 1148 Mbps na 2,4 GHz + 4804 Mbps na 5 GHz†

Podporuje technológie WiFi 6, napríklad HE160 (160 MHz šírka kanálu), 1024-QAM atď.

Interné antény 4x4 MU-MIMO v oboch pásmach

Integrácia s platformou Omada SDN pre centralizovanú správu.

Pokročilé funkcie: Omada Mesh, Seamless Roaming a ďalšie.

1x 2,5 Gigabit Ethernet port

Napájanie PoE+: Podporuje 802.3at PoE+ a DC (adaptér nie je súčasťou balenia).

Kompaktný elegantný dizajn (220 mm x 220 mm x 32,5 mm)



HARDWARE FEATURES

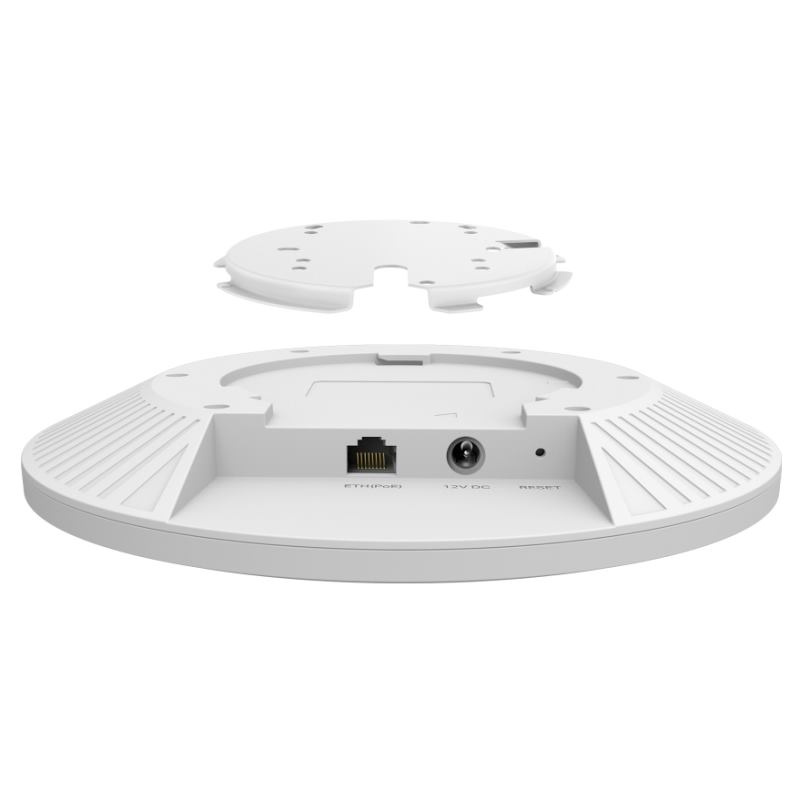

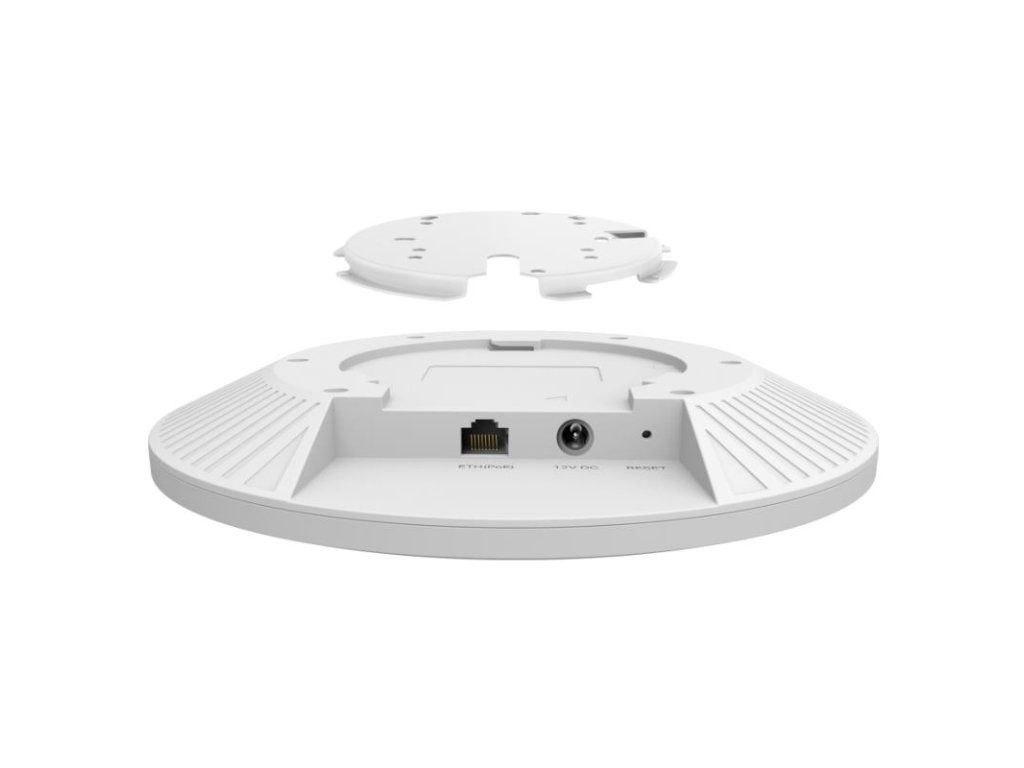

Interface 1× 2.5 Gigabit PoE+ Port

Button Reset

Power Supply • 802.3at PoE

• 12 V / 2 A DC



Note:Power adapter is not included.

Power Consumption • EU: 20.43W

• US: 23.69W

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type Internal Omni

• 2.4 GHz: 4× 4 dBi

• 5 GHz: 4× 5 dBi

Bluetooth Yes

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Coverage 185?(2000ft2)***

Concurrent Clients 510+**

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 4804 Mbps

• 2.4 GHz: Up to 1148 Mbps

Wireless Functions • 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• HE160 (160 MHz Bandwidth)‡

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE: <20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, band1 & band2, EIRP)

<28 dBm(5 GHz, band3, EIRP)



• FCC: <26 dBm (2.4 GHz)

<26 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.

OTHERS

Certification CE,FCC,RoHS

Package Contents • EAP683 UR

• Ceiling/Wall Mounting Kits

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
