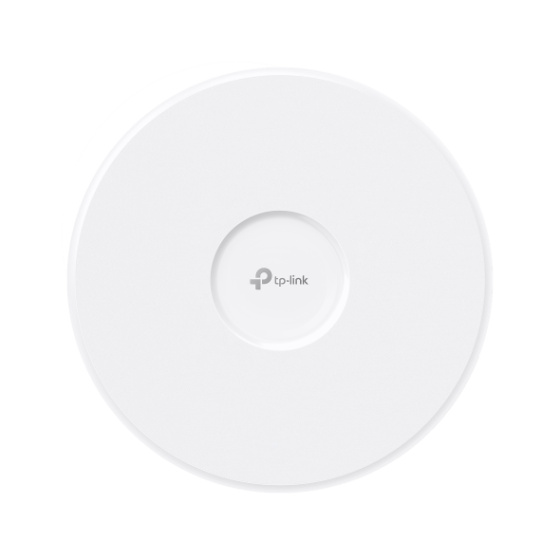

TP-Link EAP773 BE9300 WiFi7 Access Point

EAP773

Trojpásmový prístupový bod s Wi-Fi 7 BE9300 pre montáž na strop

Trojpásmový router s Wi-Fi 7 BE9300: 5760 Mbit/s (v pásme 6 GHz) + 2880 Mbit/s (v pásme 5 GHz) + 574 Mbit/s (v pásme 2,4 GHz). Zabudnite na problémy s vyrovnávacou pamäťou.†

1 port 10G: Odomknite plný potenciál siete Wi-Fi 7.

Nezahltené pásmo 6 GHz: Poskytuje voľnejšie a širšie pásmo pre pripojenie vašich Wi-Fi zariadení.

Šírka pásma 320 MHz: Šírka pásma až 320 MHz umožňuje oveľa väčší počet súbežných prenosov dát najvyššou možnou rýchlosťou.

Nízka latencia a rušenie: Technológia Multi-Link Operation a Multi-RU zaisťujú vysoký výkon siete.

Pokročilé funkcie: Podporujú centralizovanú správu, technológiu Mesh a AI roaming.



HARDWARE FEATURES

Interface 1× 10G Ethernet Port

Button Reset

Power Supply 802.3at PoE or 12V/2.5A DC

Power Consumption • 24.05 W (For PoE);

• 20.92 W (For DC)

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

• 6 GHz: 2× 5.0 dBi

Bluetooth 1 × 4.0 dBi, Bluetooth 5.2

*Firmware update may be required.

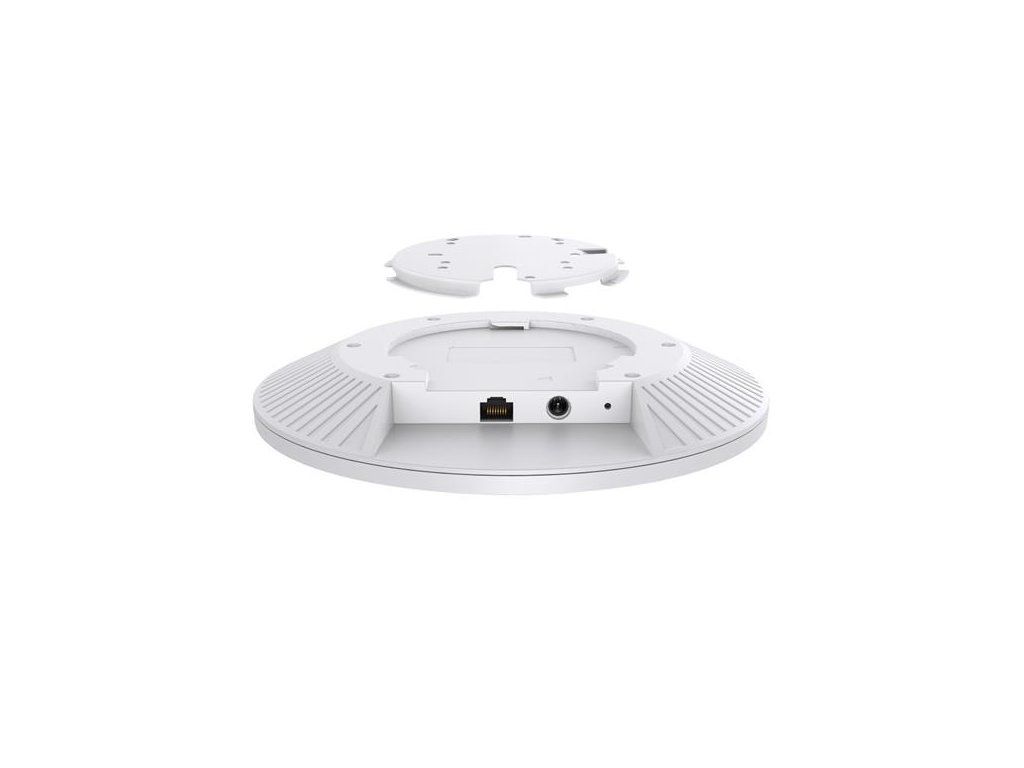

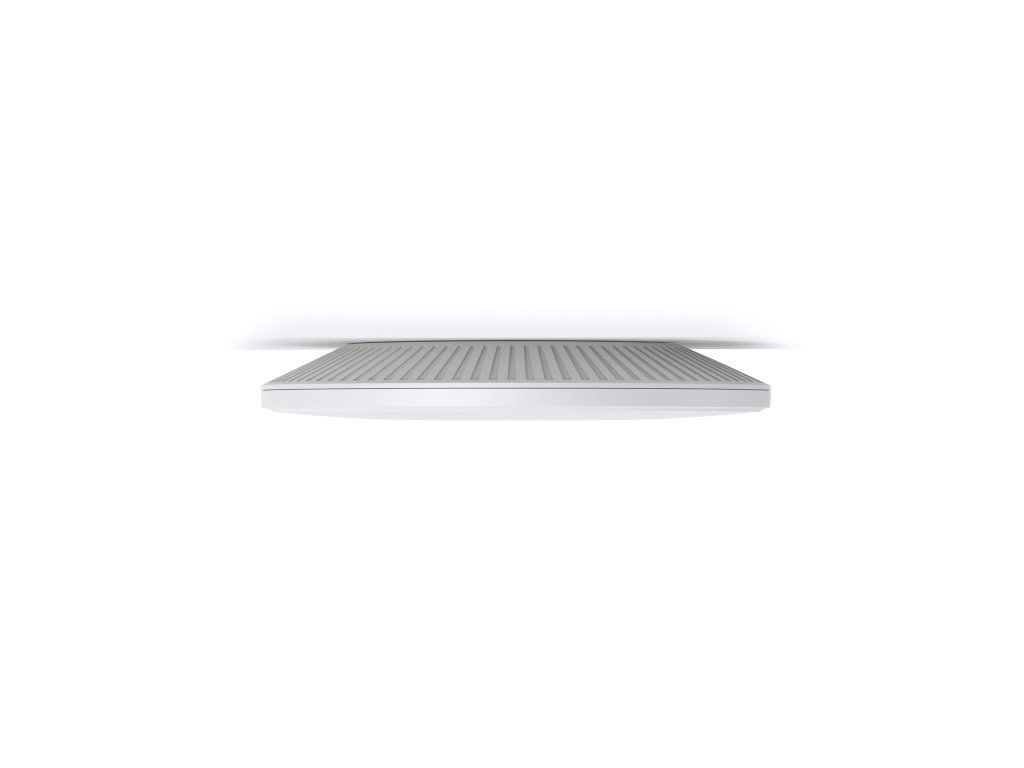

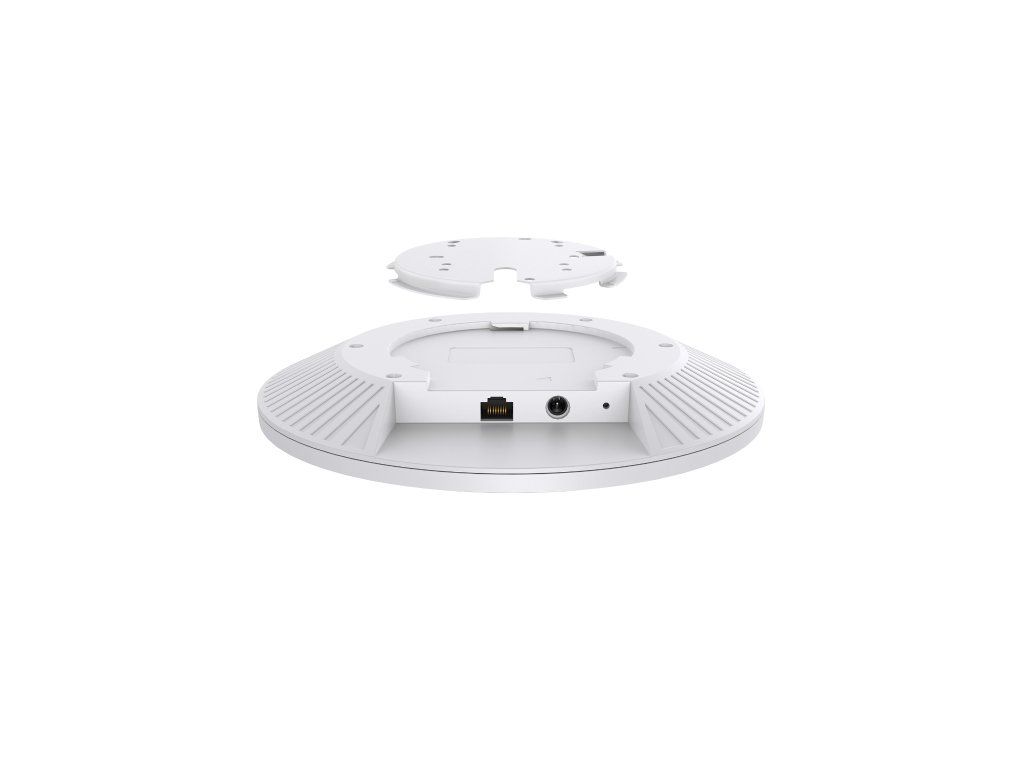

Mounting Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Coverage 140?(1500 ft2)§

Wireless Client Capacity 2 GHz: 128**

5 GHz: 128**

6 GHz: 128**

Concurrent Clients 380+**

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be

Frequency 6 GHz, 5 GHz, and 2.4 GHz

Signal Rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†

Wireless Functions • MLO‡

• 4K-QAM‡

• MU-MIMO‡

• HE320‡

• Mesh?

• BSS Coloring‡

• OFDMA‡

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:24(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

Wireless Security • Captive Portal Authentication?

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power < 25 dBm (2.4 GHz)

< 25 dBm (5 GHz)

< 23 dBm (6 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Yes

Web-based Management Yes

OTHERS

Certification CE, FCC, RoHS, IC

Package Contents • EAP773

• Installation Guide

• Ceiling/Wall Mounting Kits

Note: Power Adapter is NOT included.

Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
