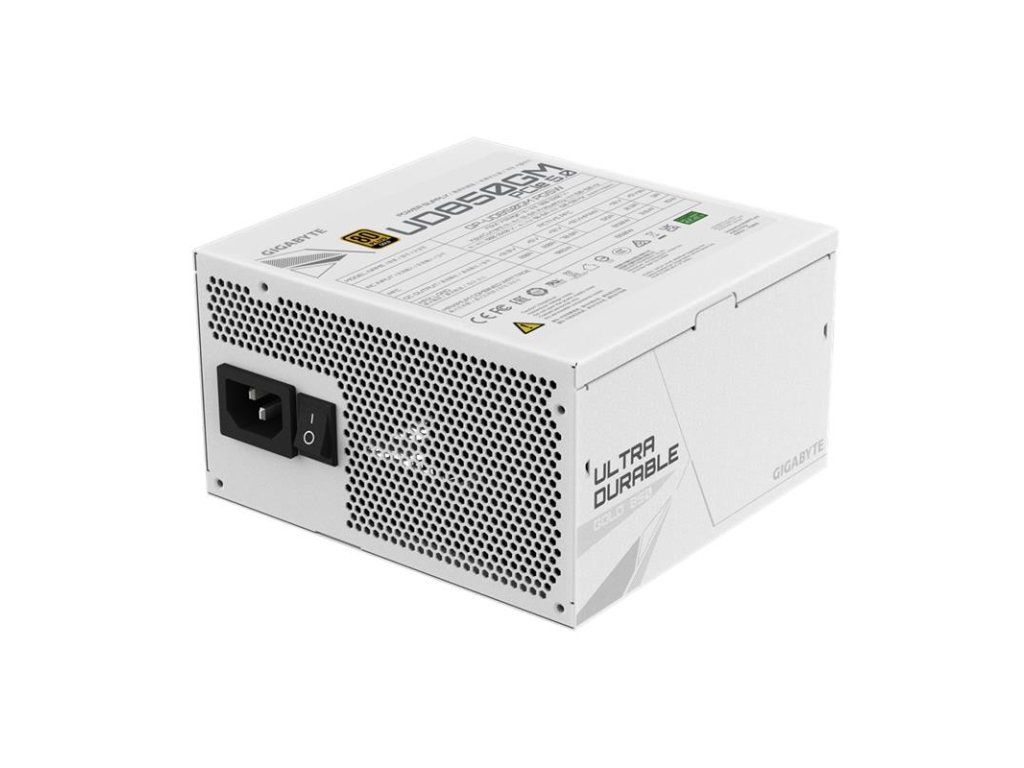

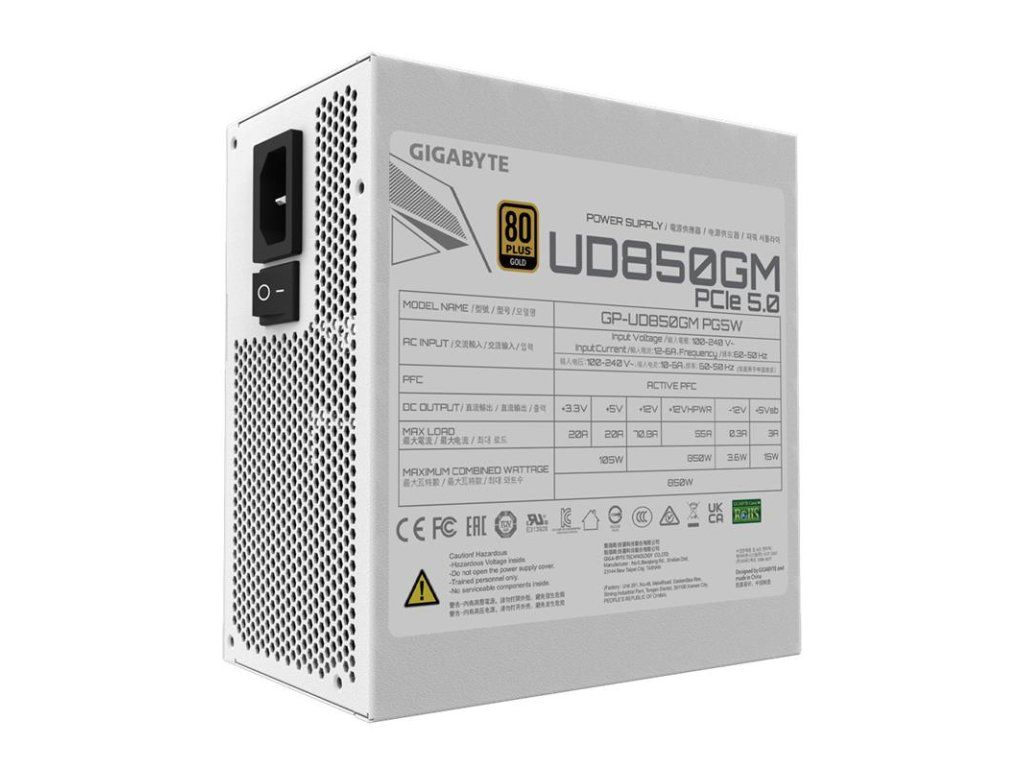

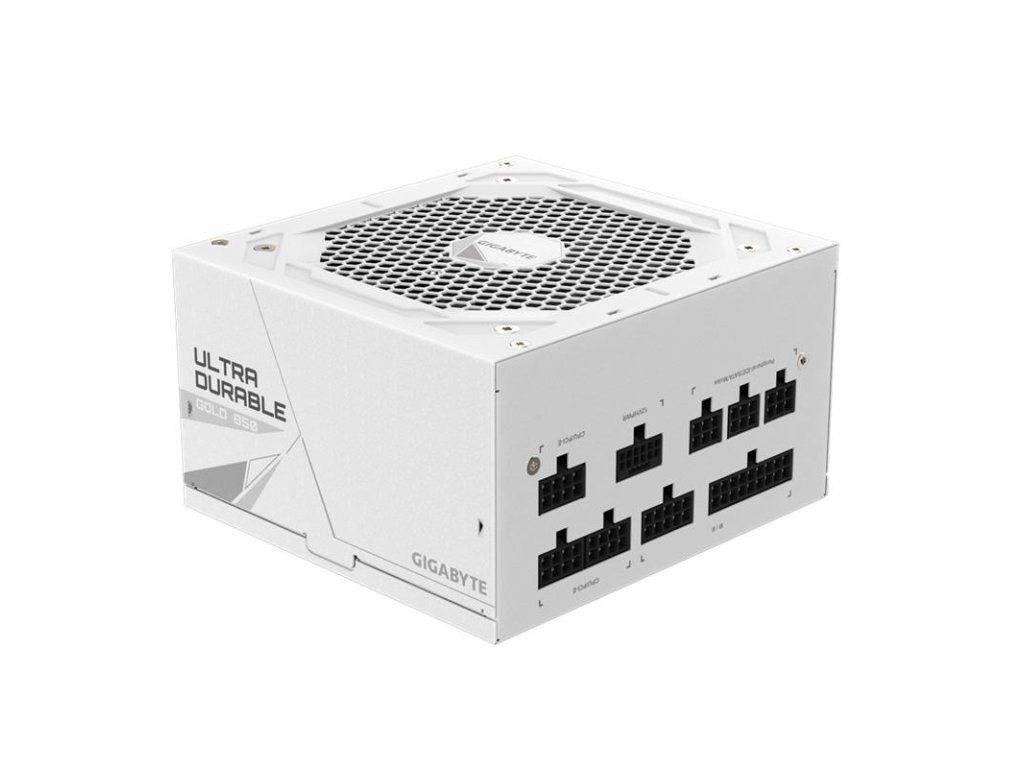

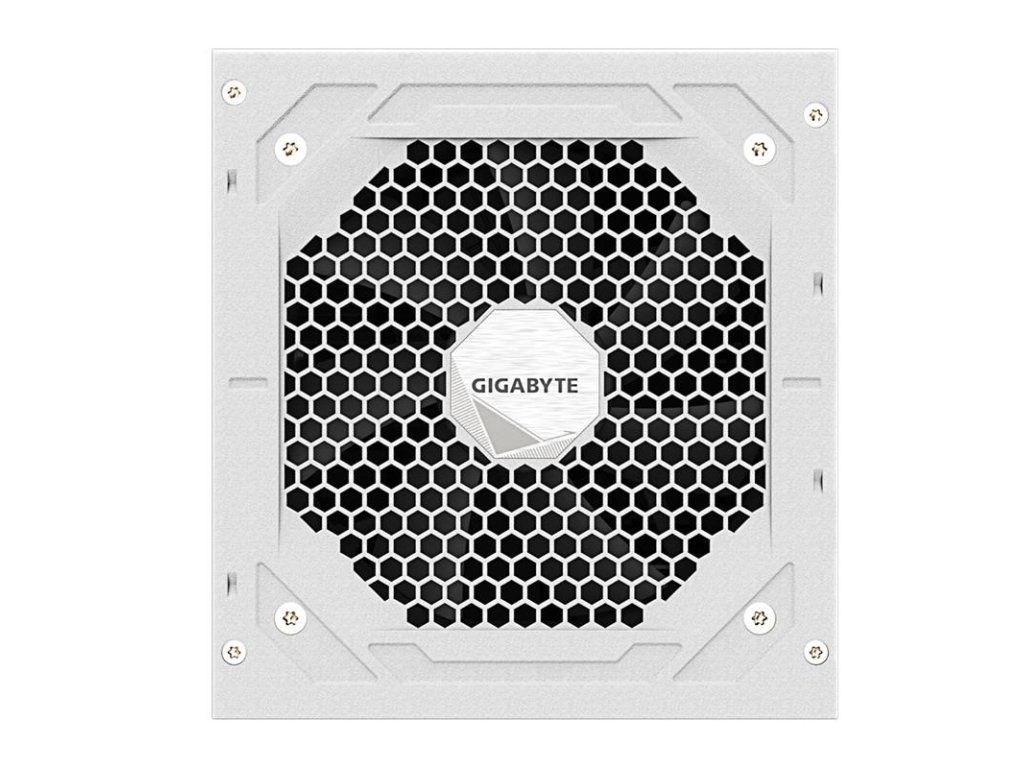

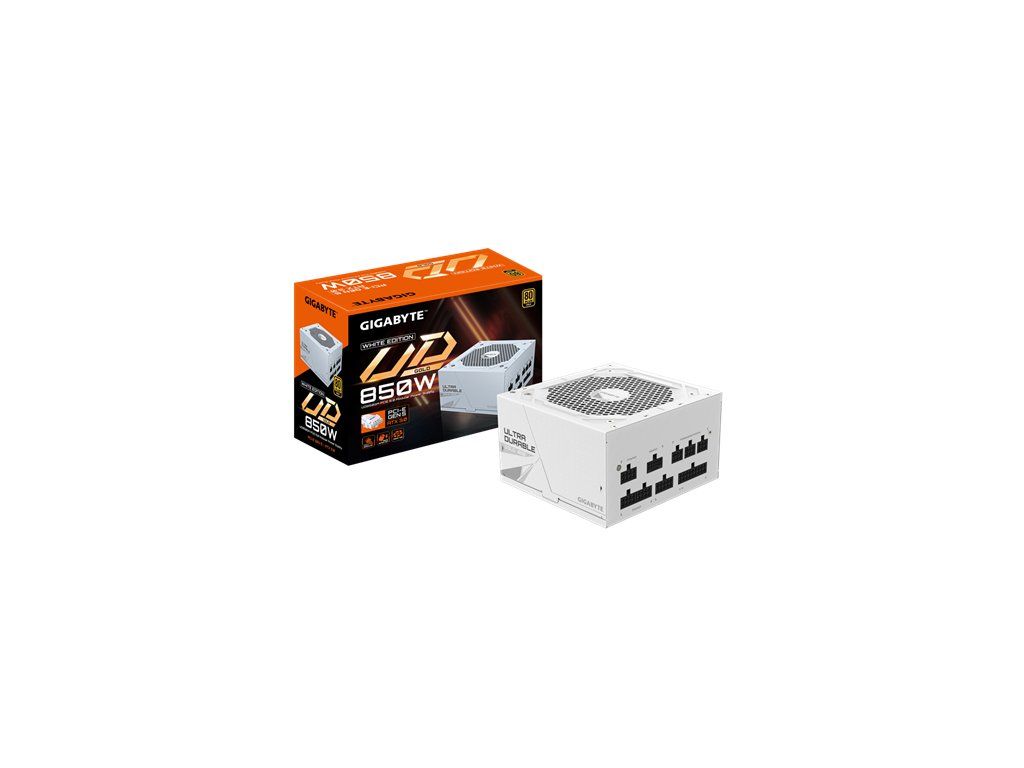

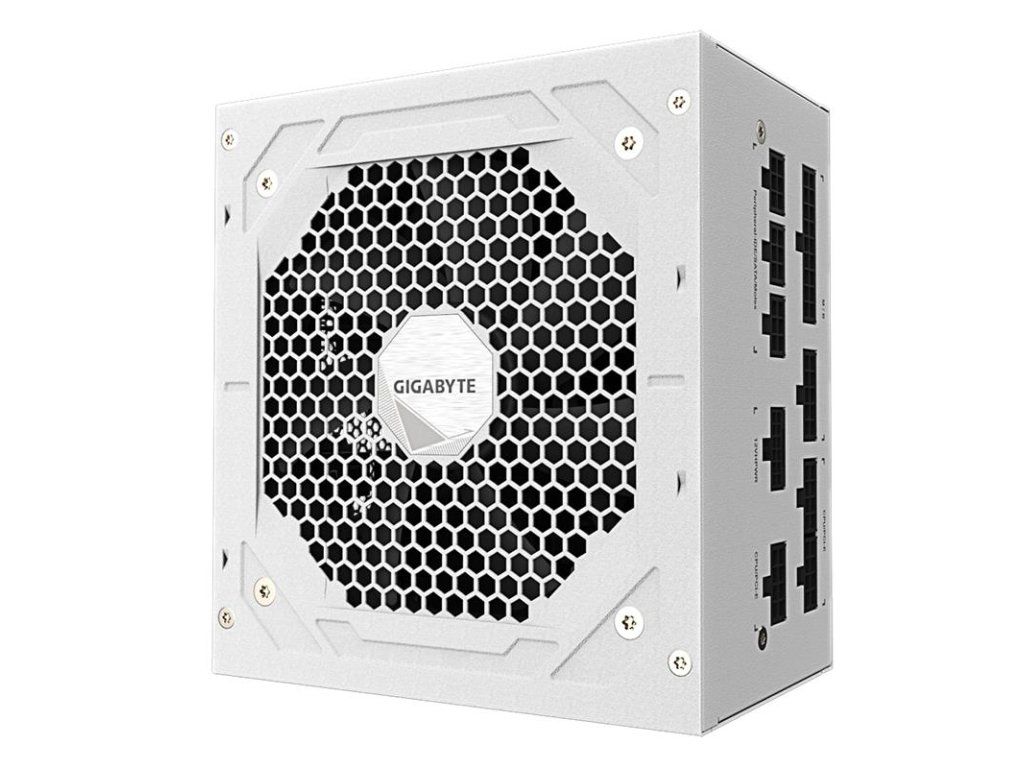

Gigabyte UD850GM PG5W 850W 80+ Gold Modular PCIe 5 ICE

Podrobný popis

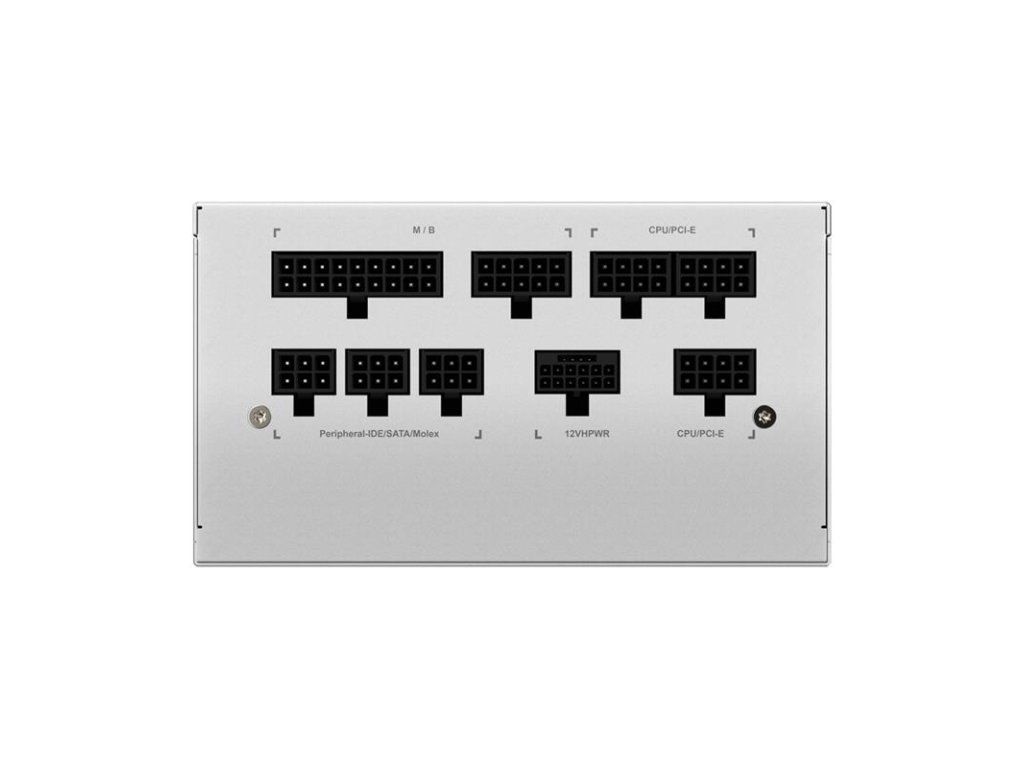

KEY FEATURE Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics cards Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact design 5 years warranty (Adjusted according to different regions) Model GP-UD850GM PG5W Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 850W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB)fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All white Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
