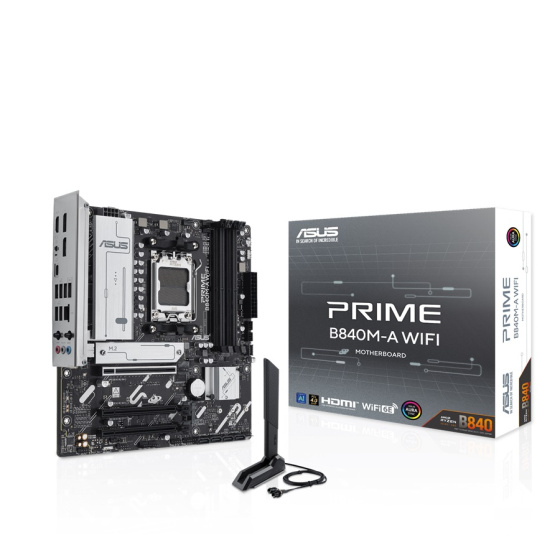

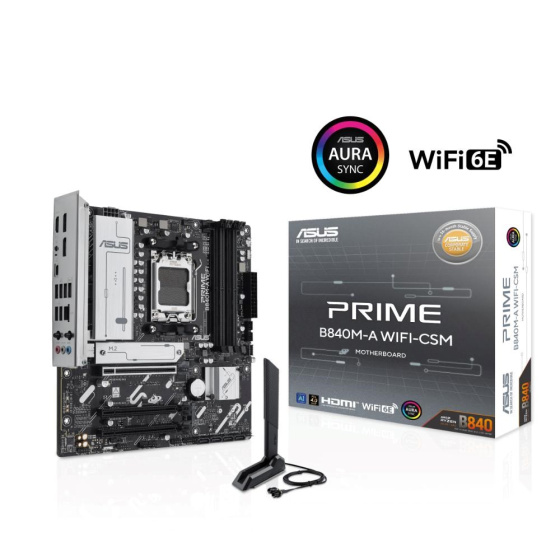

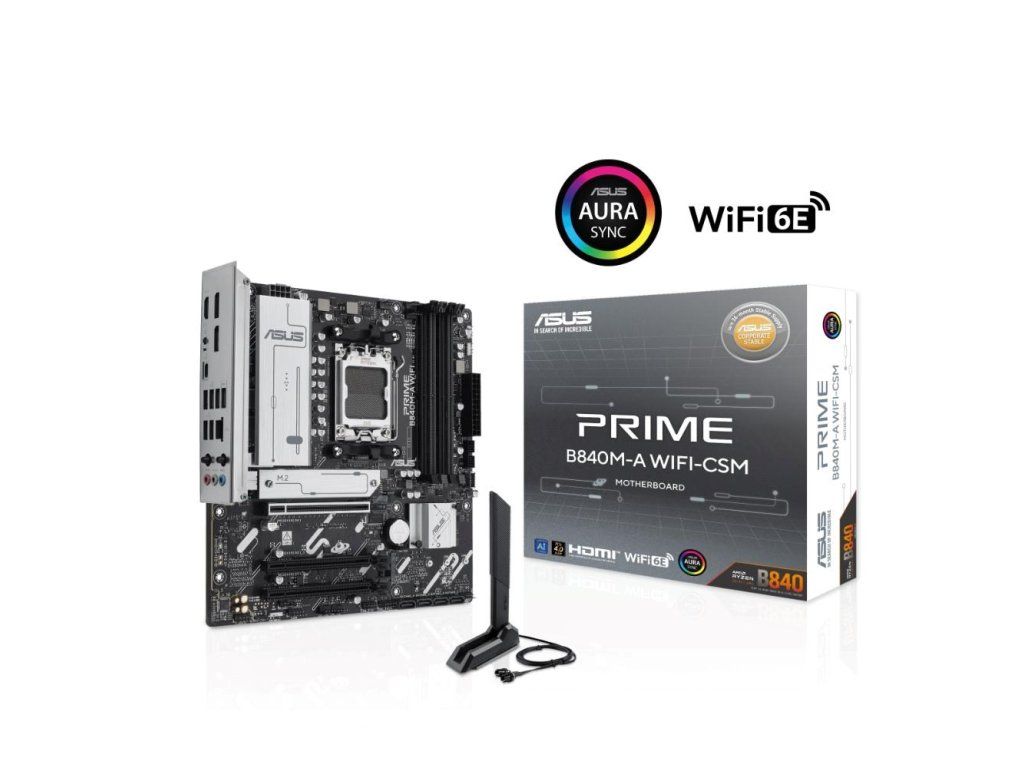

ASUS MB Sc AM5 PRIME B840M-A WIFI, AMD B840, 4xDDR5, 2xDP, 1xHDMI, WiFi, mATX

ASUS PRIME B840-PLUS WIFI * mATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B840 Chipset

Paměť: ''4 x DIMM slots, max. 192GB, DDR5 - Podpora až 7600+MT/s (OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnávací paměti DIMM *Dvoukanálová paměťová architektura *Podpora rozšířených profilů AMD pro přetaktování (EXPO™) *ASUS Enhanced Memory Profile (AEMP)

Grafické porty: *2 x DisplayPort *1 x HDMI™ port

Rozšiřující sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors *1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors *1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B840 Chipset *2 x PCIe 3.0 x16 slots (support x1 mode)

Úložný prostor: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors *M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B840 Chipset *M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode) *4 x SATA 6Gb/s ports

Ethernet: *1 x Realtek 2.5Gb Ethernet *ASUS LANGuard

Připojení a Bluetooth: *Wi-Fi 6E *2x2 Wi-Fi 6E (802.11ax) *Supports 2.4/5/6GHz frequency band *Bluetooth® v5.3

USB: Zadní USB (Total 7 ports) *2 x USB 10Gbps ports (2 x Type-A) *1 x USB 5Gbps port (1 x USB Type-C®) *4 x USB 2.0 ports (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 5Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Audio Features *Audio Shielding *Premium audio capacitors *Dedicated audio PCB layers

Vstupy/výstupy zadního panelu: *2 x USB 10Gbps ports (2 x Type-A) *1 x USB 5Gbps port (1 x USB Type-C®) *4 x USB 2.0 ports (4 x Type-A) *2 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacks *1 x BIOS FlashBack™ button

Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Různé: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front System Panel header

Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x M.2 rubber package *3 x Screw packages for M.2 SSD Dokumenty: 1 x Quick start guide
