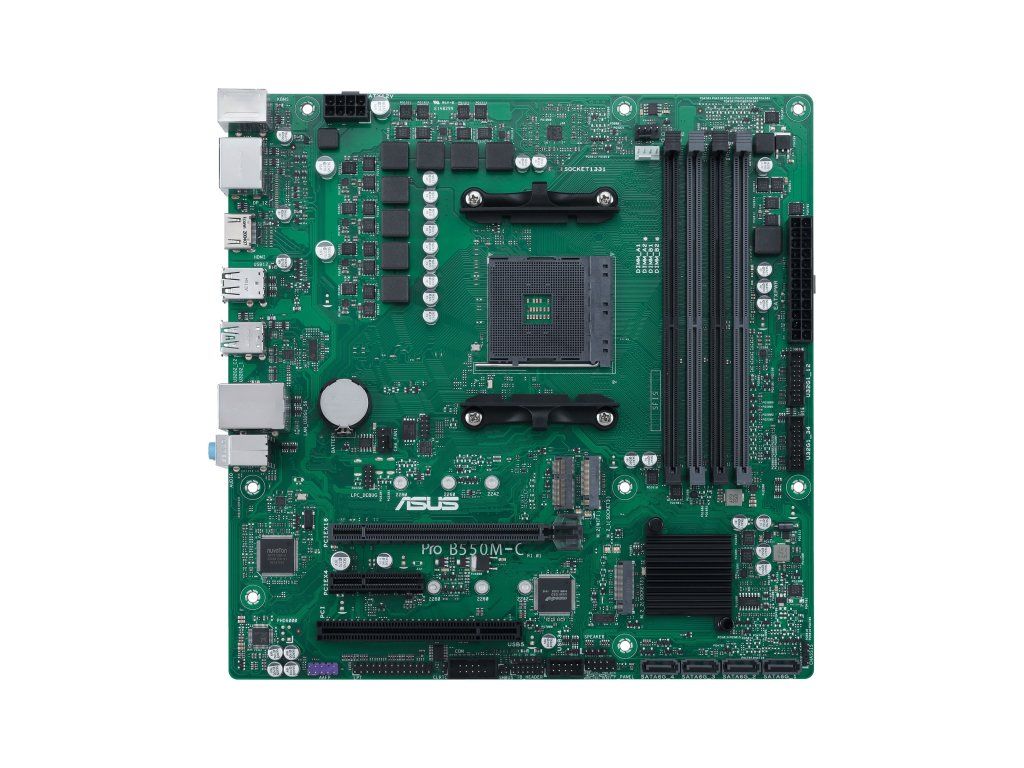

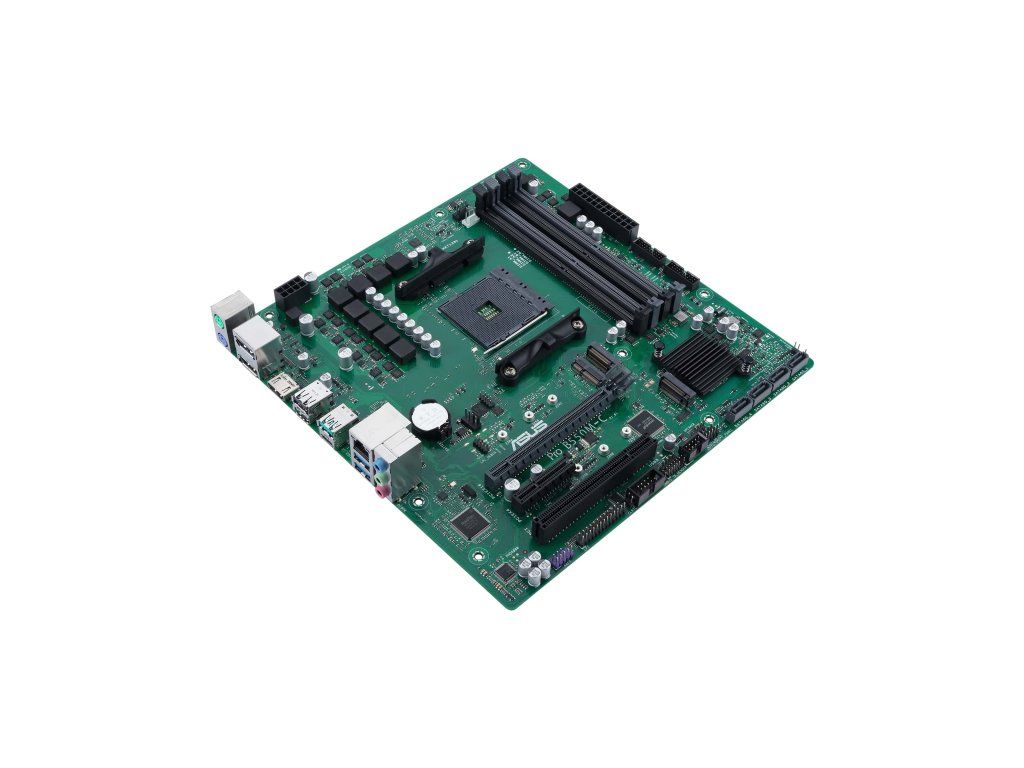

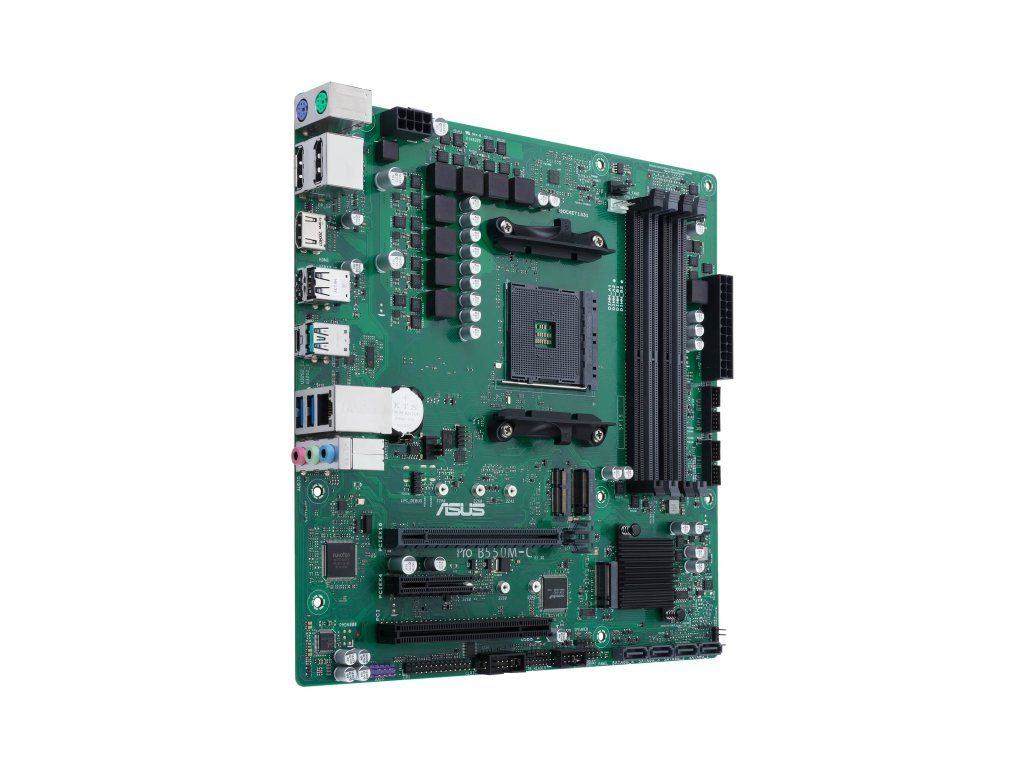

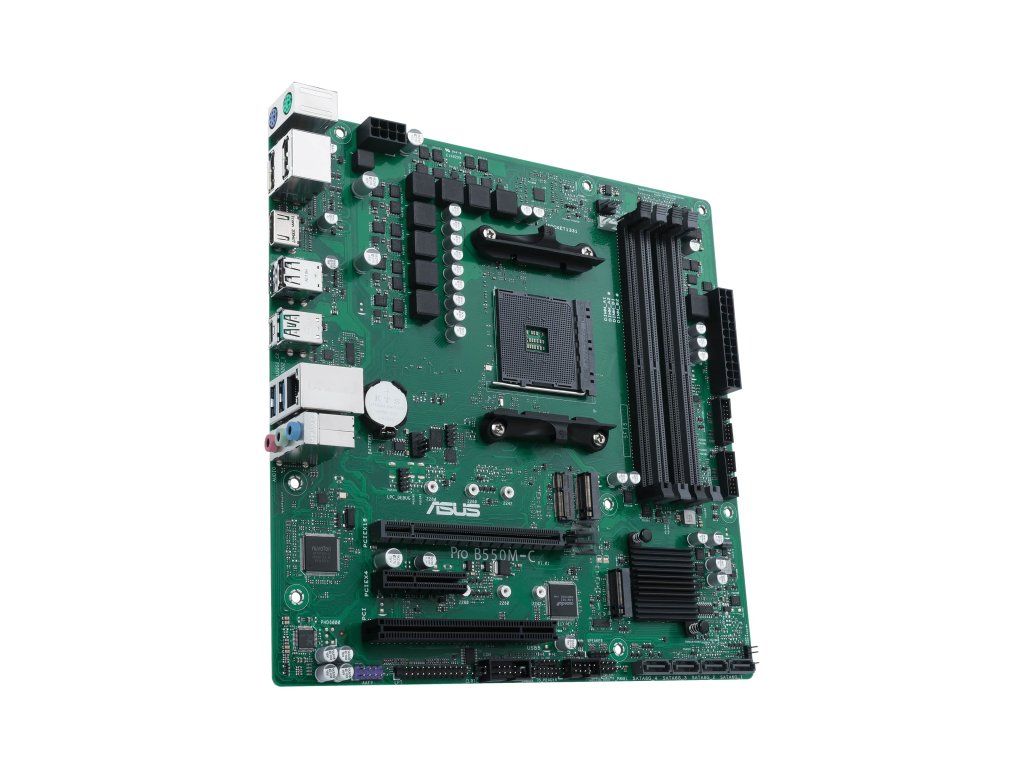

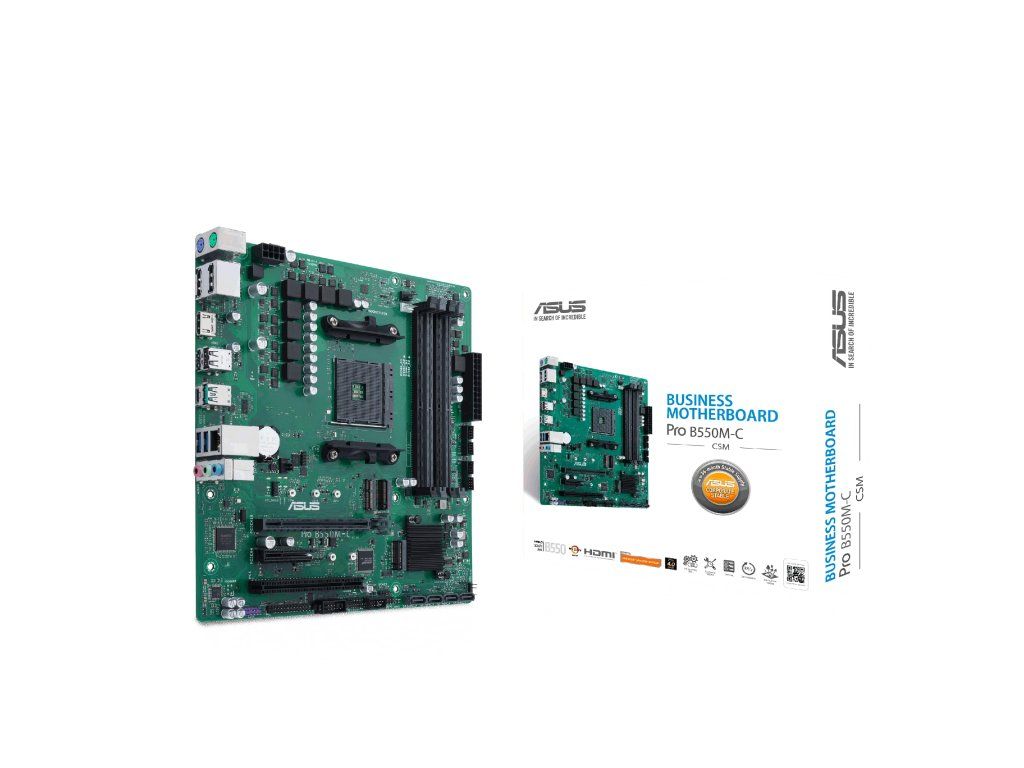

ASUS PRO B550M-C/CSM/AM4/mATX

Podrobný popis

Chipset: AMD B550

Rozměrový formát: mATX Form Factor (244 mm x 244 mm)

Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Patice procesoru: AM4 TPM 2.0 IC Onboard – TPM 2.0 chip přímo na MB

Pozice na paměti: 4x DDR4 DIMM

Podpora pro paměti: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *AMD Ryzen™ 4000 G-Series Desktop Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU.

Grafická karta: Integrated Graphics Processor (na základě procesoru) *2x DisplayPort *1x HDMI 2.1(4K@60HZ)

Zvuková karta: *Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: *Realtek RTL8111H 1Gb Ethernet

Rozšiřující sloty: *

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors *1x PCIe 4.0 x16 (x16 mode) *

AMD Ryzen™ 4000 G-Series Desktop Processors *1x PCIe 3.0 x16 (x16 mode) *

AMD B550 Chipset *1x PCIe 3.0 x4 *1x PCI

RAID řadič: 0, 1, 10

SATA: *4x SATA 6Gb/s port(s)

M.2: *

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : *1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support *

AMD Ryzen™ 4000 G-Series Processors : *1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support *

AMD B550 Chipset *1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB: *

zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *

přední USB porty ( celkem 7 ) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *3x USB 2.0 port(s)

Interní porty: *1x CPU Fan connector(s) *2x Chassis Fan connector(s) *2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) *2x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) *1x M.2 with E key for Wi-Fi module *1x LPT header *4x SATA 6Gb/s connector(s) *1x Thunderbolt header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x SMBus header(s) *1x System panel(s) *1x Clear CMOS jumper(s) *1x COM port header *1x Chassis intrusion header *1x LPC Debug header *1x Speaker connector

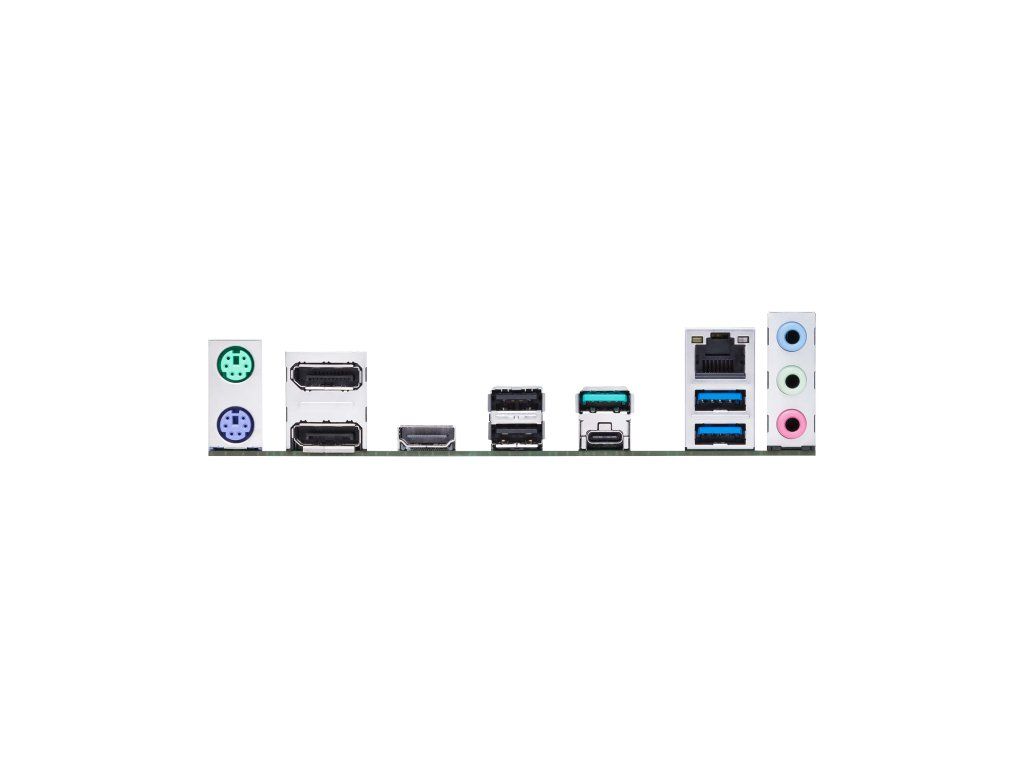

Externí porty: *1x Realtek® RTL8111H *1x PS/2 keyboard (purple) *1x PS/2 mouse (green) *2x DisplayPort *1x HDMI *2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) *2x USB 3.2 Gen 1 Type-A *2x USB 2.0 *3x Audio jack(s)

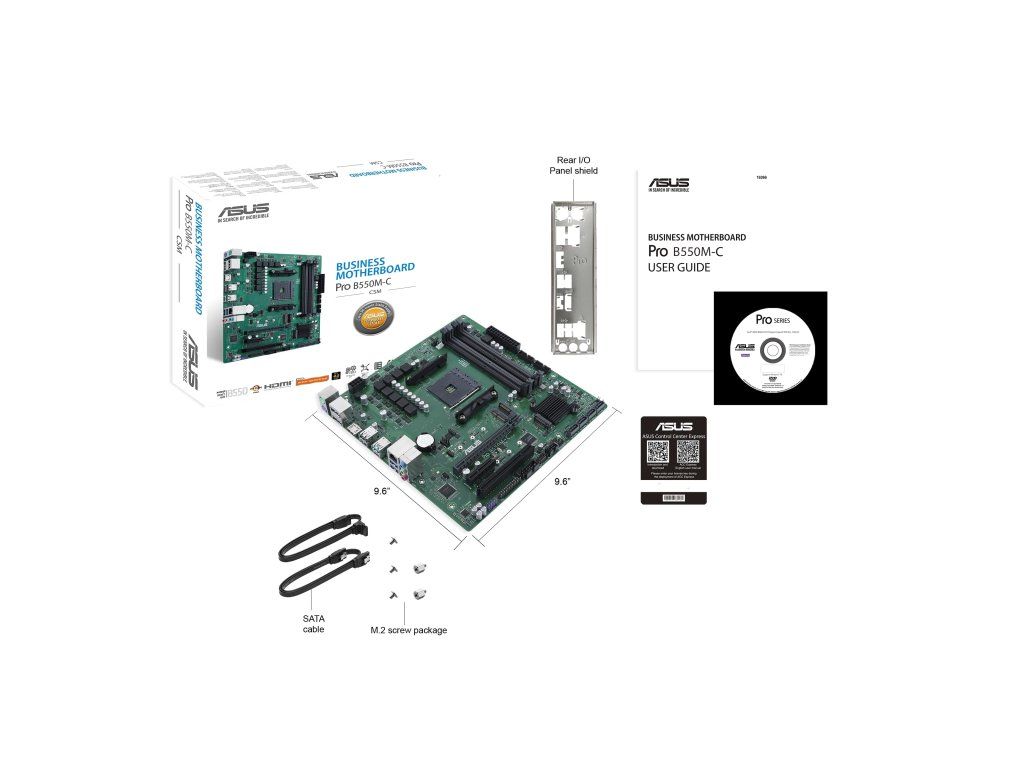

Obsah balení: *1x ACC Express Activation Key Card *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *User manual *3x M.2 SSD screw package(s) *2x M.2 SSD Hex screw packages

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/All-series/Pro-B550M-C-CSM https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
