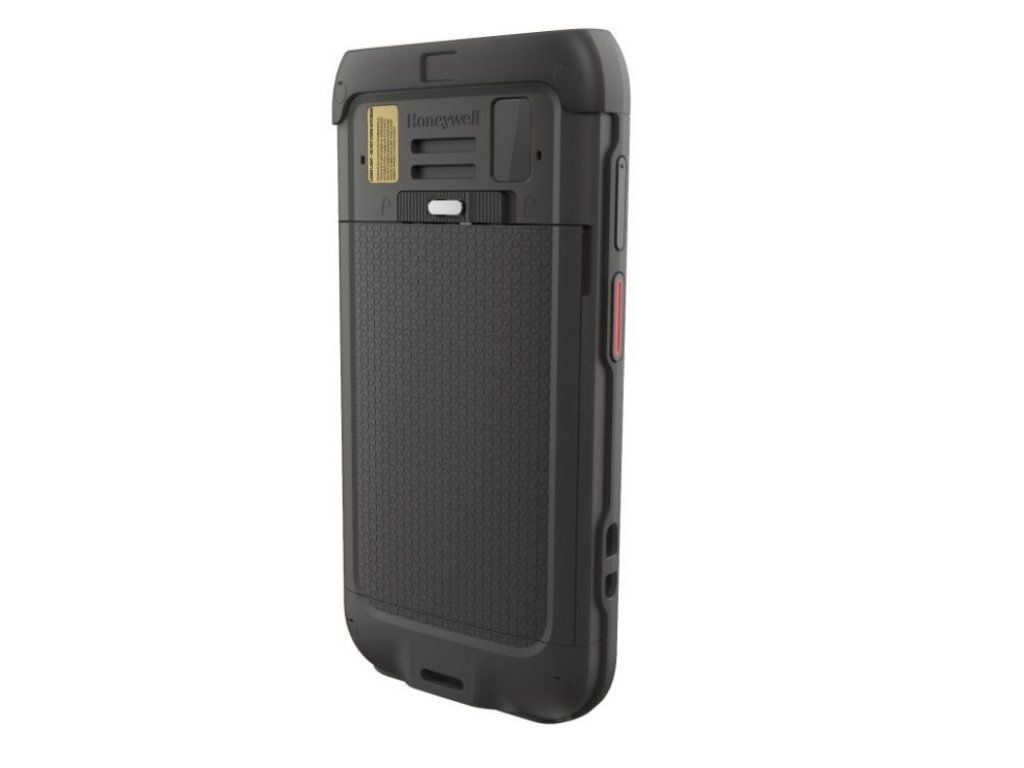

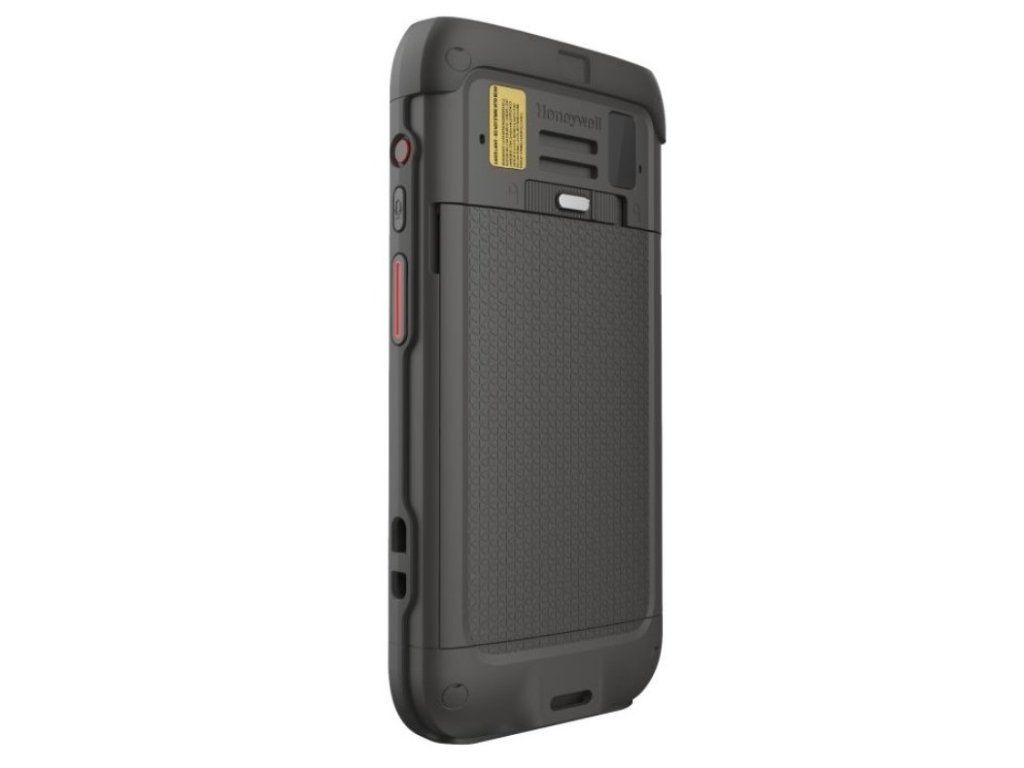

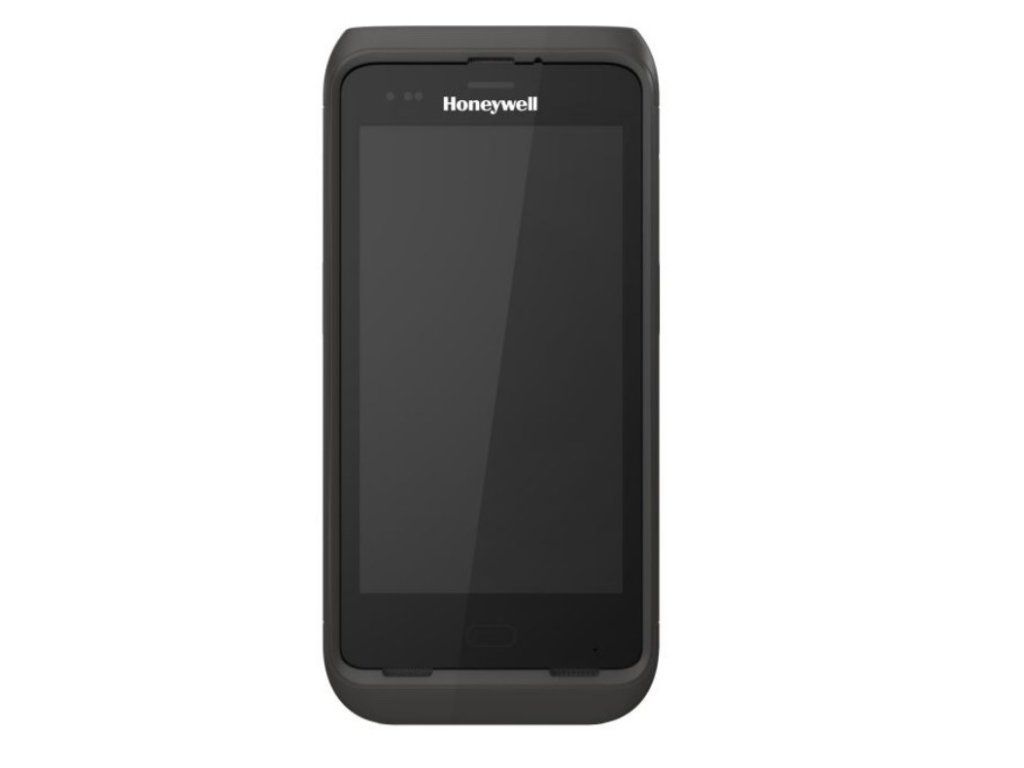

CT45 - WLAN, 4G/65G, IP68A65, BT, USB, FlexRange

Podrobný popis

MECHANICAL

Dimensions: 163 mm x 79 mm x 19.2 mm

Weight: 282 g (9.9oz) with battery pack

Display Size: 12.7 cm (5.0 in)

Resolution: Full High Definition (1920 x1080) (CT45XP), High-Definition (1280 x720) (CT45)

Backlight: LED

Touch Panel: Rugged multi-touch capacitive touch panel, optically-bonded for extra durability. Glove, stylus and rain modes supported (CT45 XP). Water droplet rejection with screen protector mode. Covered with Gorilla Glass 5 for increased resistance to drops.

Hard Keys: Volume up/down key, left/right scan, power button, Push to Talk button.

Soft Key: On-screen scan button, reprogrammable into an application quicklaunch key.

Audio: 3.5 mm jack**, PTT, VoIP ready, speaker, HAC-compliant.

Three microphones with noise cancellation

I/O Ports: Durable, flat IO connector, USB Type C connector.

USB OTG supported via I/O ports

USB 3.0 is supported via USB Type C

Universal Dock Platform: Compatible

ENVIRONMENTAL

Operating Temperature: -20°C to +50°C (-4°F to +122°F)

Storage Temperature: -30°C to +70°C (-22°F to +158°F)

Humidity: 5% to 95% (non-condensing)

Drop: Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H, multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H

Tumble: Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification

ESD: ±8 kV direct, ±15 kV air

Environmental Sealing: Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion

Thermal Shock: -30°C to +70°C

SYSTEM ARCHITECTURE

Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz

Operating System: Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility

Memory: 6 GB DDR4x RAM, 64 GB UFS

Flash (CT45XP), 4 GB DDR4x RAM, 64 GB UFS Flash (CT45)

Camera: 13-megapixel rear camera, 8-megapixel front-facing camera.

Sensors: Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, barometer (Model dependent), eCompass (Model dependent), hall sensor, high gravity sensor

SIM: *

CT45 XP: Available with configurations of eSIM and Nano SIM or configurations of 2 Nano SIMs *

CT45: Available with configurations of 2 Nano SIMs

Storage Expansion: User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)

Battery: Li-Ion, 3.85 V, 4020 mAh, smart battery with integrated diagnostic tools

Battery warm swap: Available on CT45 XP

Charging: Quick Charge 3.0 compliant, Less than 3 hours to be fully charged.

Hours of Operation: 12+ hours

Decode Capabilities: Honeywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android

Application Software: Honeywell Mobility Edge Utilities and Demos

WARRANTY

One-year factory warranty

WIRELESS CONNECTIVITY

WWAN: WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)

AT&T FirstNet Compliant

LTE Advanced Support

Up to 390 Mbps CAT13 LTE downlink

Up to 75 Mbps CAT5 LTE uplink

LTE - Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71

UMTS/HSPA+ (3G) - Bands 1, 2, 4, 5, 6, 8, 9, 19

GSM: 850, 900, 1800, 1900 (Quad Bands)

WLAN: Wi-Fi certified

CT45 XP WLAN: IEEE 802.11 a/b/g/n/ac/ ax and 2*2 MU-MIMO

All other configurations: IEEE 802.11 a/b/g/n/ac

All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc

WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)

Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant (except CT45XP WLAN)

Bluetooth®: V5.1 Bluetooth and BLE

2nd BLE: Available on CT45 XP

Bluetooth Profiles: HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT

NFC: Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)

VPN: IPSec V4/L2TP, PPTP

Push to Talk (PTT): Supported

GPS Supported Protocols: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS *

Specifications are subject to change without notice. *

3.5mm jack is available on Wi-Fi version only.
