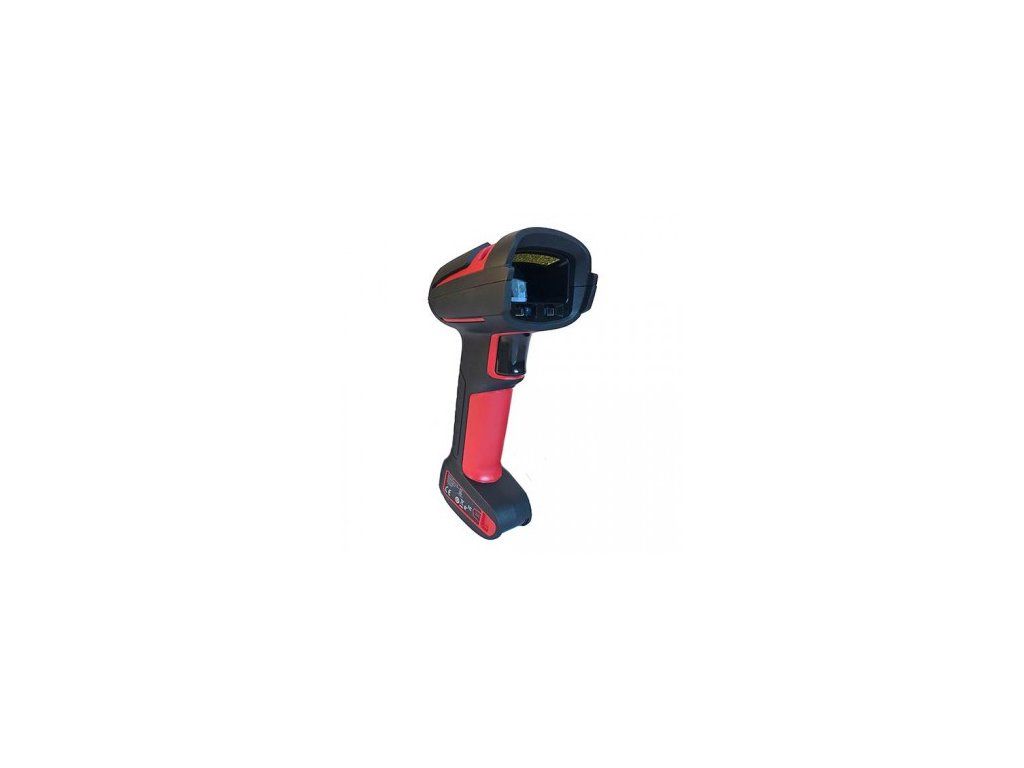

Honeywell Granit 1991 Standard Range - BT, USB kit, base

Podrobný popis

Honeywell Granit 1991 Standard Range





MECHANICAL


Dimensions - Scanner (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 inx 3.9 in)


Dimensions - Base (L x W x H): 245 mm x102 mm x 60 mm (9.6 in x 4.0 in x 2.4 in)


Weight - Cordless: 405 g (14.3 oz)


WIRELESS


Radio/Range: 2.4 GHz (ISM Band)Adaptive Frequency Hopping Bluetooth®v4.2, Class 1: 100 m (330 ft) line of sight


POWER OPTIONS


Battery: 2450 mAh Li-ion minimum


Number of Scans: Up to 50,000 scans percharge


Expected Duration of Operation:14 hours (1 scan per second)


User Indicators: Good Decode LEDs,Beeper (adjustable tone and volume),Vibration (adjustable), Bluetooth®connectivity, Battery status


ELECTRICAL


Input Voltage: 4.0 VDC to 5.5 VDC


Operating Power - Cordless: 5 W(1000 mA @ 5 VDC)


Standby Power - Cordless (non-chargingpower): 0.6 W (120 mA @ 5 VDC)


Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL


ENVIRONMENTAL




Operating Temperature*: -20°C to 50°C (-4°F to 122°F)


Storage Temperature: -40°C to 70°C(-40°F to 158°F)


Humidity: Up to 95% relative humidity,non-condensing


Drop:2 m (6.5 ft): 50 drops from -30°C to50°C (-22°F to 122°F), uncontrolled RH2.4 m (8 ft): 20 drops at 25°C (77°F),55% RH3 m (10 ft): MIL-STD-810G, 25°C (77°F),55% RH


Tumble: 7,000 1 m (3.3 ft) tumbles


Environmental Sealing - Scanner:IP67 and IP65


Environmental Sealing -Charge/Communication Base: IP51


Light Levels: 0 to 100,000 lux(9,290 foot-candles)


ESD: ±20 kV air discharge, ±8 kV contactdischarge


SCAN PERFORMANCE





Scan Pattern: Area Imager (1280 x 800pixel array)


Motion Tolerance: Up to 4500 mm/s(177 in/s)


Scan Angle: Horizontal: 40°, Vertical: 30°Print Contrast: 20% minimum reflectance difference


Roll, Pitch, Skew: -360°, 45°, 65°


Decode Capabilities: Reads standard 1D,PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies


Warranty - Scanner: Three-year factory warranty


Warranty - Battery Pack: One-year factory warranty
