Lenovo ThinkPad Hybrid USB-C with USB-A Dock (2x DP, RJ45, 3x USB-C,2x USB 2.0, 2x HDMI, adapter) pripojit max. 2x LCD

Podrobný popis

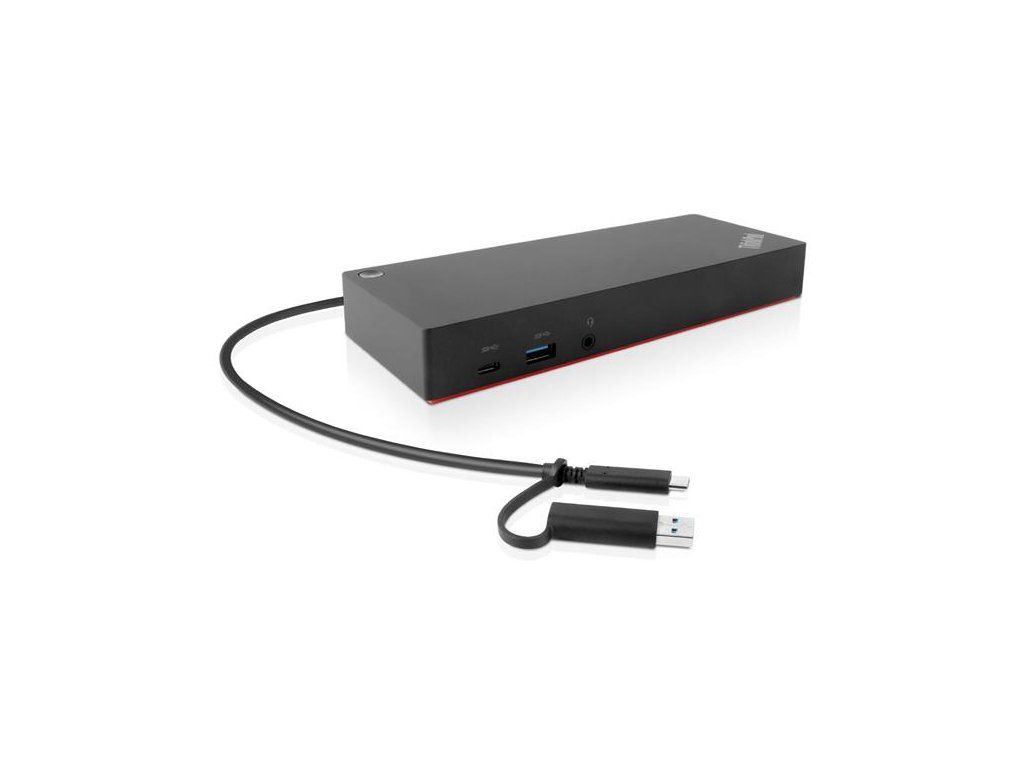

The ThinkPad Hybrid USB-C with USB-A Dock (40AF) expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. And, with the included USB-C to USB-A adaptor it can also provide port replication to non-Lenovo or USB-C notebooks.

Configuration:
-Docking interface: USB-C cable with USB-C to USB-A dongle
-2 x DisplayPort, 2 x HDMI
-3 x USB-A gen2, 1 x USB-C gen2, 2 x USB2.0
-10/1000 Gigabit Ethernet
-1 x Audio combo Jack

Technical Information/Performance Specifications
3x USB 3.1 gen2 (10Gbps, 1x always-on)
2x USB2.0
1x USB-C port (Data, 5V 3A power)
1x Gigabit Ethernet
2x DisplayPort
2x HDMI Port
1x Combo Audio jack
Video Ports: 2 x DisplayPort™ , 2 x HDMI™
Up to two UHD displays connection via DisplayPort™/HDMI™ ports
USB Ports: 3 x USB-A (Gen 2, 10 Gbps), 1 x USB-C (Gen 2, 5V / 3A power), 2 x USB 2.0
Gigabit Ethernet: 10/1000 Gigabit Ethernet
Packed Physical Specification(Dimension): 270*165*88 (mm) 10.63*6.49*3.47 (in)
Packed Weight : 1350g
Unpacked Physical Specification(Dimension): 210*80*30 (mm) 8.27*3.15*1.18 (in)
Unpacked Weight : 475g
Maximum Resolution Support/Refresh Rate: 5120*2880@60Hz
Maximum Temperature: 35° C / 95° F
Minimum Temperature: 0° C / 32° F
Number of External Monitors: 2
Maximum Relative Humidity: 95% ( no Condensation)
Security: Kensington Seurity lock slot

The ThinkPad Hybrid USB-C with USB-A Dock is supported on the following Lenovo systems:
Machine TypeModel
ThinkPad X28020KE, 20KF
ThinkPad E48020KN, 20KQ
ThinkPad R480 (PRC Premium)20KR
ThinkPad E58020KS, 20KT
ThinkPad X1 Carbon (WW)KBL: 20HQ, 20HR
ThinkPad X1 Yoga20JD, 20JE
ThinkPad X1 Yoga 2nd20JF, 20JG
ThinkPad Yoga 37020JH, 20JJ
ThinkPad S1 3rd Gen PRC20JK, 20JL
ThinkPad T470KBL:20HD, 20HE
ThinkPad T470s20HF,20HG,20JS,20JT
