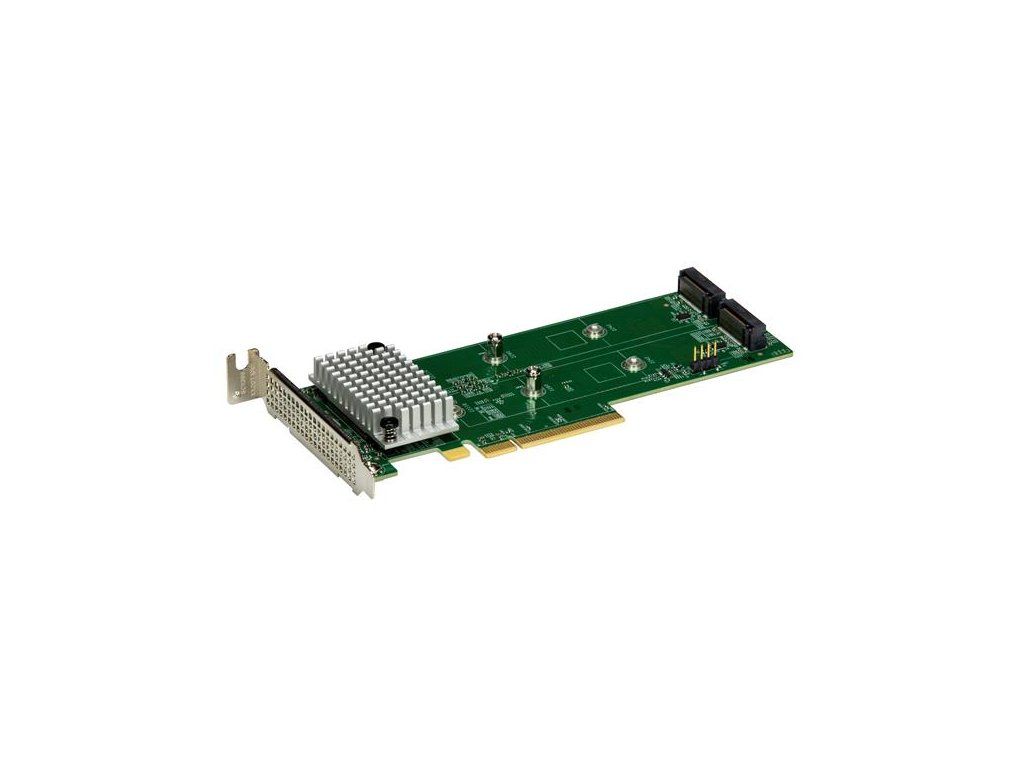

Supermicro Hybrid M.2 NVMe, SATA SSD RAID 0,1 Card x8 PCIe Gen4 Host interface

Podrobný popis

Key Features
Broadcom 3808 SAS controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1.
Broadcom SAS3808 I/O RAID Controller
x8 PCIe Gen4 Host interface
Dual M-Key sockets (for 2x M.2 SSD)
Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors
Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
Supports RAID 0 and RAID 1
Support MCTP over PCIe/ I2C
Support BMC-enabled management
Support secure erase
Support hardware secure boot
Support on-board LEDs for SSD Activity and Status
UEFI Configuration utility
OS Support: Windows, Linux, and VMWare
Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded)
Thermal operating range: System dependent (55°C or higher w/ enough airflow)
