TP-Link EAP245(5-pack) V3 AC1750 WiFi Ceiling/Wall Mount AP, bez POE, Omada SDN

Podrobný popis

EAP245

AC1750 MU-MIMO bezdrôtový gigabitový prístupový bod pre montáž na strop

Rýchla dvojpásmová sieť WiFi: Simultánne rýchlosti 450 Mbit/s v pásme 2,4 GHz a 1 300 Mbit/s v pásme 5 GHz poskytujú výslednú prenosovú rýchlosť 1 750 Mbit/s v sieti WiFi.†

Integrované do platformy Omada SDN: Funkcia ZTP (Zero-Touch Provisioning)‡, centralizovaná cloudová správa a inteligentné monitorovanie.

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchú správu.

Bezproblémový roaming: Užívatelia sa môžu voľne pohybovať v pokrytej oblasti bez toho, aby to malo nejaký vplyv na streamovanie videa a hlasové hovory.*

Podpora technológie PoE: Podporuje štandard 802.3af/at aj pasívne PoE napájanie (PoE adaptér sa predáva samostatne) pre flexibilné možnosti inštalácie.

Zabezpečená sieť pre hostí: Poskytuje niekoľko možností overovania (SMS / Voucher atď.) a rad technológií pre zabezpečenie bezdrôtovej siete.*

Pokročilé bezdrôtové technológie: Optimalizujte výkon siete pomocou technológií MU-MIMO, Band Steering, Airtime Fairness a Beamforming.



HARDWARE FEATURES

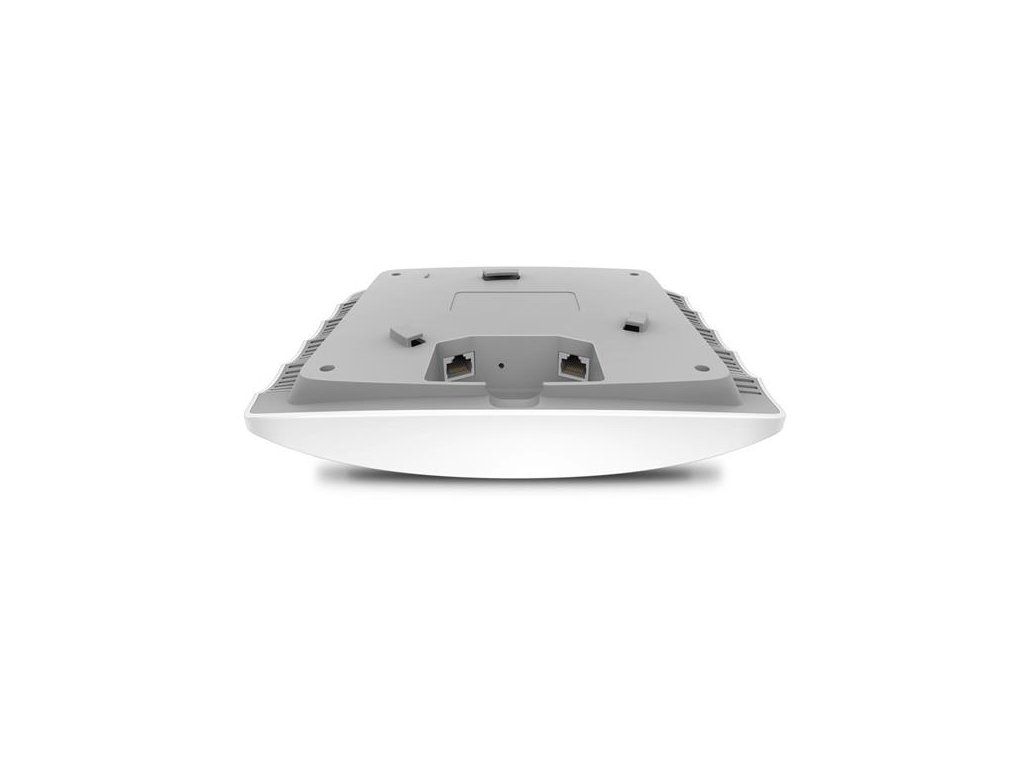

Interface 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)

Physical Security Lock Yes

Button Reset

Power Supply • 802.3af/at PoE

• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption 12.3 W

Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type Internal Omni

• 2.4 GHz: 3× 3.5 dBi

• 5 GHz: 3× 4 dBi

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/g/b/a

Frequency 2.4GHz and 5GHz

Signal Rate • 5 GHz:Up to 1300 Mbps

• 2.4 GHz:Up to 450 Mbps

Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming*

• Omada Mesh*

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client



Wireless Security • Captive Portal Authentication*

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise,

• WPA-PSK / WPA2-PSK

Transmission Power • CE:

?20 dBm (2.4GHz)

?23 dBm (5GHz)

• FCC:

?24 dBm (2.4 GHz)

?24 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, FCC, RoHS

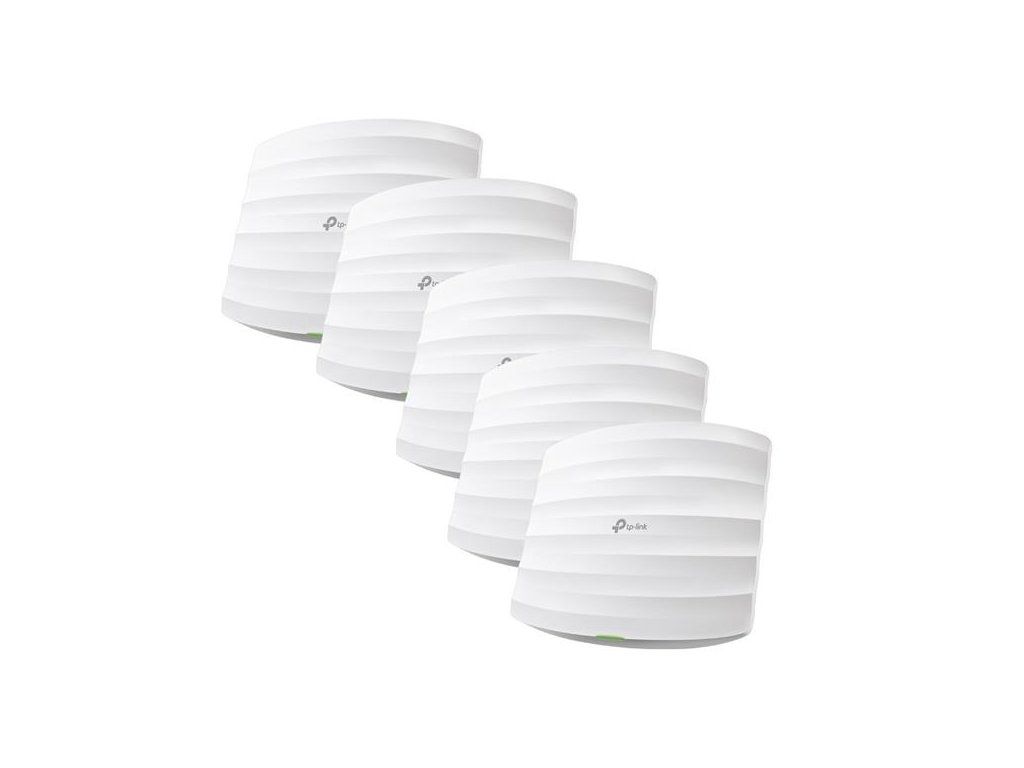

Package Contents • 5 EAP245 Access Points

• 5 Mounting Kits

• 1 Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
