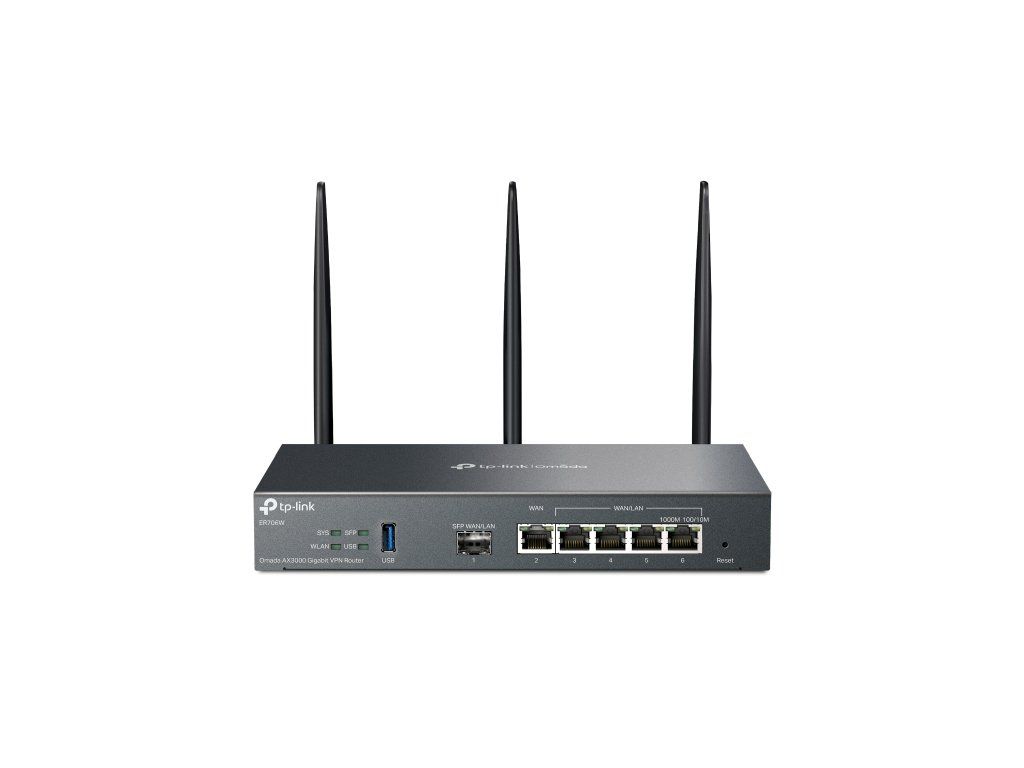

TP-Link ER706W AX3000 WiFi Gb VPN router Omada SDN

ER706W

Gigabitový VPN smerovač Omada AX3000

Dvoupásmová Wi-Fi AX3000: Podporuje rýchlosť pripojenia 2 402 Mbit/s v pásme 5 GHz a 574 Mbit/s v pásme 2,4 GHz

6 gigabitových ethernetových portov: 1 gigabitový port SFP a 5 gigabitových portov RJ45 poskytujú vysokorýchlostné káblové pripojenie.

Technológia Omada Mesh: Bezproblémové pripojenie k zariadeniam EAP, ktorá podporuje technológiu Mesh, ideálne pre pokrytie miest s veľkou rozlohou.**

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchou správu.

Zvýšené pokrytie: Trojice externých antén rozširuje a sustreďuje signály Wi-Fi siete k zariadeniam.

VPN s vysokým zabezpečením: Podporuje niekoľko VPN protokolov vrátane IPSec, SSL, Wireguard, OpenVPN, PPTP a L2TP VPN, čo pomáha pružne flexibilnejším navazovať vzdialené pripojenie.?

Bohaté funkcie zabezpečenia: Pokročilé zásady firewallu, ochrana proti útokom DoS, filtrovanie adresy IP/MAC/URL a ďalšie bezpečnostné funkcie na ochranu vašej siete a dát.



SECURITY

Access Control Source/Destination IP Based Access Control

Filtering • Web Group Filtering†

• URL Filtering

• Web Security†

ARP Inspection • Sending GARP Packets

• ARP Scanning†

• IP-MAC Binding

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

Interface • 1 Gigabit SFP WAN/LAN Port

• 1 Gigabit WAN Port

• 4 Gigabit LAN/WAN Ports

• 1 USB3.0 (supports USB LTE dongle and USB Storage)

Button Reset Button

Power Supply 12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps

• 5 GHz: 2402 Mbps (HE160)

Flash 128 MB NAND

DRAM 512 MB DDR4

Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not

included)

Antenna • 2.4 GHz: 2x 3 dBi dual-band detachable antennas

• 5 GHz: 3x 4.5 dBi dual-band detachable antennas

Mounting Desktop/Wall-mounting

Max Power Consumption • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)

• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)

PERFORMANCE

GRE • Unencrypted: 624.2Mbps

• Encrypted: 301.5Mbps

WireGuard VPN 393.5Mbps

Concurrent Session 150,000

New Sessions /Second 5,100

NAT (Static IP) 937.2 Mbps / 936.1Mbps

NAT(DHCP) 945.8 Mbps / 940.6Mbps

NAT(PPPoE) 942.9 Mbps / 942.9Mbps

NAT (L2TP) 837.4 Mbps / 881.5Mbps

NAT (PPTP) 803.0 Mbps / 910.5 Mbps

IPsec VPN Throughput • ESP-SHA1-AES256: 646.9Mbps

• ESP-SHA256-AES256: 642.8Mbps

• ESP-SHA384-AES256: 648.9Mbps

• ESP-SHA512-AES256: 658.4 Mbps

OpenVPN 129.3Mbps

L2TP VPN Throughput • Unencrypted: 1034.0 Mbps

• Encrypted: 570.0 Mbps

PPTP VPN Throughput • Unencrypted: 1165.0 Mbps

• Encrypted: 209.0 Mbps

SSL VPN Throughput 126.7Mbps

66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps

WIRELESS FEATURES

Advanced Functions • Seamless Roaming

• Mesh (with EAP that supports Mesh)

• OFDMA

• Beamforming

• MU-MIMO

• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Guest Network Support

BASIC FUNCTIONS

WAN Connection Type • Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP

MAC Clone Modify WAN Address

DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

ACL IP/Port/Protocol/Domain Name Filtering

Advanced Routing • Static Routing

• Policy Routing

• RIP†

• OSPF†

Bandwidth Control IP-Based Bandwidth Control

Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup(Timing, Failover)

• Online Detection

NAT • One-to-One NAT

• Multi-Net NAT

• Port Forwarding

• Port Triggering†

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

Session Limit IP-Based Session Limit

VPN

SSL VPN 50 Tunnels

IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)?

• 50 Tunnels

• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)?

• 50 Tunnels

• L2TP over IPSec

OpenVPN • OpenVPN Server

• OpenVPN Client (5)?

• 55 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password§

• Hotspot (Local User / Voucher§ / SMS§ / Radius§)

• External Radius Sever

• External Portal Sever§

• LDAP

MANAGEMENT

Omada App Yes.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS

Customization)

Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)†

• NTP Synchronize†

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS

Package Contents • ER706W

• Power Adapter

• Quick Installation Guide

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing
