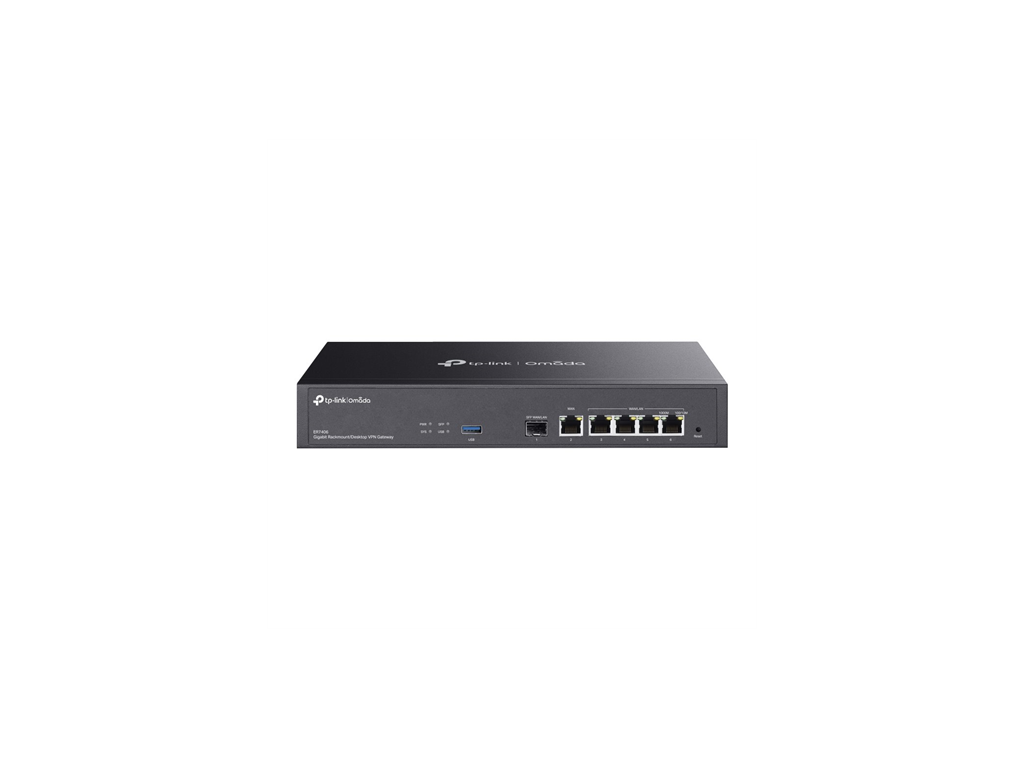

TP-Link ER7406 VPN Router Gb rack/desktop Omada

Podrobný popis

ER7406 Omada Gigabitová gateway VPN pro montáž do racku / na stůl
Funkce *1× gigabitový SFP WAN/LAN port *5× gigabitových RJ45 portů (1× WAN, 4× WAN/LAN) *1× USB 3.0 port (podporuje USB úložiště a LTE zálohování s LTE donglem) *Vyvažování zátěže na až 5 WAN portech zvyšuje využití více-linek širokopásmového připojení *Vysoce zabezpečená SSL/IPSec/GRE§/WireGuard/PPTP/L2TP VPN a OpenVPN *Centralizovaná správa v cloudu přes web nebo aplikaci Omada *Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro zvýšenou bezpečnost *Montáž do racku/stolní provedení

Specifikace

Zabezpečení Access Control Source/Destination IP Based Access Control Filtering *WEB Group Filtering *URL Filtering *Web Security ARP Inspection *Sending GARP Packets *ARP Scanning *IP-MAC Binding Attack Defense *TCP/UDP/ICMP Flood Defense *Block TCP Scan (Stealth FIN/Xmas/Null) *Block Ping from WAN

Hardware Standards and Protocols *IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q *TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interface *1 Gigabit SFP WAN/LAN Port *1 Gigabit WAN Port *4 Gigabit LAN/WAN Ports *1 USB 3.0 Port (supports USB LTE dongle and USB storage) Network Media *10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Fan Quantity *Fanless Button *Reset Button Power Supply *100-240VAC, 50/60Hz Flash *128 MB NAND DRAM *512 MB DDR4 LED *PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) Dimensions ( W x D x H ) *294 × 140 × 44 mm Protection *4 kV surge protection Enclosure *Steel Mounting *Desktop *Rackmountable Max Power Consumption *7.5 W (with USB 3.0 connected) *4.5 W (without USB 3.0 connected)

Výkon IPS Throughput *TCP: 229 Mbps, *UDP: 188 Mbps DPI Throughput *TCP: 933 Mbps, *UDP: 927 Mbps GRE *Unencrypted: 611.9 Mbps *Encrypted: 325.0 Mbps WireGuard VPN *341.3 Mbps Concurrent Session *150,000 New Sessions /Second *5,300 NAT (Static IP) *945.3 Mbps / 940.5 Mbps NAT(DHCP) *939.6 Mbps / 940.9 Mbps NAT(PPPoE) *943.6 Mbps / 940.9 Mbps NAT (L2TP) *880.1 Mbps / 859.0 Mbps NAT (PPTP) *855.0 Mbps / 907.2 Mbps IPsec VPN Throughput *ESP-SHA1-AES256: 617.1 Mbps *ESP-SHA256-AES256: 592.8 Mbps *ESP-SHA384-AES256: 592.4 Mbps *ESP-SHA512-AES256: 604.5 Mbps OpenVPN *139.1 Mbps L2TP VPN Throughput *Unencrypted: 977.4 Mbps *Encrypted: 334.6 Mbps PPTP VPN Throughput *Unencrypted: 1064.1 Mbps *Encrypted: 206.8 Mbps SSL VPN Throughput *131.6 Mbps 66 Byte Packet forwarding rate *1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate *81,279 pps / 81,275 pps

Základní funkce WAN Connection Type, MAC Clone, DHCP, IpV6, VLAN, IPTV

Rožšířené funkce Advanced Routing, Bandwidth Control, Load Balance, NAT, Session Limit

VPN GRE *Yes(Only in Standalone Mode) SSL VPN *50 Tunnels IPsec VPN *100 IPSec VPN Tunnels PPTP VPN *50 Tunnels L2TP VPN *50 Tunnels OpenVPN *55 OpenVPN Tunnels

Autentizace Web Authentication *No Authentication *Simple Password *Hotspot (Local User /Voucher*/ SMS/Radius*) *External Radius Server *External Portal Sever *LDAP

Management Omada App *Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management *Omada Cloud-Based Controller *Omada Hardware Controller *Omada Software Controller Cloud Access *Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Service *Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Zero-Touch Provisioning *Yes. Requires the use of Omada Cloud-Based Controller.
