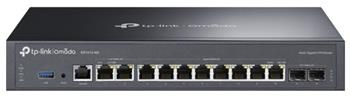

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

ER7412-M2

Omada Multi-Gigabit VPN Router

Štvorjadrový procesor @2,0 GHz

2× 2,5G porty RJ45 WAN/LAN

10× gigabitové porty WAN/LAN (2× SFP, 8× RJ45)

1× port USB 3.0 (podporuje úložisko USB a zálohovanie LTE s kľúčom LTE)

Až 11 portov WAN

Vyrovnávanie záťaže viacerých sietí WAN zvyšuje mieru využitia širokopásmového pripojenia s viacerými linkami

Vysoké zabezpečenie SSL / IPSec / GRE§ / WireGuard / PPTP / L2TP VPN a OpenVPN

Centralizovaná správa cloudu prostredníctvom webu alebo aplikácie Omada*

Ochrana proti DoS, filtrovanie IP/MAC/URL, DPI a IPS/IDS pre zvýšenie bezpečnosti.



SECURITY

Access Control • Source/Destination IP-Based ACL

• Stateful ACL

• IPv4/IPv6 ACL

• National Based ACL

Filtering • WEB Group Filtering§

• URL Filtering

• Web Security§

ARP Inspection • Sending GARP Packets§

• ARP Scanning§

• IP-MAC Binding§

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface • 1× 2.5G RJ45 WAN/LAN Port

• 1× 2.5G RJ45 WAN/LAN Port

• 2× Gigabit SFP WAN/LAN Ports

• 8× Gigabit RJ45 WAN/LAN Ports



• 1× RJ45 Console Port

• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)

Button Reset Button

Power Supply 100–240 VAC, 50/60 Hz

Flash 128MB NAND

DRAM 1 GB DDR4

Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)

Protection 4 kV surge protection

Enclosure Steel

Mounting • Desktop

• Rackmountable

Max Power Consumption 18.5W (With USB 3.0 connected)

PERFORMANCE

GRE • Unencrypted: 1153.0 Mbps

• Encrypted: 559.2 Mbps

WireGuard VPN 771.6 Mbps

Concurrent Session 1,000,000

New Sessions /Second 7,000

NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps

NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps

NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps

NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps

NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps

IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps

• ESP-SHA256-AES256: 1133.1 Mbps

• ESP-SHA384-AES256: 1126.6 Mbps

• ESP-SHA512-AES256: 1132.8 Mbps

OpenVPN UDP: 266.2 Mbps

L2TP VPN Throughput • Unencrypted: 2724.5 Mbps

• Encrypted: 1018.4Mbps

PPTP VPN Throughput • Unencrypted: 3035 Mbps

• Encrypted: 534.6 Mbps

SSL VPN Throughput 263.1 Mbps

66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps

1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps

BASIC FUNCTIONS

WAN Connection Type • Static IP/Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP

• Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone Modify WAN/LAN MAC Address†

DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

Advanced Routing • Static Routing

• Policy Routing

• RIP (available in Standalone Mode)

• OSPF (available in Standalone Mode)

Bandwidth Control IP/Port-based Bandwidth Control

Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing, Failover)

• Online Detection

NAT • One-to-One NAT§

• Multi-Net NAT

• Virtual Server

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

Session Limit IP-based Session Limit

VPN

GRE Only in Standalone Mode

SSL VPN 80 Tunnels

IPsec VPN • 150 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• PPTP VPN Client (15)**

• 150 Tunnels

• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• L2TP VPN Client (15)**

• 150 Tunnels

• L2TP over IPSec

OpenVPN • OpenVPN Server

• OpenVPN Client (11)**

• 121 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password*

• Hotspot (Local User/Voucher*/SMS*/Radius*)

• External Radius Server

• External Portal Server*

• LDAP

MANAGEMENT

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3*

• Diagnostics (Ping & Traceroute)§

• NTP Synchronize§

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Intelligent Network Monitoring*

• Abnormal Event Warnings*

• Unified Configuration*

• Reboot Schedule*

OTHERS

Certification CE, FCC

Package Contents • ER7412-M2

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• RJ45 Console Cord

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0–45 ? (32–113 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% non-condensing
