Tp-Link OC300 Omada Hardware Controller Omada SDN

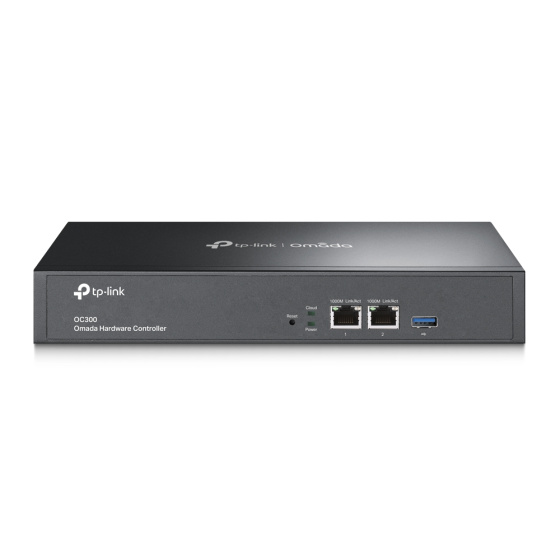

OC300

Omada Hardware Controller

Centralized management for up to 500 Omada access points, JetStream switches, and SafeStream routers.

Cloud access to manage from anywhere, anytime.

Locally monitor and manage devices with the ultimate security and stability.

The Omada app for convenient management.

Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup.

Batch management, multi-site management, and remote firmware updates benefit network maintenance.

The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.

Network topology helps IT admins quickly see and troubleshoot connections at a glance.



HARDWARE FEATURES

Interface • 2× 10/100/1000 Mbps Ethernet Ports

• 1× USB 3.0 Port

Power Supply 100–240 V~50/60 Hz, 0.6 A

Dimensions 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

MANAGEMENT

Omada App Yes

Centralized Management • Up to 500 Omada access points, JetStream switches, and SafeStream routers*

• Up to 15,000 clients



*Only some JetStream switches and Safestream gateways can be centrally managed by OC300, please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300

Cloud Access Yes

L3 Management Yes

Multi-site Management Yes

Management Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS

Package Contents • Omada Hardware Controller OC300

• Quick Installation Guide

• Ethernet Cable

• Power Cord

• Rackmount Kit

System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment • Operating Temperature: 0–50 ? (32–122 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
