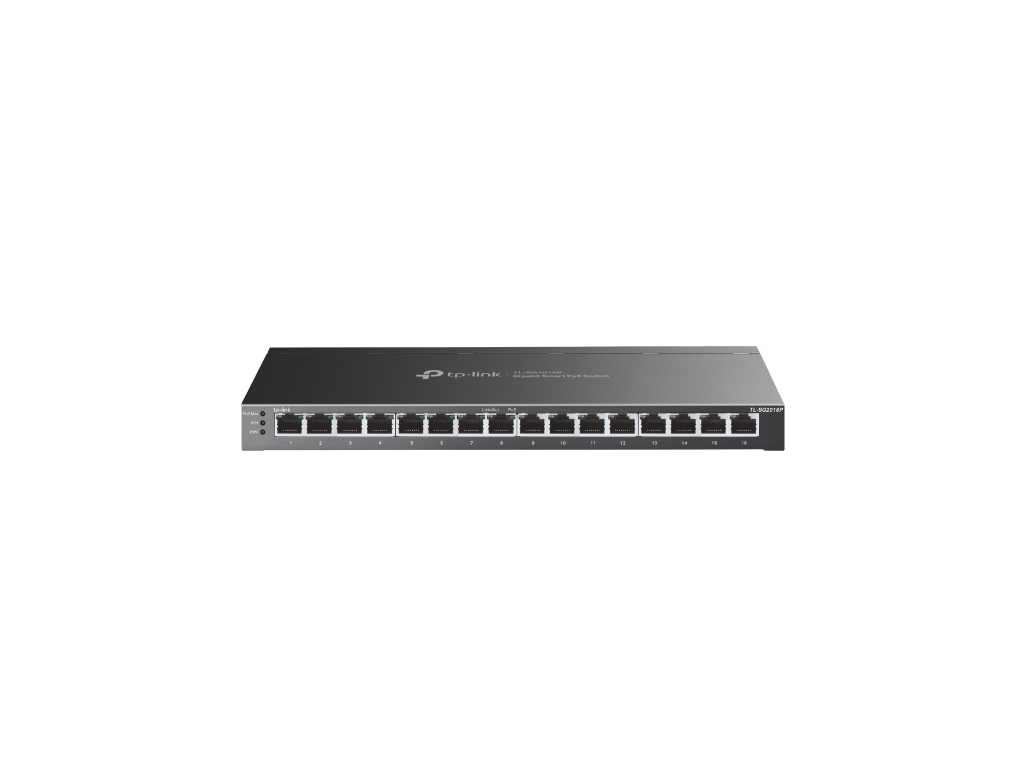

TP-Link TL-SG2016P 16xGb(8xPoE+) 120W smart switch Omada SDN

TL-SG2016P

16portový gigabitový inteligentný switch JetStream s 8 portami PoE+

PoE s rozpočtom napájania 120 W: 8 portov PoE+ vyhovujúcich štandardu 802.3at/af s celkovým napájacím výkonom 120 W.*

Plne gigabitové porty: 8 gigabitových portov PoE+ a 8 gigabitových portov bez PoE poskytujú vysokorýchlostné pripojenie.

Integrácia do platformy Omada SDN: Funkcia Zero-Touch Provisioning,** centralizovaná cloudová správa a inteligentné monitorovanie.

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchú správu.

Robustná stratégia zabezpečenia: Funkcia viazania na adresu IP-MAC, ACL, zabezpečenie portov, ochrana proti útokom DoS, funkcia Storm Control, funkcia DHCP Snooping, overovanie protokolom 802.1X a Radius a ďalšie funkcie.

Optimalizovaný prenos hlasu a videa v aplikáciách: L2/L3/L4 QoS a funkcie IGMP Snooping.



HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)

• Auto-Negotiation/Auto MDI/MDIX

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Power Supply • External Power Adapter (Output: 53.5 VDC/ 2.43 A)

PoE Ports (RJ45) • Standard: 802.3af/at compliant

• PoE Ports: 8 Ports

• Power Supply: 120 W*

Dimensions ( W x D x H ) 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)

Mounting Desktop/Wall-Mounting

Max Power Consumption 146.5 W (110 V/60 Hz) (with 120 W PD connected)

Max Heat Dissipation 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)

PERFORMANCE

Bandwidth/Backplane 16 Gbps

MAC Address Table 8k

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port/Flow-based Rating Limit

• Smoother Performance

• Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features • DHCP Relay

- DHCP VLAN Relay

• DHCP L2 Relay

• Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports

per group

• Spanning Tree Protocol

- 802.1D STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter/Protect,

Root Protect

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Flow-Based

- Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED

L2 Multicast • 511 IPv4, IPv6 shared multicast groups

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- Static Group Config

• Multicast VLAN Registration (MVR)

• Multicast Filtering

• MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

• Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Support • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP)

version 6

• TCPv6/UDPv6

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

VLAN • VLAN Group

- Max. 4K VLAN Groups

• 802.1Q tag VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN

• GVRP

• Voice VLAN

Access Control List • Support up to 230 entries

• Time-Range

- Time Slice

- Week Time-Range

- Absolute Time-Range

- Holiday

• Time-based ACL

• MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

• IP ACL

- Source IP

- Destination IP

- IP Protocol

- TCP Flag

- TCP/UDP Source Port

- TCP/UDP Destination Port

- DSCP/IP TOS

• IPv6 ACL

• Combined ACL

• Rule Operation

- Permit/Deny

• Policy Action

- Mirror

- Rate Limit

- Redirect

- QoS Remark

• ACL Rules Binding

- Port Binding

- VLAN Binding

• Actions for flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

Security • AAA

• 802.1X

- Port-based authentication

- MAC (Host) based authentication

- Authentication Method includes PAP/EAP-MD5

- MAB

- Guest VLAN

- Support Radius authentication and

accountability

• IP/IPv6-MAC Binding

- 512 Binding Entries

- DHCP Snooping

- DHCPv6 Snooping

- ARP Inspection

- ND Detection

• IP Source Guard

- 253 Entries

- Source IP+Source MAC

• IPv6 Source Guard

- 183 Entries

- Source IPv6 Address+Source MAC

• DoS Defend

• Static/Dynamic/Permanent Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

• Port Isolation

• Secure web management through HTTPS with

SSLv3/TLS 1.2

• Secure Command Line Interface (CLI)

management with SSHv1/SSHv2

• IP/Port/MAC-based access control

Advanced Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

MIBs • MIB II (RFC1213)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIBs

• RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App Yes, through

• Omada Cloud-Based Controller

• OC300

• OC200

• Omada Software Controller

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes, through

• Omada Cloud-Based Controller

• OC300

• OC200

• Omada Software Controller

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller

Management Features • Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv1/v2c/v3

• SNMP Trap/Inform

• RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• SNTP

• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents • TL-SG2016P

• Power Adapter

• Installation Guide

• Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
