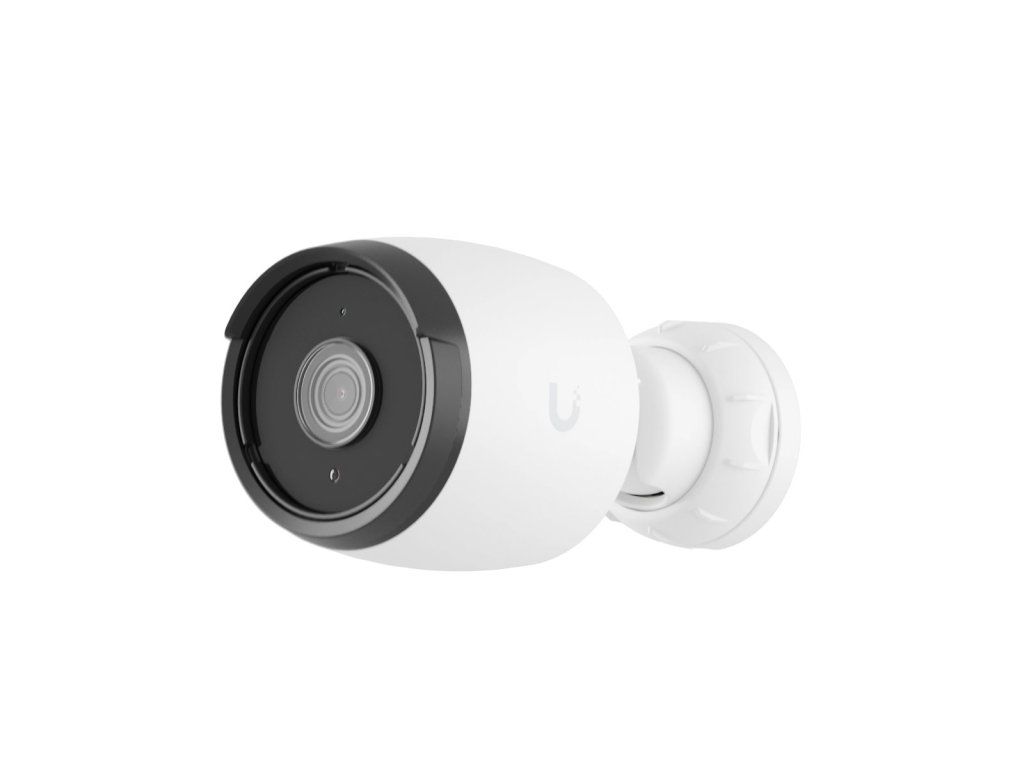

Ubiquiti All-weather 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision.

Podrobný popis

Technical Specifications

Mechanical

Dimensions Without mount: O82 x 88.8 mm (O3.2 x 3.5")

With mount: O82 x 153 mm (O3.2 x 6")

Weight Without mount: 587 g (1.3 lb)

With mount: 737 g (1.6 lb)

Enclosure material Aluminum alloy, polycarbonate

Mount material Wall mount: aluminum alloy, polycarbonate

Pole mount: aluminum alloy

Weatherproofing IP66

Resistance IK04

Pole mount diameter 1.5–2" (38–50 mm)

Metal strap torque: 6 Nm



Optics

Sensor 1/1.8" 8MP

Lens Fixed focal length

View angle H: 109.9°, V: 56.7°, D: 134.1°

Night mode Built-in IR LED illumination and IR cut filter

IR distance 30 m (98 ft)

Video

Resolution 8MP 3864 x 2160 (16:9)

Max. frame rate 30 FPS

Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR



System

Processor Quad-core Arm® Cortex®-A53 based chip

Networking interface 10/100 MbE RJ45 port

Max. power consumption 9.9W

Power method PoE

Supported voltage range 37–57V DC

Button (1) Factory-reset

Mounting Wall, ceiling, pole mount (Included)

Junction box, angled base (Optional)

Ambient operating temperature -20 to 50° C (-4 to 122° F)

Ambient operating humidity 0 to 90% noncondensing

Certifications FCC, IC, CE



Audio

Microphone Yes (Can be disabled)



Software

Web application UniFi Protect

Mobile app UniFi Protect iOS™ and Android™
