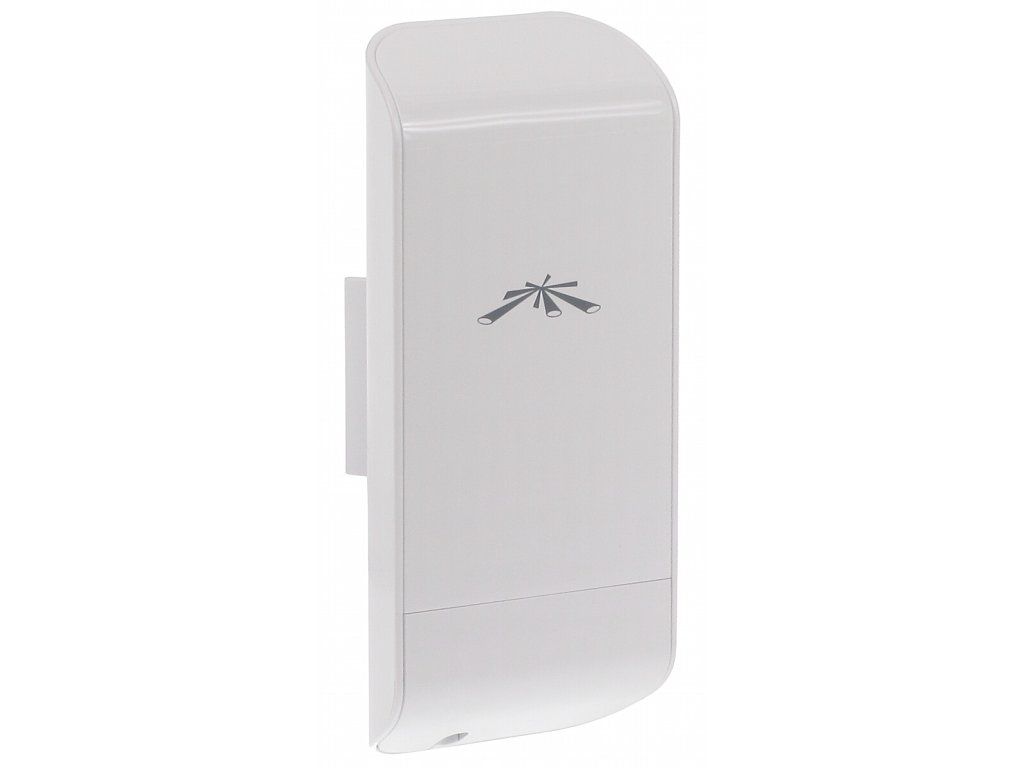

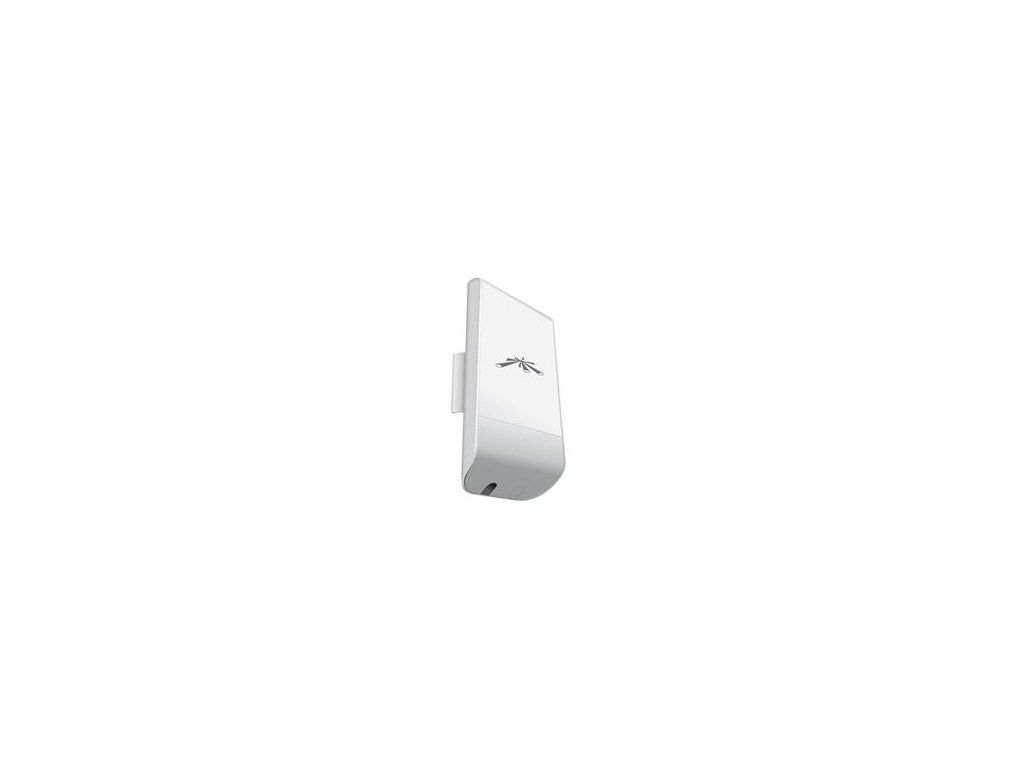

Ubiquiti airMAX NanoStation Loco M5 5GHz 13dBi

Podrobný popis

Low-cost and efficient broadband 5 GHz CPE.

5 GHz frequency band

Cost-effective, high-performance

Plug-and-play integration with airMAX antennas

Technical Specifications

Mechanical

Dimensions 161 x 31 x 80 mm (6.3 x 1.2 x 3.2")

Weight 180 g (6.4 oz)

Enclosure material Outdoor UV-stabilized plastic

Mounting Pole-mount (Kit included)

Hardware

Networking interface (1) 10/100 MbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply 24V, 0.5A PoE adapter (Included)

Supported voltage range 22–27V DC

Max. power consumption 5.5W

Ambient operating temperature -30 to 75° C (-22 to 167° F)

Ambient operating humidity 5 to 95% noncondensing

Shock & vibration ETSI300-019-1.4

Certifications FCC, IC, CE, RoHS

System

Frequency 5 GHz

Operating frequency
Worldwide
US
USA DFS
5170-5875 MHz
5725-5850 MHz
5250-5850 MHz

Gain 13 dBi

Cross-pol isolation 20 dB Min.

Max. VSWR 1.4:1

Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

Polarization Dual linear
